Stocked in North York, ON
HD-30151.18 × 43.31 × 5.91 in (1300 × 1100 × 150 mm)

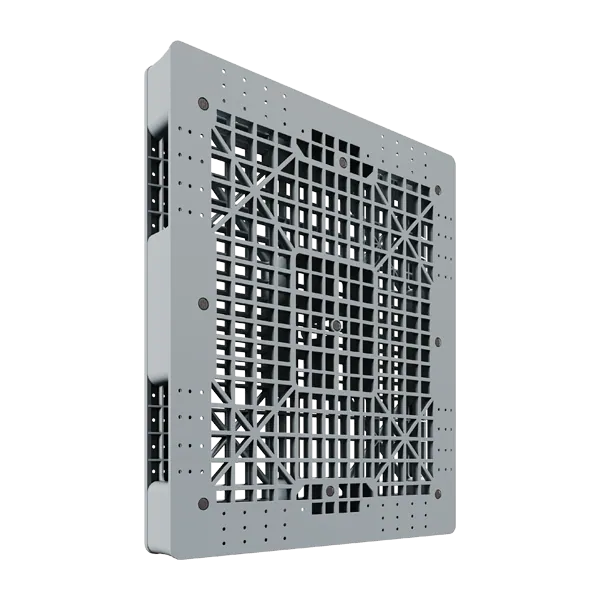

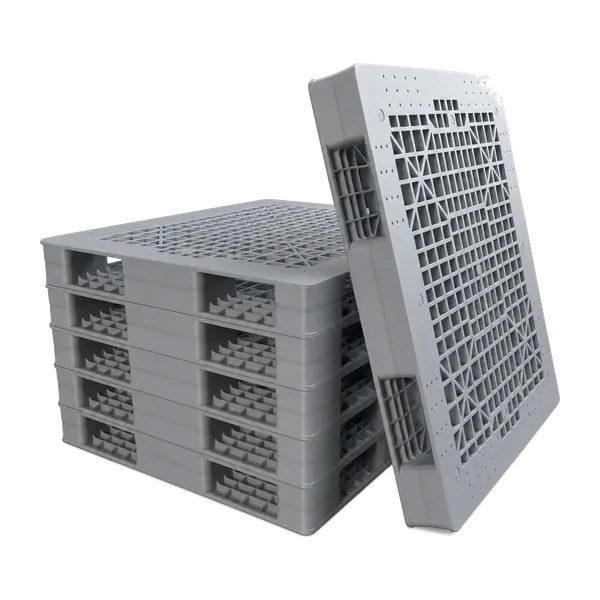

The HD-301 is the top of the 51×43 range and the only reversible pallet in the catalogue. Two identical grid faces are welded together into one part, so there is no top and no bottom: either face carries the load.

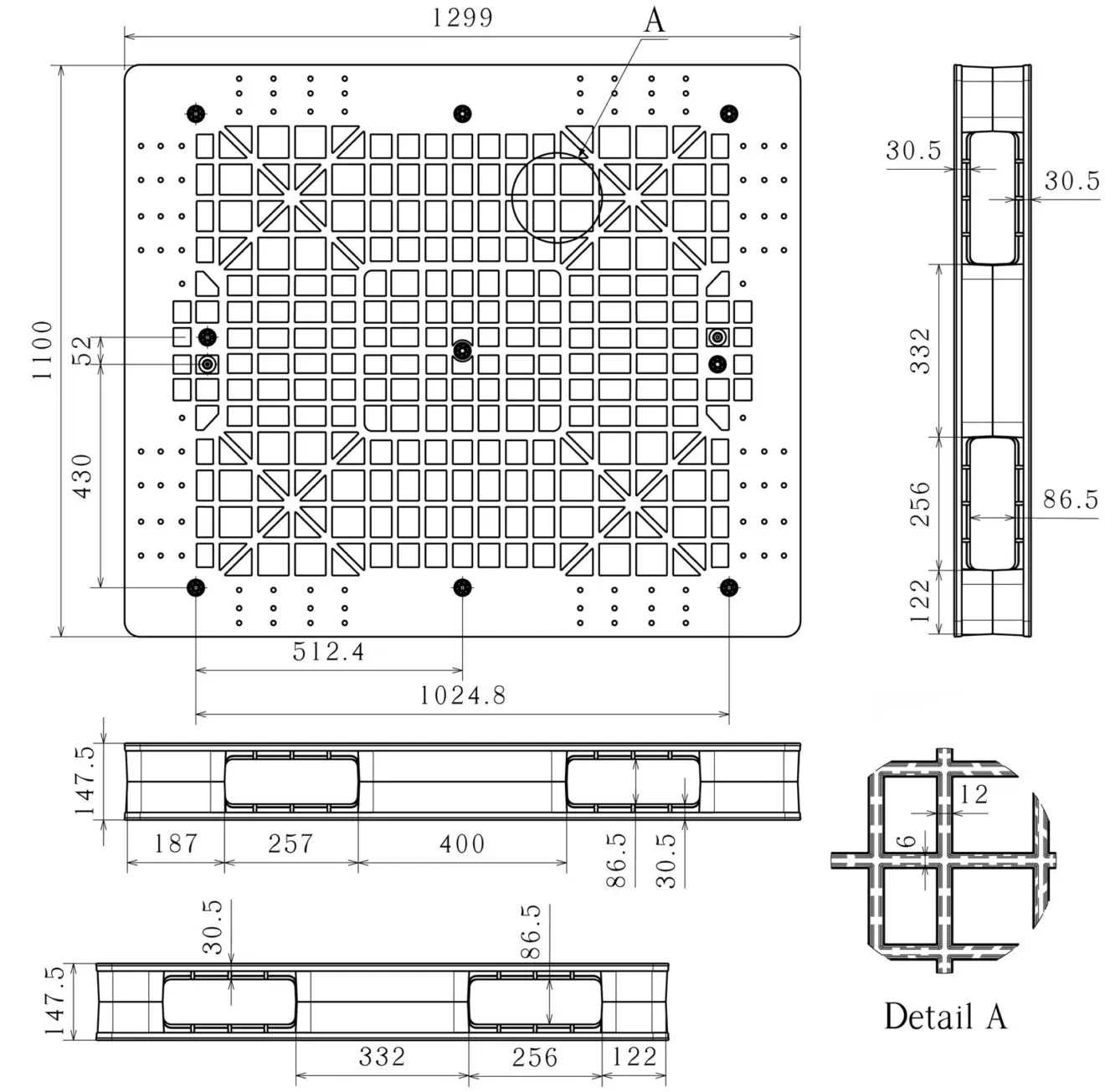

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 51.18 × 43.31 × 5.91 in (1300 × 1100 × 150 mm) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 13,228 lb (6,000 kg) |
| Dynamic Load | 3,968 lb (1,800 kg) |
| Racking Load | 2,646 lb (1,200 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Deck Type | Open |
| Bottom Type | Reversible |
| Construction | Two pieces, welded together |
| Surface Finish | Anti-slip plugs |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Humidity, environmental pollutants, chemical acids and corrosives |
| Handling and freight | |
| Net Weight | 60.63 lb (27.5 ± 0.5 kg) |
| Handling | Hand pallet truck, forklift, reach truck |
| Fork Entry | Long side 257 × 86.5 mm · short side 256 × 86.5 mm |
| Truck Load | 374 pcs per jumbo trailer |
| Container Load (40 HC) | 320 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed or embossed |
| Logo Insert Areas | Long side corners 135 × 55 mm |
| RFID | Transponder integration available |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
19 models ranked by racking load.
28 models ranked by net weight.
A conventional pallet wears on one deck and gets scrapped with the other still good. This one is turned over and put back into service, which is the whole argument for it in a closed-loop or multi-use operation. It also removes an orientation error from automated handling, because there is no wrong way up.
the HD-363
Racking is where the gap really opens. 1,200 kg on beams is a working rating for full pallet loads, where the lighter builds in this family are limited to 300 kg. Every figure still assumes an evenly distributed load and falls with a concentrated or point load.
It is moulded as two pieces welded together, which is the reason for both the strength and the weight.
Four-way, two openings a side, through the perimeter frame:
Dimensions carry a ±5 mm production tolerance.
High-density polyethylene, resistant to humidity, airborne environmental pollutants, and chemical acids and corrosives. Serviceable from −4 °F to +104 °F (−20 to +40 °C). Supplied in grey, white, navy or blue, with other colours to order. It carries anti-slip plugs, and it handles with a hand pallet truck, forklift or reach truck.
Logo printed or embossed, at one position only, and RFID transponders can be integrated for pool tracking.
No insert is offered on the short side or the centre, and this build carries no safety rim option.
374 per jumbo trailer and 320 per 40 ft high-cube container, the same as every other build in the family despite the extra mass, because the envelope is unchanged.
In this film
Answered from the HD-301’s published specification. Anything else, ask on the quotation and it is answered in writing.
13,228 lb (6,000 kg) static and 3,968 lb (1,800 kg) dynamic, with 2,646 lb (1,200 kg) in racking. Ratings assume an evenly distributed load.
It carries a published racking load of 2,646 lb (1,200 kg).
51.18 × 43.31 × 5.91 in (1300 × 1100 × 150 mm). Dimensional tolerance ± 5 mm.
60.63 lb (27.5 ± 0.5 kg) net.
Reversible base under a open deck. Entry: Long side 257 × 86.5 mm · short side 256 × 86.5 mm. Handled by hand pallet truck, forklift, reach truck.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives.
374 pcs per jumbo trailer. 320 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed or embossed. Insert areas: Long side corners 135 × 55 mm. RFID: transponder integration available.
Yes. The HD-301 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
