Six builds
Two runner builds, open and closed, each available unreinforced or with four or six reinforcement profiles. All six share the 1200 × 800 footprint, the open deck and 11,023 lb static.

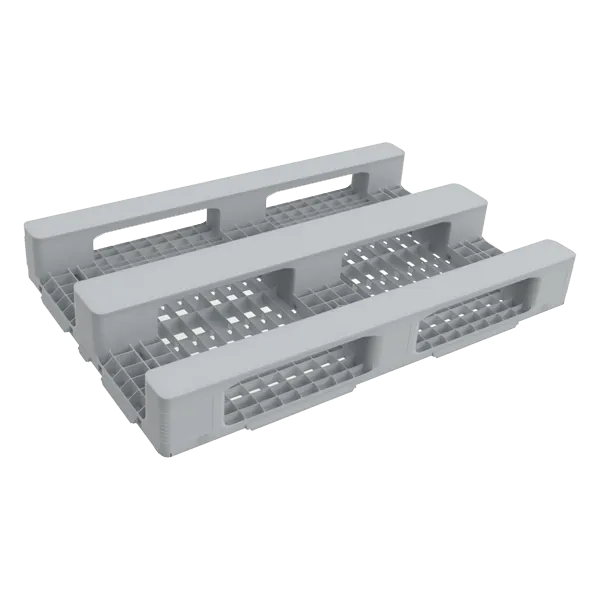

- EP-234 26.90 lb, 2,205 lb dynamic, 882 lb racking.

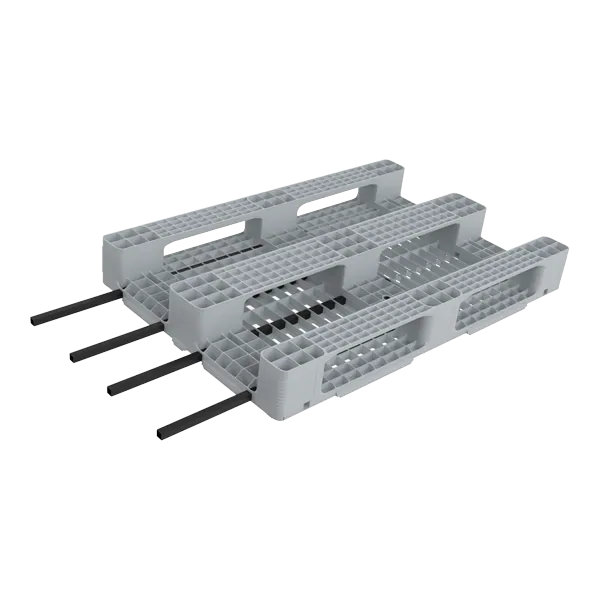

- EP-234-4P 36.82 lb, 2,756 lb dynamic, 2,205 lb racking.

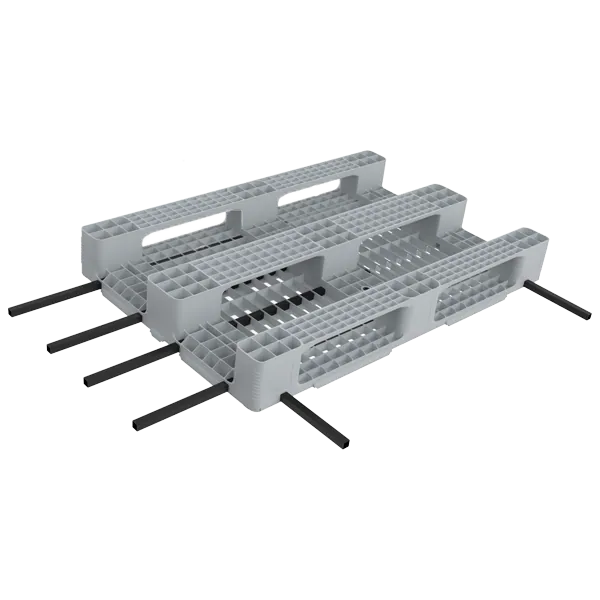

- EP-234-6P 41.23 lb, 2,756 lb dynamic, 2,756 lb racking.
- EP-234-CR 29.98 lb, 2,205 lb dynamic, 882 lb racking. Closed runners.

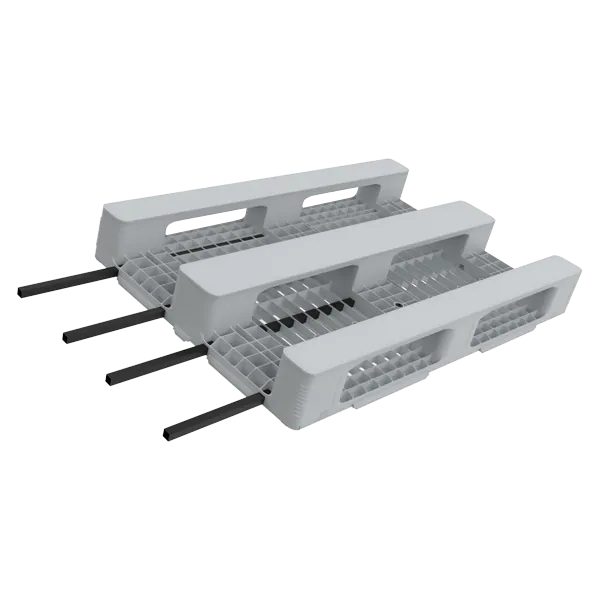

- EP-234-CR-4P 39.90 lb, 2,756 lb dynamic, 2,205 lb racking. Closed runners.
- EP-234-CR-6P 44.31 lb, 2,756 lb dynamic, 2,756 lb racking. Closed runners.

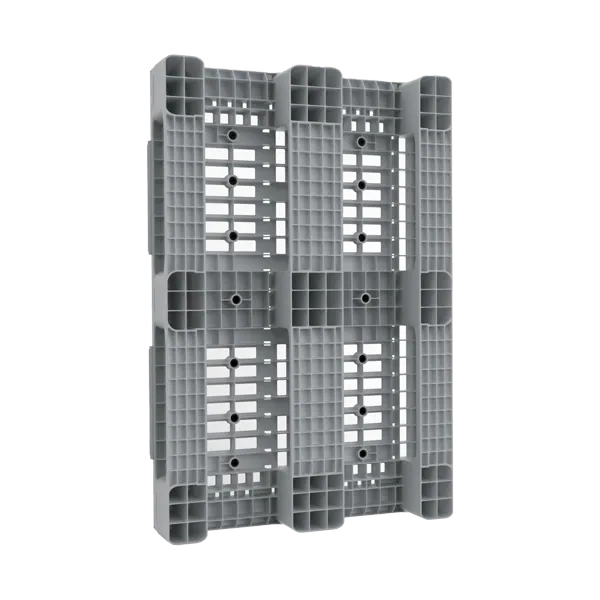

The closed-runner builds enclose the three runners completely, which runs more smoothly on roller conveyors, keeps the base easier to clean and collects less dust. They stand 145 mm tall against 143 mm.

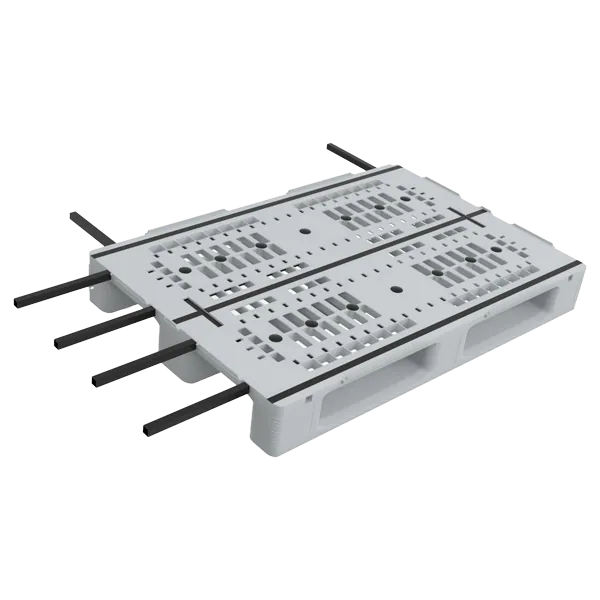

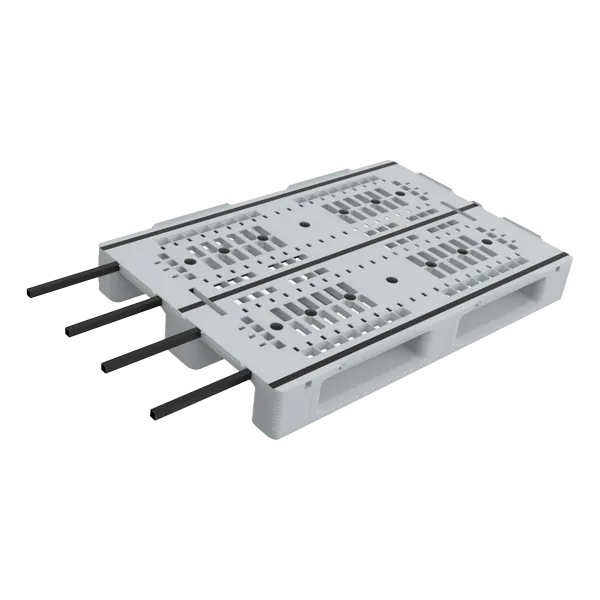

Reinforcement buys racking capacity: four profiles take it from 882 lb to 2,205 lb, six to 2,756 lb, a ×3.1 gain for about 14 lb of added weight. Where pallets sit on beams rather than on the floor, that is the specification that decides the build.
