47×31 Nestable Pallet, Open Deck, 3-Runner

It is the same tool family as the NP-132, narrowed. What changes:

• Footprint: 47.24 × 31.50 in, against 47.24 × 39.37 in
• Net weight: 17.64 lb, against 20.28 lb
• Dynamic load: 2,756 lb, against 3,307 lb
• Per trailer: 1,820, against 1,470, which is what the narrower

deck buys back on freight

Static load, racking load, height, runners, fork entry and safety rims are identical. Take this one when the load or the aisle suits a Euro-width pallet and you want the same base and the same ratings under it.

• Static load 5,512 lb (2,500 kg)
• Dynamic load 2,756 lb (1,250 kg)
• Racking load 882 lb (400 kg)

Every one of those is stated identically by the specification table and the datasheet, with nothing to reconcile. All three assume an evenly distributed load and fall with a concentrated or point load. The 882 lb racking figure is a limit, not a working figure: this is not a beam-racking pallet.

We publish 1,820 per jumbo trailer and 1,410 per 40 ft high-cube, and both carry a condition: those counts are for the pallet with the runners not fitted. Decks travel nested, runners travel loose, and someone clips them on at the far end.

If empties come back to you that is worth a great deal. If they do not, a detachable runner earns you nothing over a fixed one.

Two figures appear on the drawing and in none of the tables, and both are worth having if you are specifying or comparing mouldings:

• Wall thickness 2.5 to 2.6 mm, taken at two points on the moulding

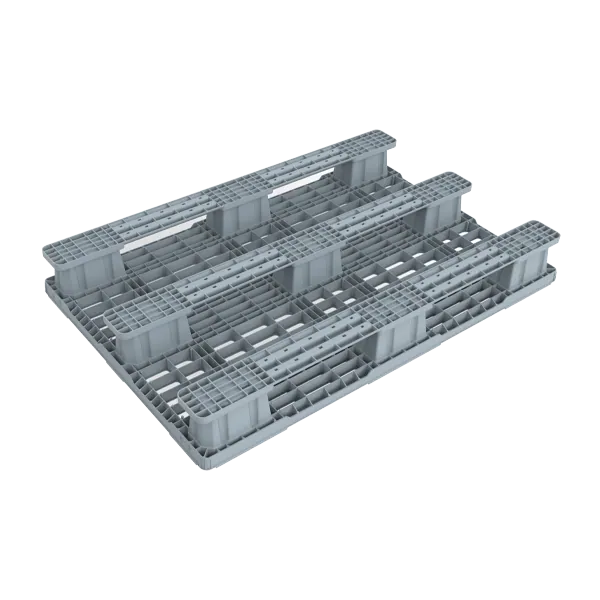

• Runner length 1188 mm, against the 1200 mm deck above it, so the

runners sit inboard of the deck ends

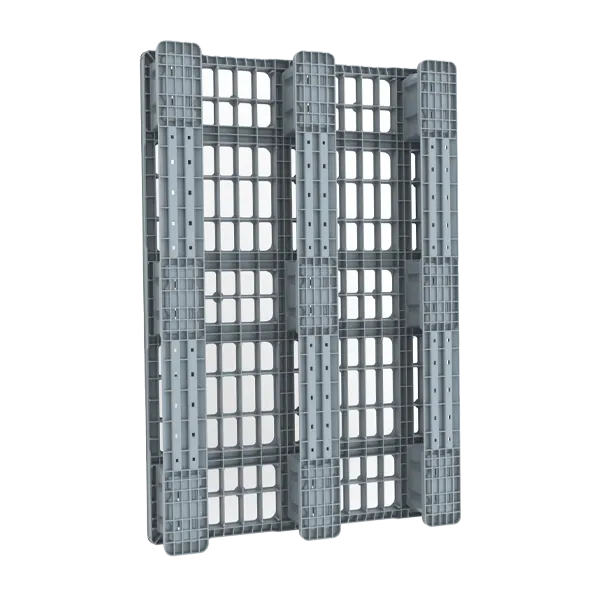

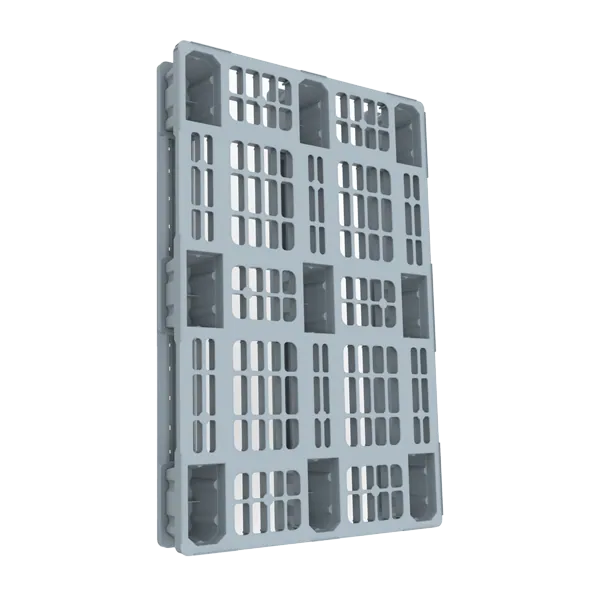

A one-shot moulded deck in high-density polyethylene and polypropylene, single-faced, ventilated so it drains and dries. Entry is four-way. Safety rims, 5 mm, to stop a load creeping on the deck.

It is also maintenance free and hygienic and clean.

Overall height is 5.71 in (145 mm), of which the drawing gives deck 35 mm, leg 90 mm and runner 20 mm. Serviceable from −4 °F to +104 °F (−20 to +40 °C). Supplied in grey, white, navy or blue, with other colours to order. Dimensions carry a ±5 mm production tolerance.

Handled by forklift or hand pallet jack, and it is stackable.

Logo embossed, at two positions, and RFID transponders can be integrated for pool tracking.

• Long side, corner blocks 75 × 25 mm
• Short side, corner blocks 75 × 25 mm

No insert is offered on the centre leg. Printing is sometimes listed as an option for this pallet, but the labelling table marks only embossing, so embossing is what we publish. If you need a printed mark, ask us and we will confirm rather than assume.
