Stocked in North York, ON
FG-13147.24 × 39.37 × 6.30 in (1200 × 1000 × 160 mm)
The FG-131 is the 48×40 food-grade pallet: a welded, entirely closed deck on the larger footprint, and the widest choice of builds in this catalogue at nine configurations.
Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. This product publishes fewer than three views, so the faces none of them show were inferred from the rest of the range. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
Figures for the base build. 9 builds compared in the specification
| Size and load ratings | |
|---|---|
| Size | 47.24 × 39.37 × 6.30 in (1200 × 1000 × 160 mm) |
| As-Moulded Size | 1197 × 997 mm in plan, against the nominal 1200 × 1000 |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 16,535 lb (7,500 kg) |
| Dynamic Load | 3,307 lb (1,500 kg) |
| Racking Load | 2,756 lb (1,250 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Racking Suitability | Racking load published; the five-runner build is rated for racking systems |
| Construction | |
| Deck Type | Closed |
| Bottom Type | 3-Runner |
| Construction | Welded, fully closed deck with inner round corners at R28 |
| Reinforcement Profiles | None |
| Safety Rims | 7 mm |

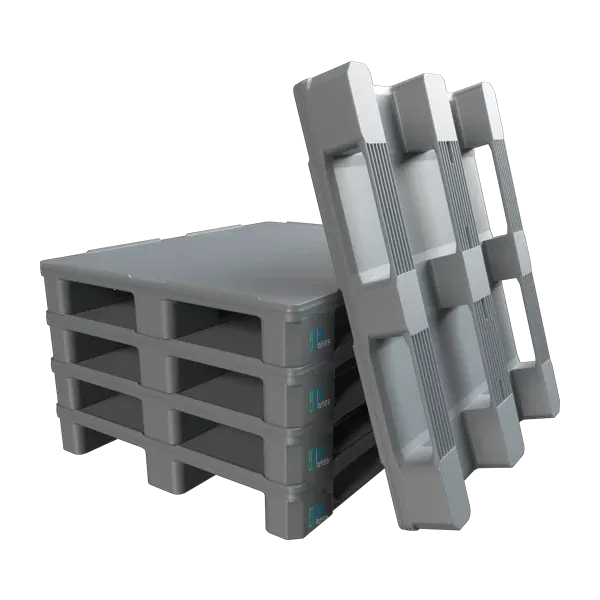

| Stacking | Stackable |
| Material and standards | |
| Material | Food-grade HDPE |
| Temperature Range | −4 to +86 °F (−20 to +30 °C) |
| Handling and freight | |
| Net Weight | 48.50 lb (22 ± 0.5 kg) |
| Handling | Forklift, hand pallet jack |
| Fork Entry | 4-way |
| Truck Load | 520 pcs per jumbo trailer |
| Container Load (40 HC) | 450 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed or embossed |
| Logo Insert Areas | Long side corners 100 × 90 mm · short side corners 100 × 90 mm · centre leg 75 × 85 mm |
| RFID | Transponder integration available |
Three runners, food-grade HDPE selected. SKU FG-131.
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
19 models ranked by racking load.
28 models ranked by net weight.
One design change sets it apart: inner round corners, which give the smoothest passage through automatic conveyor systems and cut the risk of a pallet catching and being damaged. The drawing puts the radius at R28, tighter than the R30 on both 47×31 food-grade pallets, so it is a real change rather than a phrase.
The deck itself is perfectly smooth and flat, which is what stops dirt and dust collecting and what lets it run on rollers.
Everything here comes as three runners or five. The five-runner build is capable of being used in racking systems due to having five runners, and it is the one to ask about if the pallet is going on beams.
Static load is 16,535 lb (7,500 kg) on every one of them. What changes is weight, dynamic and racking:

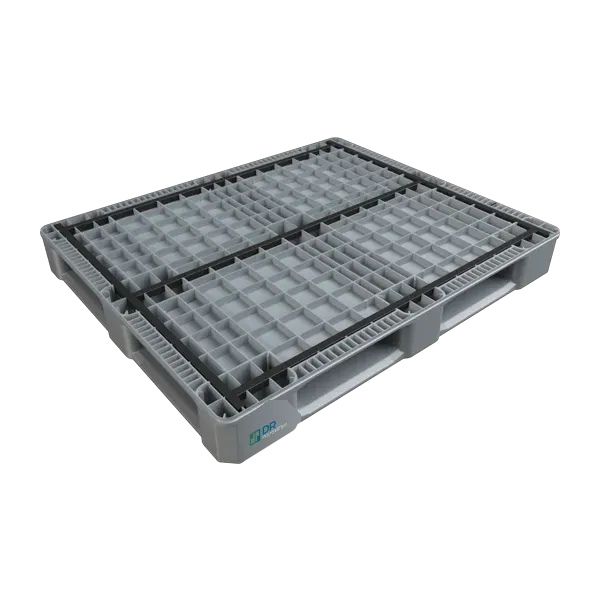

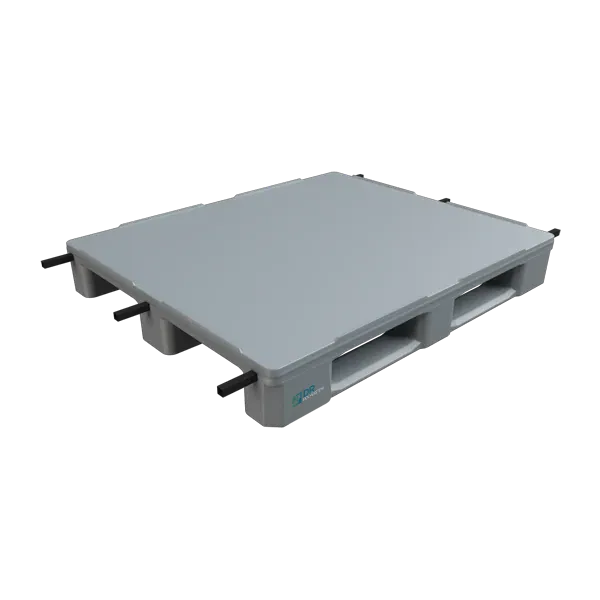

The 4,409 lb racking on the two five-profile builds is the highest racking rating in this catalogue.
All figures assume an evenly distributed load and fall with a concentrated or point load.
Every build, three runners or five, ships 520 per jumbo trailer and 450 per 40 ft high-cube: the envelope is the same, so the load is too. If you are costing a full programme, ask us and we will plan the loads with you.
Made of food-grade polyethylene, with smooth flat surfaces that give dirt and dust nowhere to sit. Suited to food, pharmaceutical logistics and any line where mechanical performance and hygiene both matter.

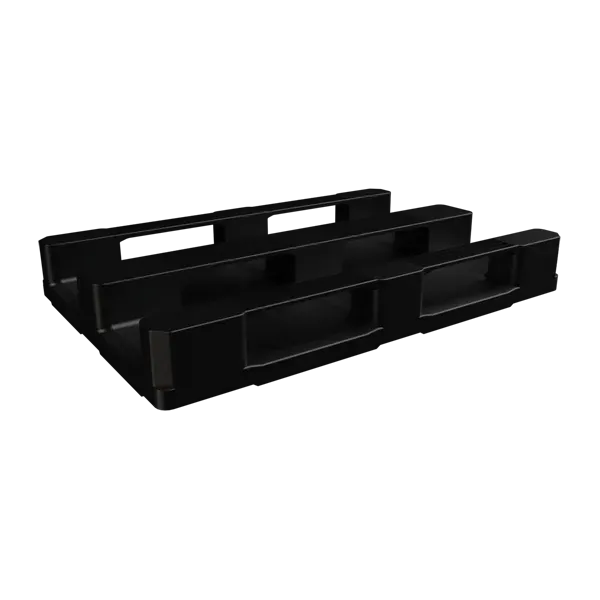

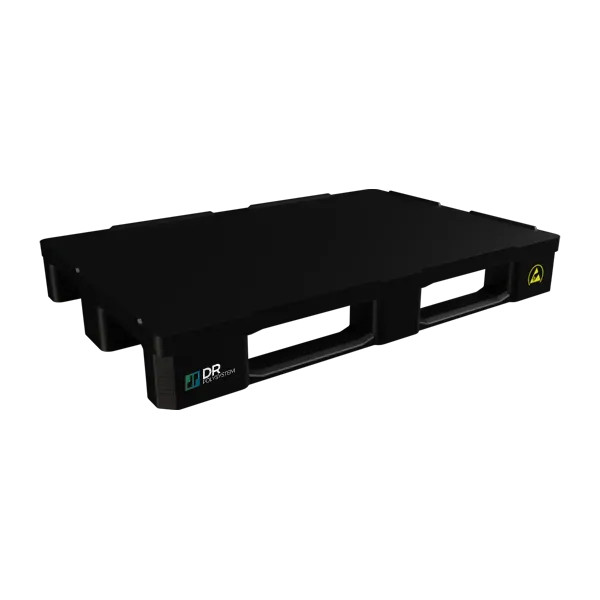

The ESD build is conductive plastic for electronics handling, and the PP builds take +140 °F rather than +86 °F.

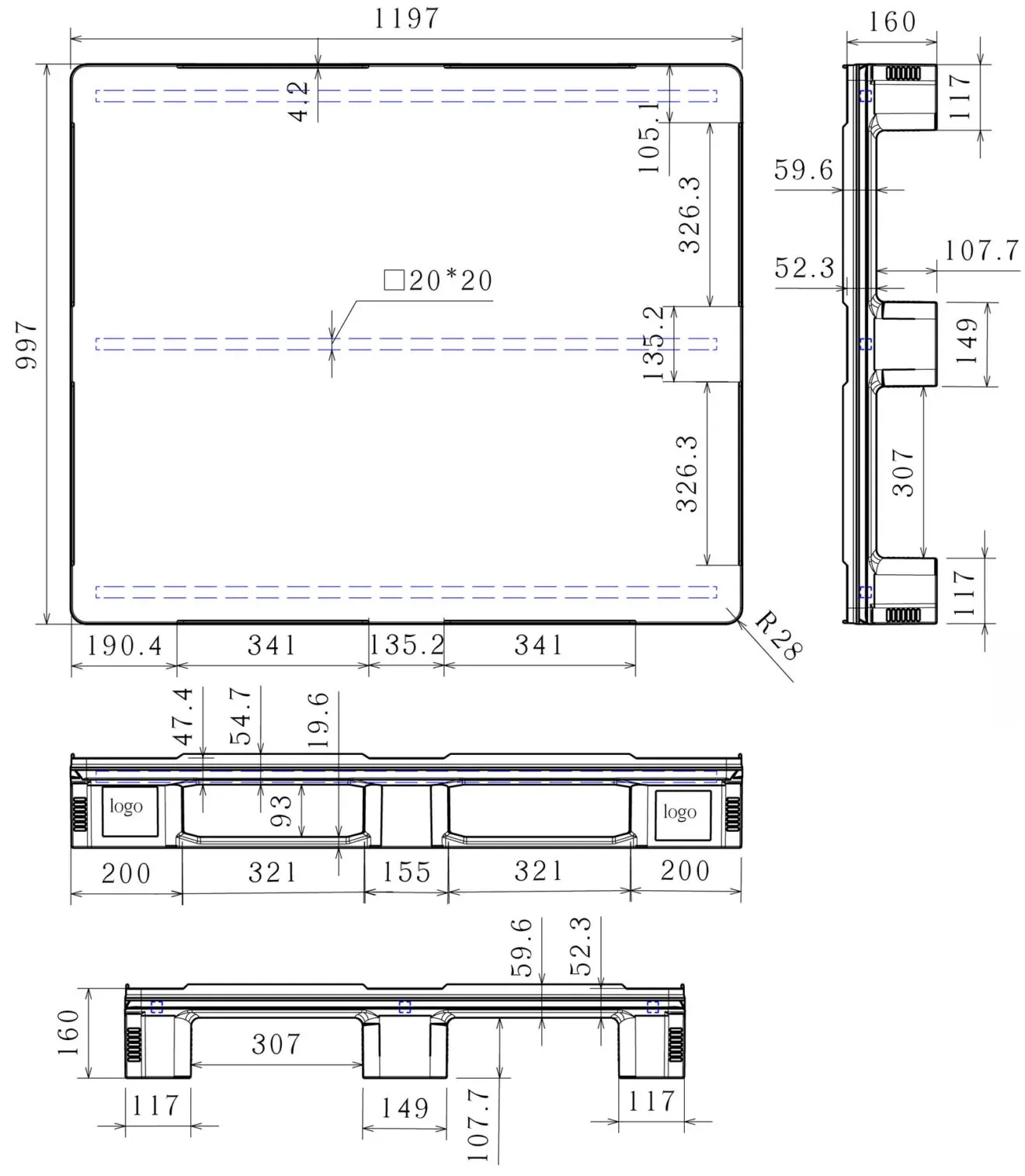

Nominal 47.24 × 39.37 × 6.30 in (1200 × 1000 × 160 mm). The drawing gives the as-moulded plan as 1197 × 997 mm; the height matches nominal.
Safety rims of 7 mm. Entry is four-way. Serviceable from −4 °F to +86 °F (−20 to +30 °C) in HDPE, and −4 °F to +140 °F (−20 to +60 °C) in PP and PP ESD. Supplied in grey, white, navy or blue, with other colours to order. Dimensions carry a ±5 mm production tolerance. Handled by forklift or hand pallet jack, and it stacks.
Logo printed or embossed, at three positions, and RFID transponders can be integrated for pool tracking.
The drawing marks the corner-block panels, agreeing with the labelling table.
In this film
Answered from the FG-131’s published specification. Anything else, ask on the quotation and it is answered in writing.
16,535 lb (7,500 kg) static and 3,307 lb (1,500 kg) dynamic, with 2,756 lb (1,250 kg) in racking. Ratings assume an evenly distributed load.
It carries a published racking load of 2,756 lb (1,250 kg). Racking load published; the five-runner build is rated for racking systems.
47.24 × 39.37 × 6.30 in (1200 × 1000 × 160 mm). As moulded: 1197 × 997 mm in plan, against the nominal 1200 × 1000. Dimensional tolerance ± 5 mm.
48.50 lb (22 ± 0.5 kg) net.

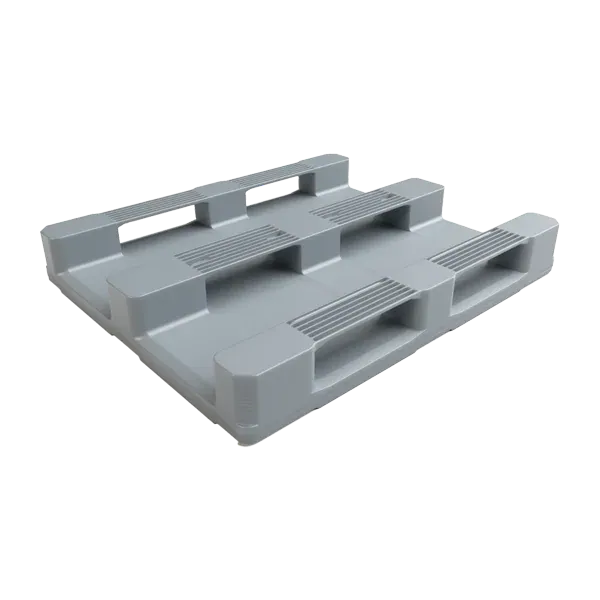

3-Runner base under a closed deck. Entry: 4-way. Handled by forklift, hand pallet jack.
Food-grade HDPE. Rated for −4 to +86 °F (−20 to +30 °C).
520 pcs per jumbo trailer. 450 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed or embossed. Insert areas: Long side corners 100 × 90 mm · short side corners 100 × 90 mm · centre leg 75 × 85 mm. RFID: transponder integration available.
Yes. The FG-131 datasheet is a PDF on this page with the full specification table and the load figures. Each of the 9 builds has its own sheet; choose the build to download the matching one.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
