EP-23247.24 × 31.50 × 6.69 in (1200 × 800 × 170 mm)

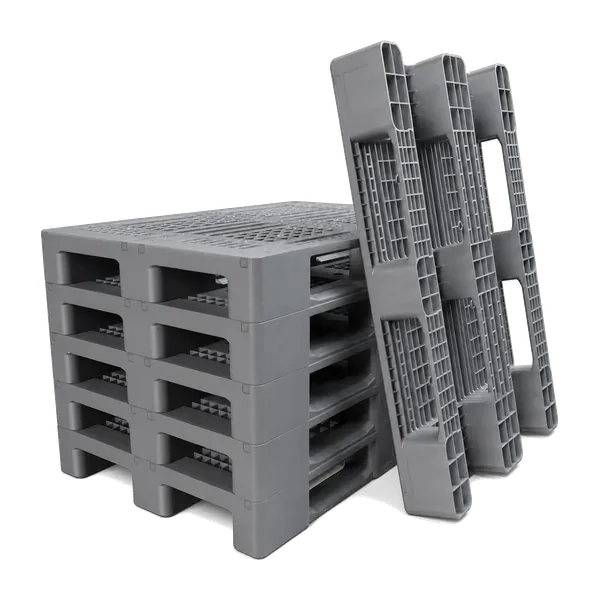

The EP-232 is the deepest section in the Euro range. Same 1200 × 800 mm footprint as the EP-231, but 170 mm deep rather than 150, and built on a cross-braced grid deck instead of a ribbed one.

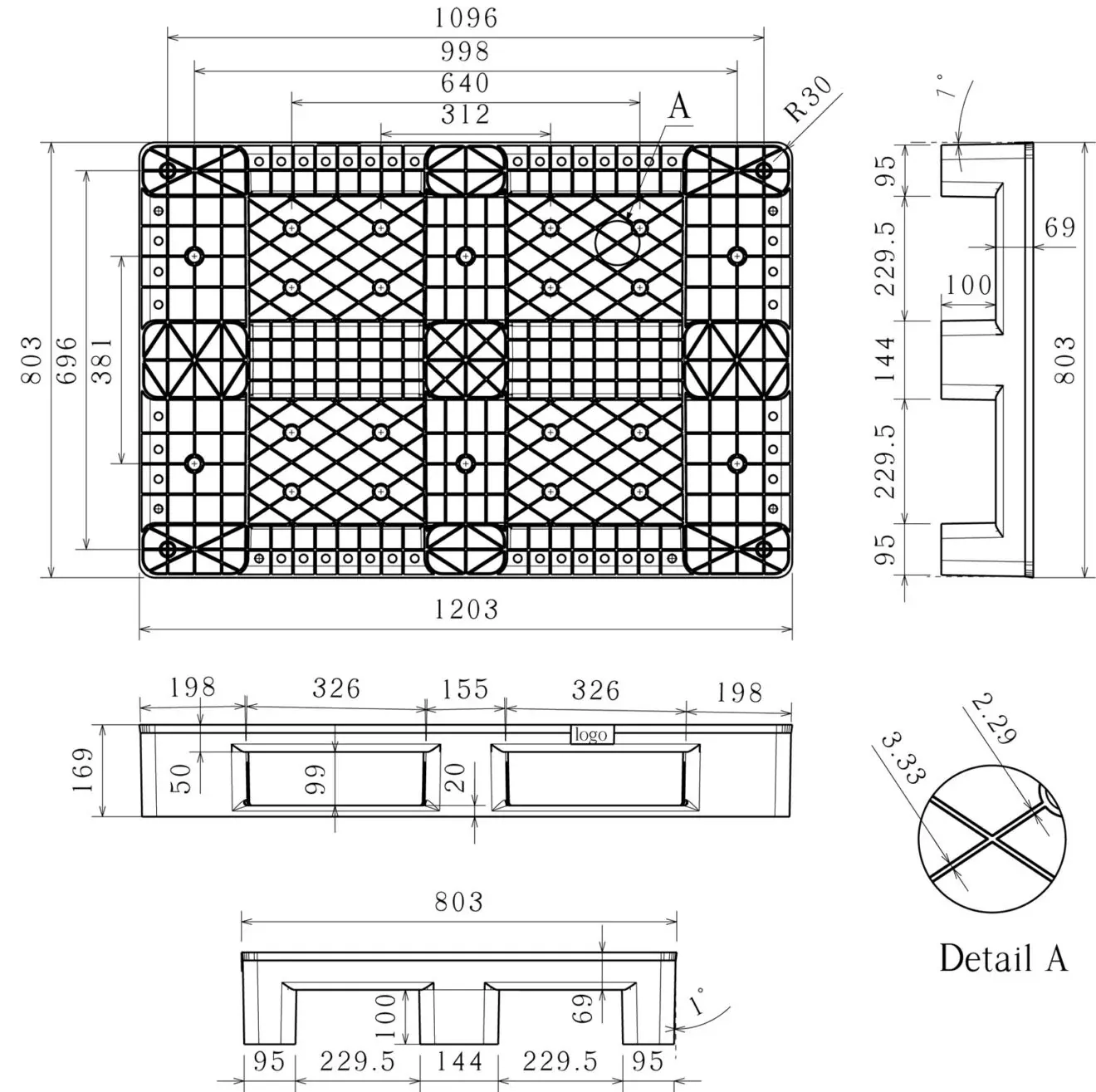

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 47.24 × 31.50 × 6.69 in (1200 × 800 × 170 mm) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 8,818 lb (4,000 kg) |
| Dynamic Load | 2,205 lb (1,000 kg) |
| Racking Load | 1,102 lb (500 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Deck Type | Open |
| Bottom Type | 3-Runner |
| Surface Finish | Anti-slip |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Humidity, environmental pollutants, chemical acids and corrosives |
| Handling and freight | |
| Net Weight | 29.76 lb (13.5 kg) |
| Handling | Hand pallet truck, forklift, reach truck |
| Automation | Suitable for automatic shuttle racking and conveyor systems |
| Truck Load | 580 pcs per jumbo trailer |
| Container Load (40 HC) | 470 pcs |
| Colour and branding | |
| Colour | All standard colours |
| Branding | Printed or embossed |
| Logo Insert Areas | Long side corners 115 × 90 mm · short side corners 90 × 100 mm · centre leg 105 × 65 mm |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
19 models ranked by racking load.
28 models ranked by net weight.
The deck is the point of difference. Long, durable stringers run across it and raise the bearing capacity of the pallet. Racking capacity is 1,102 lb, against 882 lb for the lighter EP-231. It takes 8,818 lb static and 2,205 lb dynamic at a net weight of 29.76 lb.
It is specified for distribution networks and for racking systems. Where loads sit unsupported on beams, the racking figure is the number that governs.

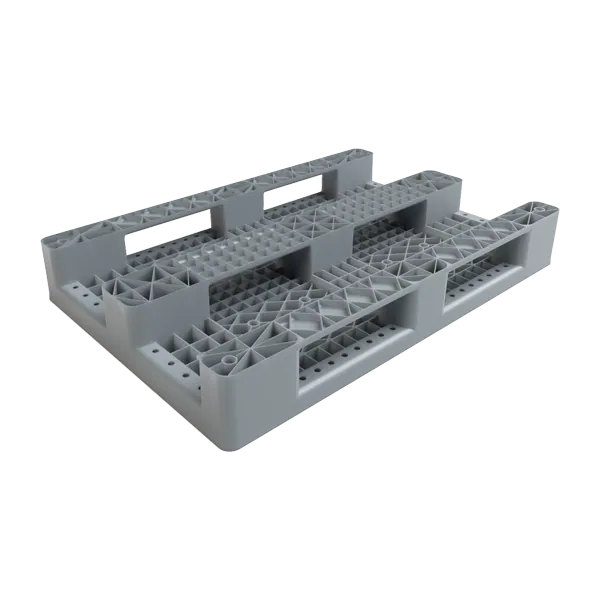

Three integrated full-length runners give a continuous bearing surface, so it runs on automatic shuttle racking and conveyor systems that will not take a nine-leg base. It handles with a hand pallet truck, a forklift or a reach truck, and the deck carries an anti-slip surface.
A single moulding of high-density polyethylene, resistant to humidity, airborne environmental pollutants, and chemical acids and corrosives. Serviceable from −4 °F to +104 °F (−20 to +40 °C), which covers unheated warehousing and chilled distribution alike. Supplied in all standard colours, so pallet pools can be colour-coded by site, customer or line.
Dedicated insert areas take a logo, a tracking identifier or a plant code, moulded straight into the surface. Printed and embossed options are both available.
The deeper section costs some density in transit: 580 pieces per jumbo trailer and 470 per 40 ft high-cube container, against 700 and 550 for the 150 mm build. Worth weighing against the racking gain if freight is the larger line in your costing.
In this film
Answered from the EP-232’s published specification. Anything else, ask on the quotation and it is answered in writing.
8,818 lb (4,000 kg) static and 2,205 lb (1,000 kg) dynamic, with 1,102 lb (500 kg) in racking. Ratings assume an evenly distributed load.
It carries a published racking load of 1,102 lb (500 kg).
47.24 × 31.50 × 6.69 in (1200 × 800 × 170 mm). Dimensional tolerance ± 5 mm.
29.76 lb (13.5 kg) net.
3-Runner base under a open deck. Handled by hand pallet truck, forklift, reach truck.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives.
580 pcs per jumbo trailer. 470 pcs per 40 ft high-cube container.
Colours: All standard colours. Logo: printed or embossed. Insert areas: Long side corners 115 × 90 mm · short side corners 90 × 100 mm · centre leg 105 × 65 mm.
Yes. The EP-232 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
