48×40 Rackable Pallet, Closed Deck, Reinforced

Frequently asked questions

Answered from the RP-133’s published specification. Anything else, ask on the quotation and it is answered in writing.

• How much weight can the 48×40 rackable pallet (RP-133) hold?

  11,023 lb (5,000 kg) static and 2,646 lb (1,200 kg) dynamic, with 1,323 lb (600 kg) in racking. Ratings assume an evenly distributed load.

• Can the 48×40 rackable pallet (RP-133) be used in pallet racking?

  It carries a published racking load of 1,323 lb (600 kg).

• What are the dimensions of the 48×40 rackable pallet (RP-133)?

  47.24 × 39.37 × 6.18 in (1200 × 1000 × 157 mm). Dimensional tolerance ± 5 mm.

• How much does the 48×40 rackable pallet (RP-133) weigh?

  34.17 lb (15.5 ± 0.5 kg) net.

• What kind of base does the 48×40 rackable pallet (RP-133) have?

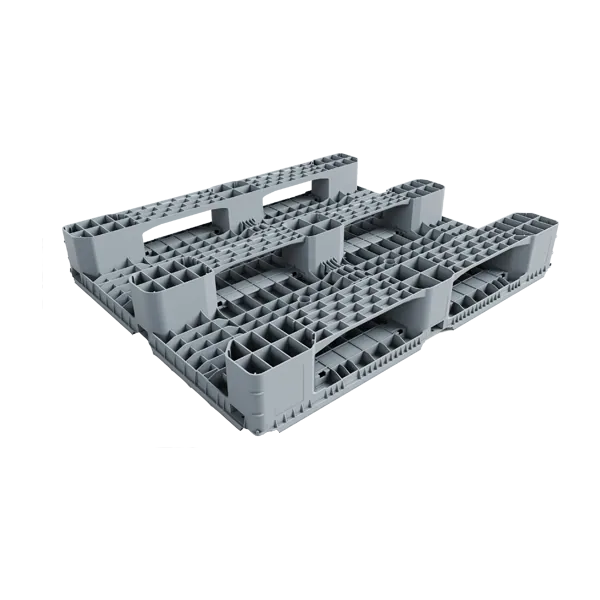

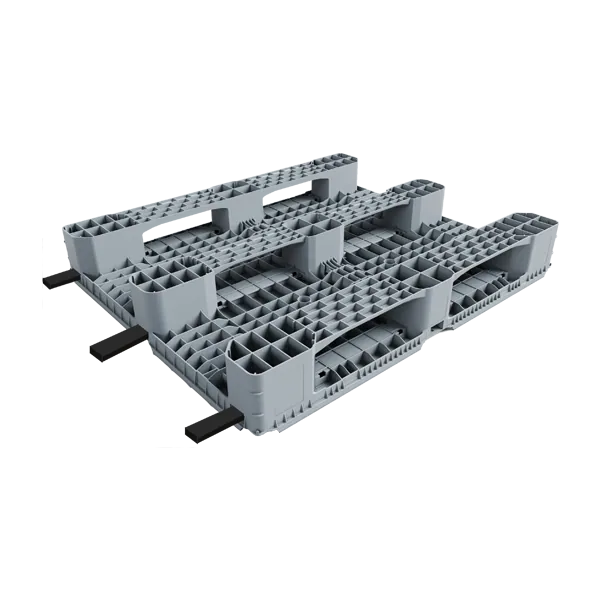

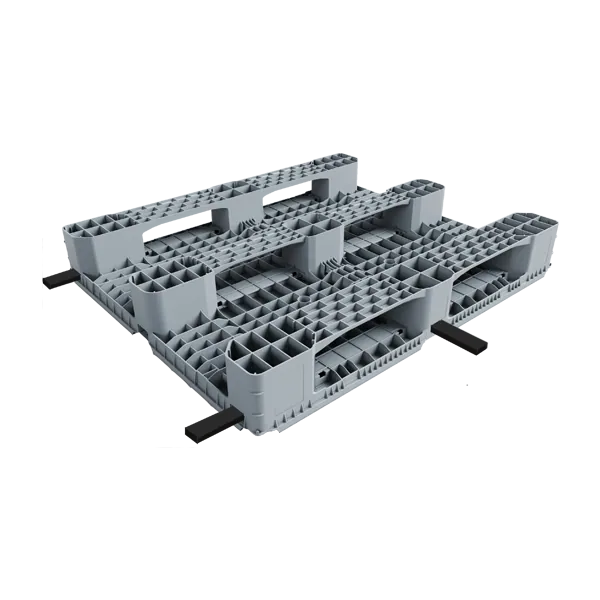

  3-Runner base under a closed deck. Handled by hand pallet truck, forklift, reach truck.

• What is the 48×40 rackable pallet (RP-133) made of?

  HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives.

• How many 48×40 rackable pallet (RP-133) fit on a truck or in a container?

  496 pcs per jumbo trailer. 364 pcs per 40 ft high-cube container.

• Can the 48×40 rackable pallet (RP-133) be supplied in our colour, with our logo?

  Colours: All standard colours. Logo: printed or embossed. Insert areas: Long side corners 80 × 100 mm · centre leg 65 × 55 mm.

• Is there a datasheet for the 48×40 rackable pallet (RP-133)?

  Yes. The RP-133 datasheet is a PDF on this page with the full specification table and the load figures. Each of the 6 builds has its own sheet; choose the build to download the matching one.

• How much does the 48×40 rackable pallet (RP-133) cost?

  Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
