HD-36151.18 × 43.31 × 5.91 in (1300 × 1100 × 150 mm)
The HD-361 is the largest footprint DR Polysystems stocks, 1300 × 1100 mm, and the only 51×43 pallet in the range. It was built for petrochemical and chemical plant duty: drums, bagged resin and lined IBCs moving between filling lines, warehouse and container without a change of pallet.
Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 51.18 × 43.31 × 5.91 in (1300 × 1100 × 150 mm) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 11,023 lb (5,000 kg) |
| Dynamic Load | 2,756 lb (1,250 kg) |
| Racking Load | 661 lb (300 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Deck Type | Open |
| Bottom Type | 6-Runner |
| Surface Finish | Anti-slip rubber |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Humidity, environmental pollutants, chemical acids and corrosives |
| Handling and freight | |
| Net Weight | 31.97 lb (14.5 ± 0.5 kg) |
| Handling | Hand pallet truck, forklift, reach truck |
| Fork Entry | Long side 280 × 90 mm · short side 250 × 90 mm |
| Automation | Conveyor systems; rack-compatible on its connected runners |
| Truck Load | 374 pcs per jumbo trailer |
| Container Load (40 HC) | 320 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed or embossed |
| Logo Insert Areas | Short side corners 150 × 120 mm · centre leg 150 × 80 mm |
| RFID | Transponder integration available |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
19 models ranked by racking load.
28 models ranked by net weight.

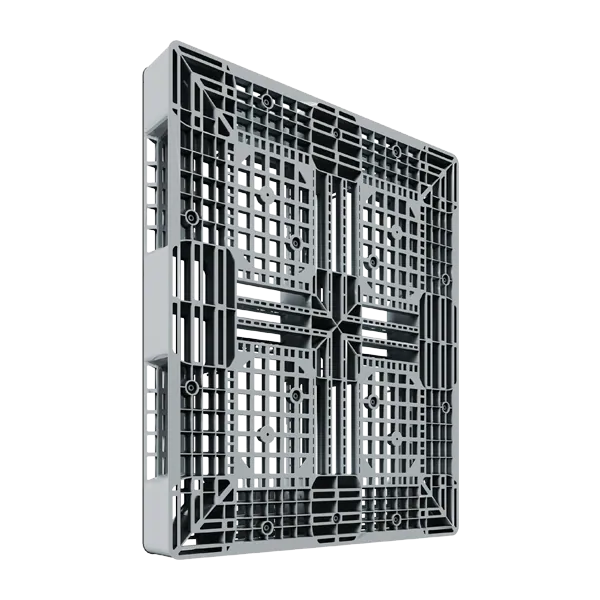

Nine blocks joined by a connected six-runner grid, three runners in each direction rather than three bars in one. That gives a continuous bearing surface across the underside both ways, which is what lets it run on a conveyor in either orientation instead of only along its stringers.
It takes 11,023 lb static and 2,756 lb dynamic at a net weight of 31.97 lb, so it holds five tonnes standing while staying light enough for one person to move by hand.
The connected base is rack-compatible: six joined runners give the continuous bearing surface a beam needs, which is exactly why the base is built this way. What it does not give is capacity. Racking load is 661 lb (300 kg), against 11,023 lb standing on the floor.
So use it in racking with a light load, and if a full pallet has to sit unsupported on beams, specify from the rackable range instead, where the same 11,023 lb static rating comes with 1,323 lb of racking capacity.
Every load rating here assumes an evenly distributed load, and falls with a concentrated or point load.
The engineering drawing dimensions openings on both elevations, so forks enter from all four sides, two openings a side:
Dimensions carry a ±5 mm production tolerance, as moulded parts of this size do.
High-density polyethylene, resistant to humidity, airborne environmental pollutants, and chemical acids and corrosives, which is the property that earns it a place on a petrochemical site. Serviceable from −4 °F to +104 °F (−20 to +40 °C). Supplied in grey, white, navy or blue, with other colours to order, so a pallet pool can be colour-coded by site, customer or line. Anti-slip rubber, and handled by hand pallet truck, forklift or reach truck.
Logo printed or embossed, at two positions, and RFID transponders can be integrated for pool tracking.
No insert is offered on the long-side corner blocks, and this build carries no safety rim option.
374 per jumbo trailer and 320 per 40 ft high-cube container.
In this film
Answered from the HD-361’s published specification. Anything else, ask on the quotation and it is answered in writing.
11,023 lb (5,000 kg) static and 2,756 lb (1,250 kg) dynamic, with 661 lb (300 kg) in racking. Ratings assume an evenly distributed load.
It carries a published racking load of 661 lb (300 kg).
51.18 × 43.31 × 5.91 in (1300 × 1100 × 150 mm). Dimensional tolerance ± 5 mm.
31.97 lb (14.5 ± 0.5 kg) net.
6-Runner base under a open deck. Entry: Long side 280 × 90 mm · short side 250 × 90 mm. Handled by hand pallet truck, forklift, reach truck.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives.
374 pcs per jumbo trailer. 320 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed or embossed. Insert areas: Short side corners 150 × 120 mm · centre leg 150 × 80 mm. RFID: transponder integration available.
Yes. The HD-361 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
