Stocked in North York, ON
NP-13147.24 × 39.37 × 6.10 in (1200 × 1000 × 155 mm)

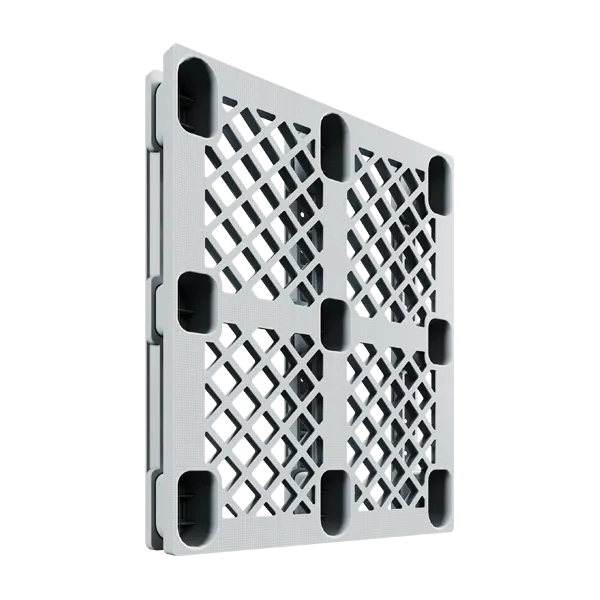

The NP-131 is a lightweight nestable pallet: a 48×40 footprint, a ventilated diamond-lattice deck, and nine tapered feet joined by three full-length runners. At 19.84 lb it is the lightest 48×40 here with runners under it. The nine-leg builds in the range are lighter still.

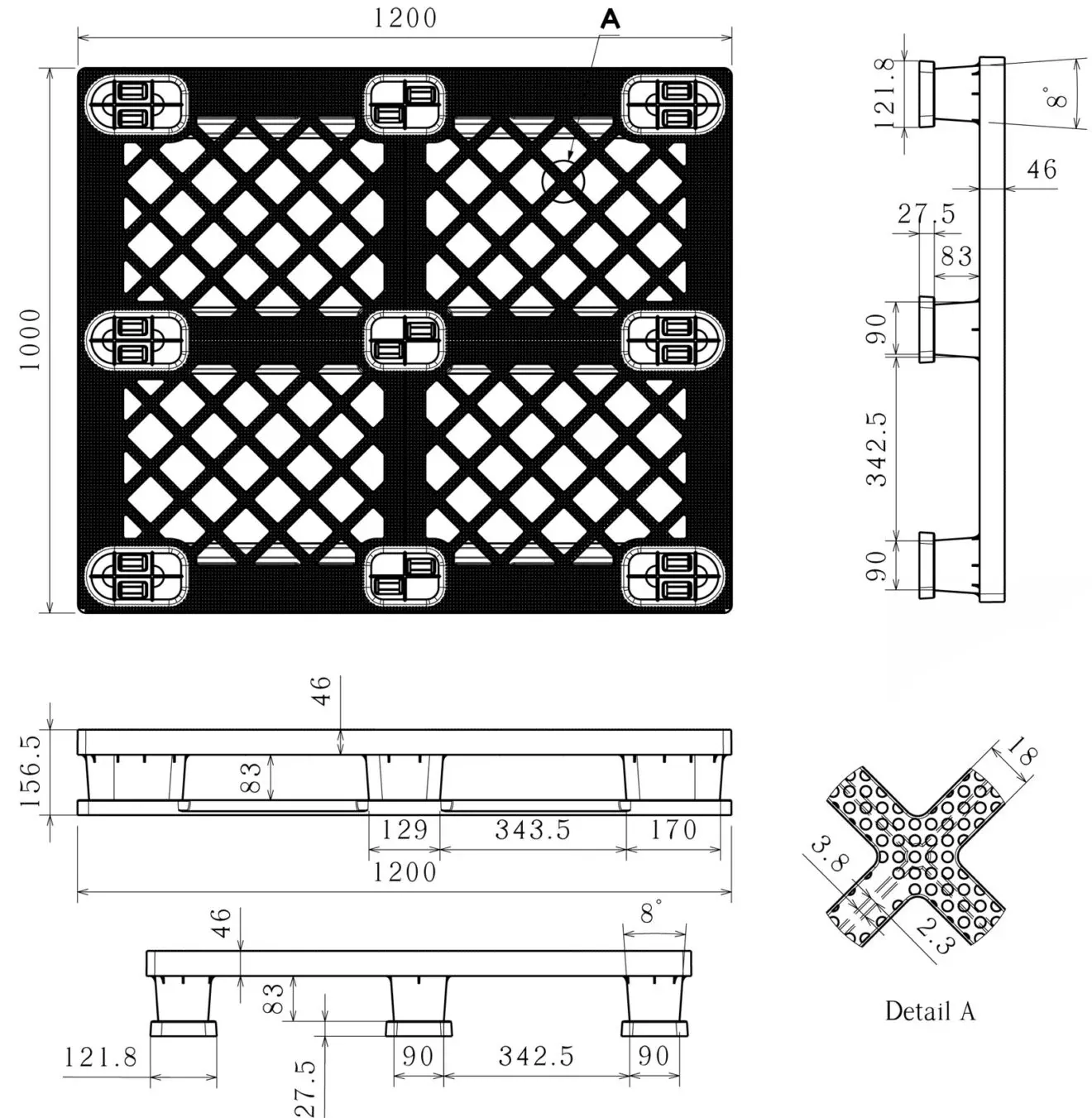

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 47.24 × 39.37 × 6.10 in (1200 × 1000 × 155 mm) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 4,409 lb (2,000 kg) |
| Dynamic Load | 2,205 lb (1,000 kg) |
| Racking Load | 661 lb (300 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Deck Type | Open |
| Bottom Type | 3-Runner |
| Construction | One-shot moulding, single-faced |
| Nesting | Nestable, nine feet seat into nine deck cups |
| Stacking | Stackable |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Handling and freight | |
| Net Weight | 19.84 lb (9 ± 0.5 kg) |
| Handling | Forklift, hand pallet jack |
| Fork Entry | 4-way |
| Truck Load | 550 pcs per jumbo trailer |
| Container Load (40 HC) | 500 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed or embossed |
| Logo Insert Areas | Long side corners 250 × 60 mm |
| RFID | Transponder integration available |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
19 models ranked by racking load.
28 models ranked by net weight.

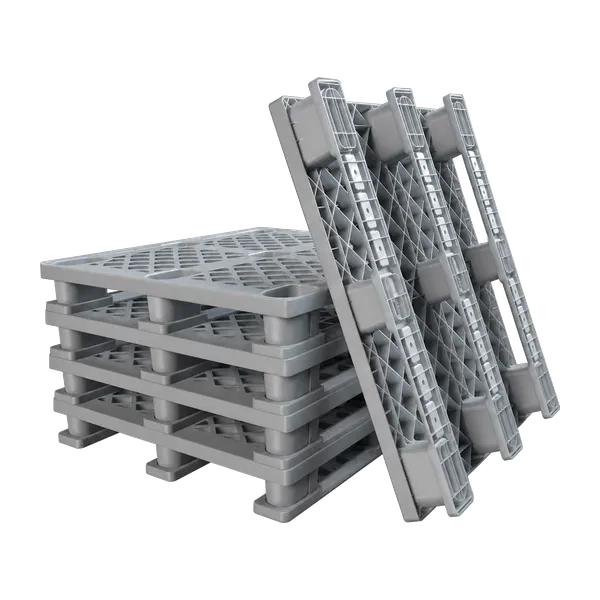

Empty, the feet drop into nine cups moulded into the deck of the pallet below, so a column of empties stands far shorter than the same number stacked flat.

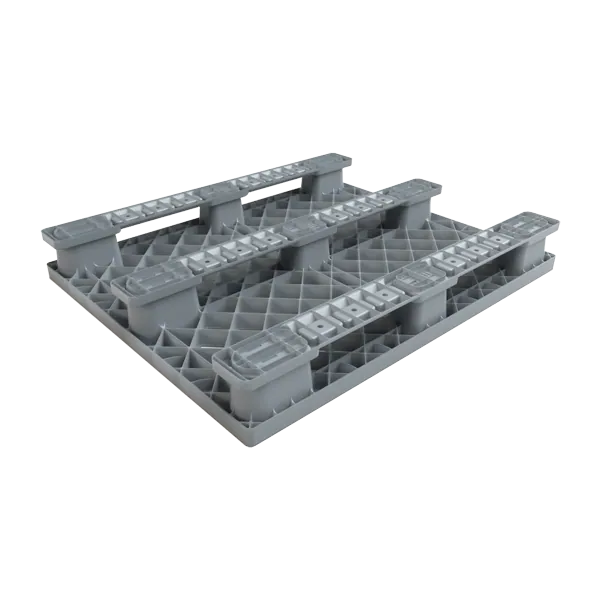

The three runners are what make it work loaded. They give a continuous bearing surface along the length, so a hand pallet jack rolls under it rather than having to straddle a bare foot. Entry is four-way.
The published loading quantities are 550 per jumbo trailer and 500 per 40 ft high-cube container. Those are ordinary figures for a 48×40: the nine-leg RP-191 in this catalogue does 650 and 550 without nesting at all. So they read as counts for the pallet as shipped, not for nested empties, and the nesting saving is not in them.
If return freight on empties is what decides this purchase, ask us for the nested figure and we will confirm it rather than infer it.
This is a light-goods export and production pallet, not a racking pallet. The 661 lb racking figure says so plainly. What it is unusually good at is bulky but light loads: the deck area is full 48×40 while the pallet itself is under 20 lb, so it carries volume cheaply and is easy enough for one person on a production line to move by hand when empty.
All three ratings assume an evenly distributed load and fall with a concentrated or point load.
A one-shot moulding in high-density polyethylene, single-faced, with a ventilated deck that drains and dries. Serviceable from −4 °F to +104 °F (−20 to +40 °C). Supplied in grey, white, navy or blue, with other colours to order. Dimensions carry a ±5 mm production tolerance.
Handled by forklift or hand pallet jack, and it is stackable.
Logo printed or embossed, at one position, and RFID transponders can be integrated for pool tracking.
No insert is offered on the short side or the centre, and this build carries no safety rim option.
In this film
Answered from the NP-131’s published specification. Anything else, ask on the quotation and it is answered in writing.
4,409 lb (2,000 kg) static and 2,205 lb (1,000 kg) dynamic, with 661 lb (300 kg) in racking. Ratings assume an evenly distributed load.
It carries a published racking load of 661 lb (300 kg).
47.24 × 39.37 × 6.10 in (1200 × 1000 × 155 mm). Dimensional tolerance ± 5 mm.
19.84 lb (9 ± 0.5 kg) net.
3-Runner base under a open deck. Entry: 4-way. Nestable, nine feet seat into nine deck cups. Handled by forklift, hand pallet jack.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C).
550 pcs per jumbo trailer. 500 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed or embossed. Insert areas: Long side corners 250 × 60 mm. RFID: transponder integration available.
Yes. The NP-131 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
