48×40 Rackable Pallet, Closed Deck, 9-Leg

Frequently asked questions

Answered from the RP-191’s published specification. Anything else, ask on the quotation and it is answered in writing.

• How much weight can the 48×40 rackable pallet (RP-191) hold?

  11,023 lb (5,000 kg) static and 2,756 lb (1,250 kg) dynamic. Ratings assume an evenly distributed load.

• What are the dimensions of the 48×40 rackable pallet (RP-191)?

  47.24 × 39.37 × 5.51 in (1200 × 1000 × 140 mm). Dimensional tolerance ± 5 mm.

• How much does the 48×40 rackable pallet (RP-191) weigh?

  29.76 lb (13.5 kg) net.

• What kind of base does the 48×40 rackable pallet (RP-191) have?

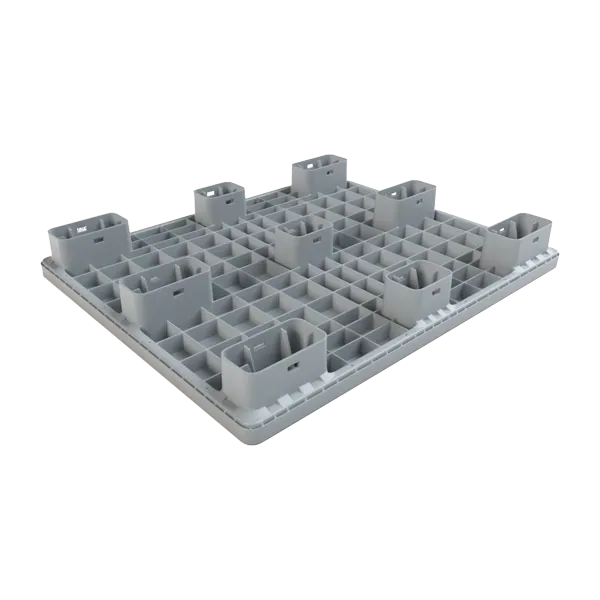

  9-Leg base under a closed deck. Entry: 4-Way pallet jack access. Handled by hand pallet truck, forklift, reach truck.

• What is the 48×40 rackable pallet (RP-191) made of?

  HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives.

• How many 48×40 rackable pallet (RP-191) fit on a truck or in a container?

  650 pcs per jumbo trailer. 550 pcs per 40 ft high-cube container.

• Can the 48×40 rackable pallet (RP-191) be supplied in our colour, with our logo?

  Colours: All standard colours. Logo: printed or embossed. Insert areas: Centre leg 145 × 45 mm.

• Is there a datasheet for the 48×40 rackable pallet (RP-191)?

  Yes. The RP-191 datasheet is a PDF on this page with the full specification table and the load figures.

• How much does the 48×40 rackable pallet (RP-191) cost?

  Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
