NP-46131.50 × 23.62 × 5.31 in (800 × 600 × 135 mm)

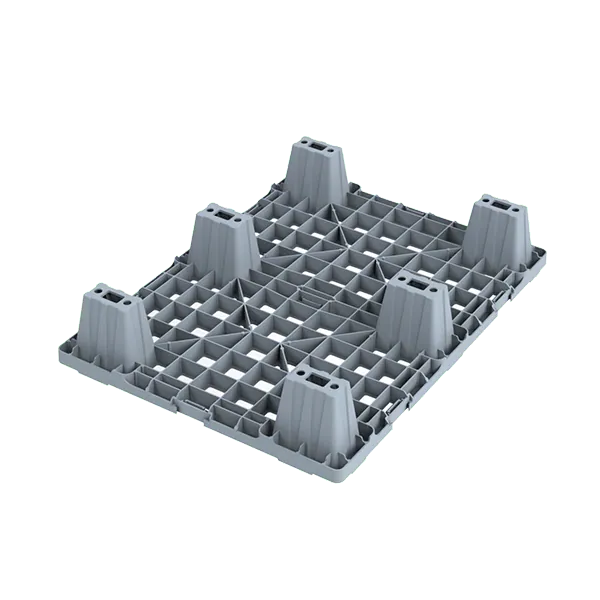

The NP-461 is a nestable display pallet: 800 × 600 mm, an open lattice deck, and six tapered legs that let empty pallets nest into one another instead of stacking flat.

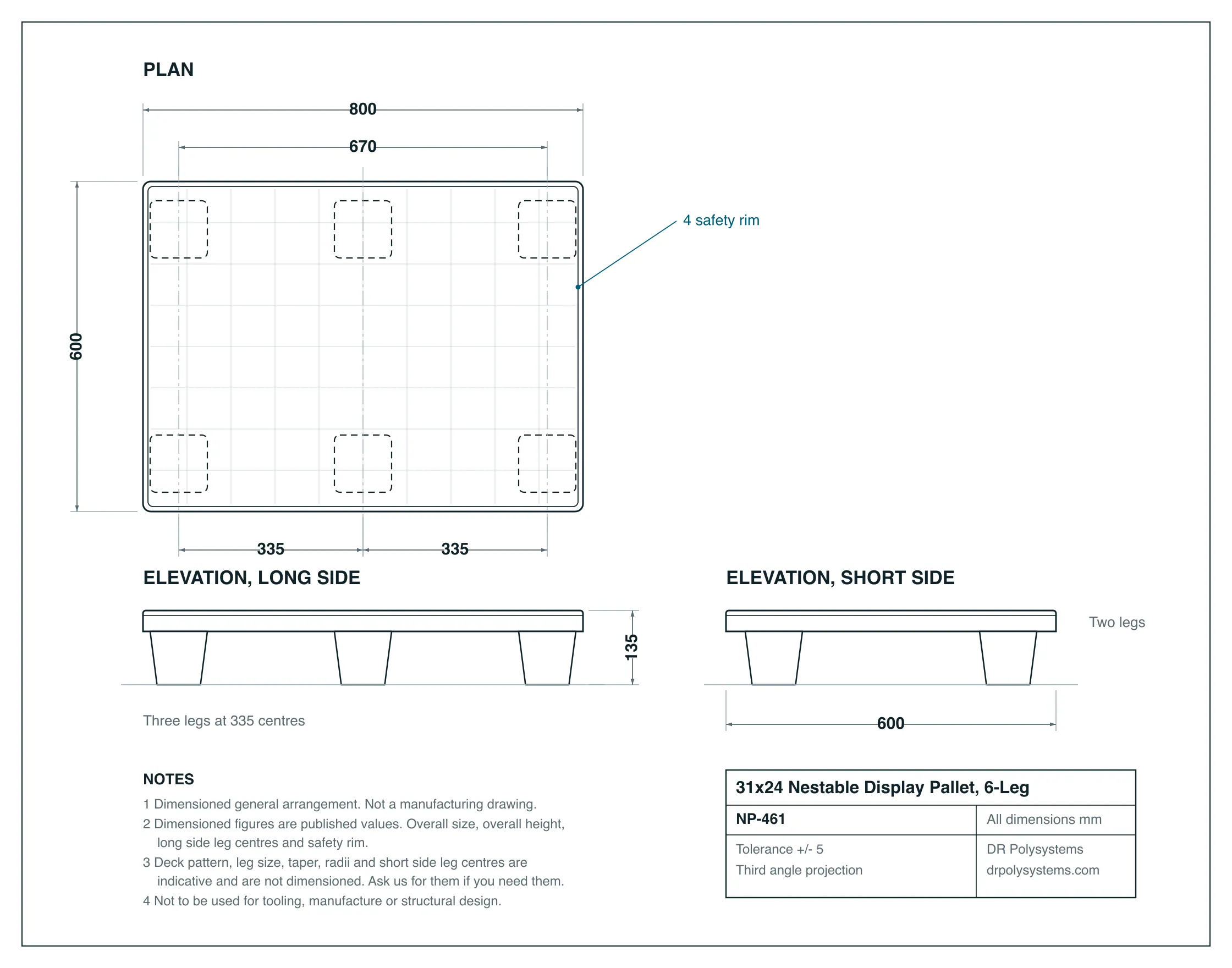

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 31.50 × 23.62 × 5.31 in (800 × 600 × 135 mm) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 1,764 lb (800 kg) |
| Dynamic Load | 882 lb (400 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Deck Type | Open |
| Bottom Type | 6-Leg |
| Safety Rims | 4 mm |
| Nesting | Nestable, empties nest to cut return freight |
| Alignment Grooves | Card board and sleeve grooves moulded into the deck |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Humidity, environmental pollutants, chemical acids and corrosives |
| Handling and freight | |
| Net Weight | 6.39 lb (2.9 ± 0.5 kg) |
| Handling | Hand pallet truck, forklift, reach truck |
| Truck Load | 4,690 pcs per jumbo trailer |
| Container Load (40 HC) | 3,690 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed |
| Logo Insert Areas | Centre leg 20 × 60 mm |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
28 models ranked by net weight.
It is built for promotional display positioning at the point of sale, and for small export shipments where a full-size pallet is more than the load needs. At 6.39 lb it is handled by one person, and being a single moulding it has no nails and no splinters to damage goods, packaging or hands.

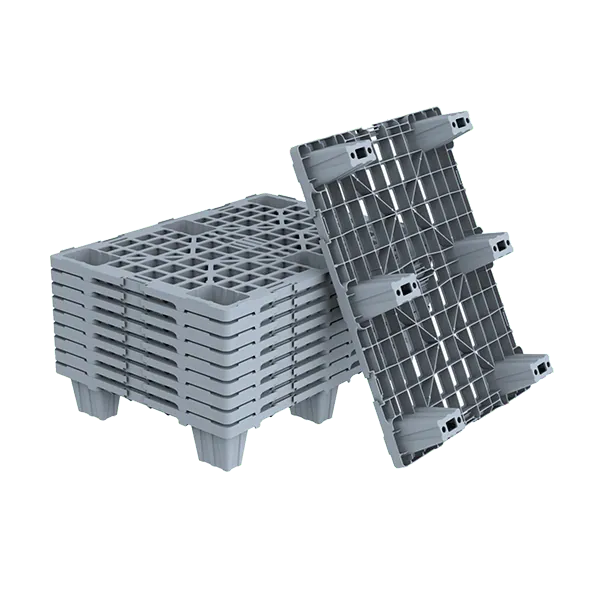

Empty pallets go back as 4,690 per jumbo trailer and 3,690 per 40 ft high-cube container. That is the number to weigh against a wooden display pallet: return freight on empties is most of the running cost of a display programme, and nesting is what collapses it.
Goods can also stay on the pallet from packing to shop floor, so there is no unloading and no shelf-stacking at the far end.
A display pallet at 2.9 kg is a floor and transit pallet, and these are the two figures that govern it. Both assume an evenly distributed load.
display sleeve seats square and stays square
High-density polyethylene, resistant to humidity, airborne environmental pollutants, and chemical acids and corrosives. Serviceable from −4 °F to +104 °F (−20 to +40 °C). Supplied in grey, white, navy or blue, with other colours to order, which is worth more here than on a warehouse pallet: a display pallet is seen by the customer.
Handled with a hand pallet truck, forklift or reach truck. Dimensions carry a ±5 mm production tolerance.
Printed logo only on this model, at one position.
In this film
Answered from the NP-461’s published specification. Anything else, ask on the quotation and it is answered in writing.
1,764 lb (800 kg) static and 882 lb (400 kg) dynamic. Ratings assume an evenly distributed load.
31.50 × 23.62 × 5.31 in (800 × 600 × 135 mm). Dimensional tolerance ± 5 mm.
6.39 lb (2.9 ± 0.5 kg) net.
6-Leg base under a open deck. Nestable, empties nest to cut return freight. Handled by hand pallet truck, forklift, reach truck.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives.
4,690 pcs per jumbo trailer. 3,690 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed. Insert areas: Centre leg 20 × 60 mm.
Yes. The NP-461 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
