Stocked in North York, ON
FG-29147.24 × 31.50 × 5.12 in (1200 × 800 × 130 mm)

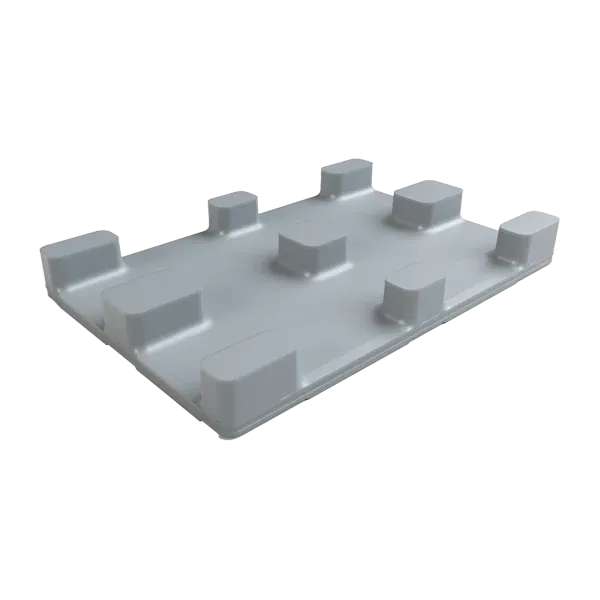

The FG-291 is the runnerless food-grade pallet: a 47×31 footprint, nine legs, and a smooth completely closed deck with nothing spanning between the legs.
Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
Figures for the base build. 2 builds compared in the specification
| Size and load ratings | |
|---|---|
| Size | 47.24 × 31.50 × 5.12 in (1200 × 800 × 130 mm) |
| As-Moulded Size | 1198 × 797 × 130.2 mm, against the nominal 1200 × 800 × 130 |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 11,023 lb (5,000 kg) |
| Dynamic Load | 2,756 lb (1,250 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Deck Type | Closed |
| Bottom Type | 9-Leg |
| Construction | Fully closed, no cavities; no metal reinforcement in the body |
| Safety Rims | 7 mm |
| Material and standards | |
| Material | Food-grade HDPE |
| Temperature Range | −4 to +86 °F (−20 to +30 °C) |
| Resistance | Humidity, environmental pollutants, chemical acids and corrosives |
| Wash-Down | Easy-wash, resistant to industrial detergents |
| Handling and freight | |
| Net Weight | 30.86 lb (14 ± 0.5 kg) |
| Handling | Hand pallet jack, forklift, reach truck |
| Pallet Jack Access | All four sides, no runners to block entry |
| Truck Load | 780 pcs per jumbo trailer |
| Container Load (40 HC) | 700 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed |
| Logo Insert Areas | Long side corners 105 × 95 mm · short side corners 90 × 100 mm · centre leg 80 × 90 mm |
| RFID | Transponder integration available |
Food-grade HDPE selected. SKU FG-291.
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
28 models ranked by net weight.
Put plainly: because this build has no runners, a pallet jack can enter from all four sides. On the three-runner FG-231 a jack can only come in across the runners, from two. If your operation turns pallets rather than orienting them, that is the whole argument.

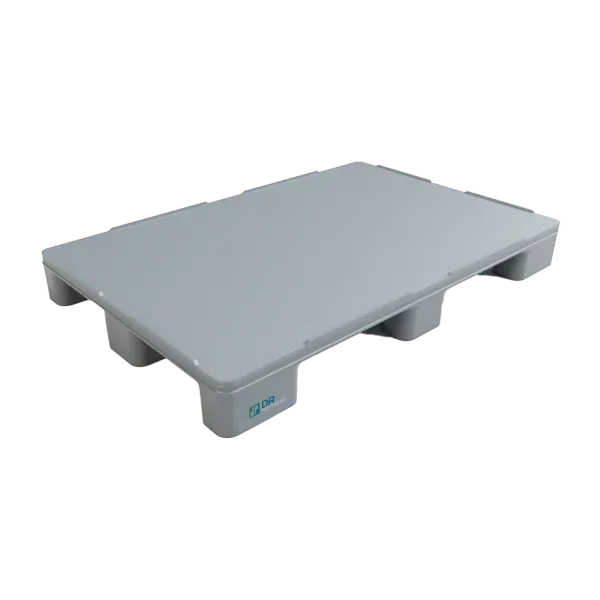

The deck is smooth and entirely closed, with no cavities, so dust has nowhere to accumulate and the pallet dries as easily as it washes. It is easy-wash and resistant to industrial detergents, and no metal reinforcement is used in the body, which matters where metal detection or X-ray screening sits in the line.
The material is food-grade polyethylene, and the datasheets carry the food-contact mark.
+140 °F
Everything else is identical between them: footprint, deck, base, ratings and loading quantities.
That is the same static and dynamic pair as the three-runner FG-231. The FG-231 also carries a 2,205 lb racking rating, which its runners earn, and the runners are what this build gives up for four-sided jack access. Both figures assume an evenly distributed load and fall with a concentrated or point load.

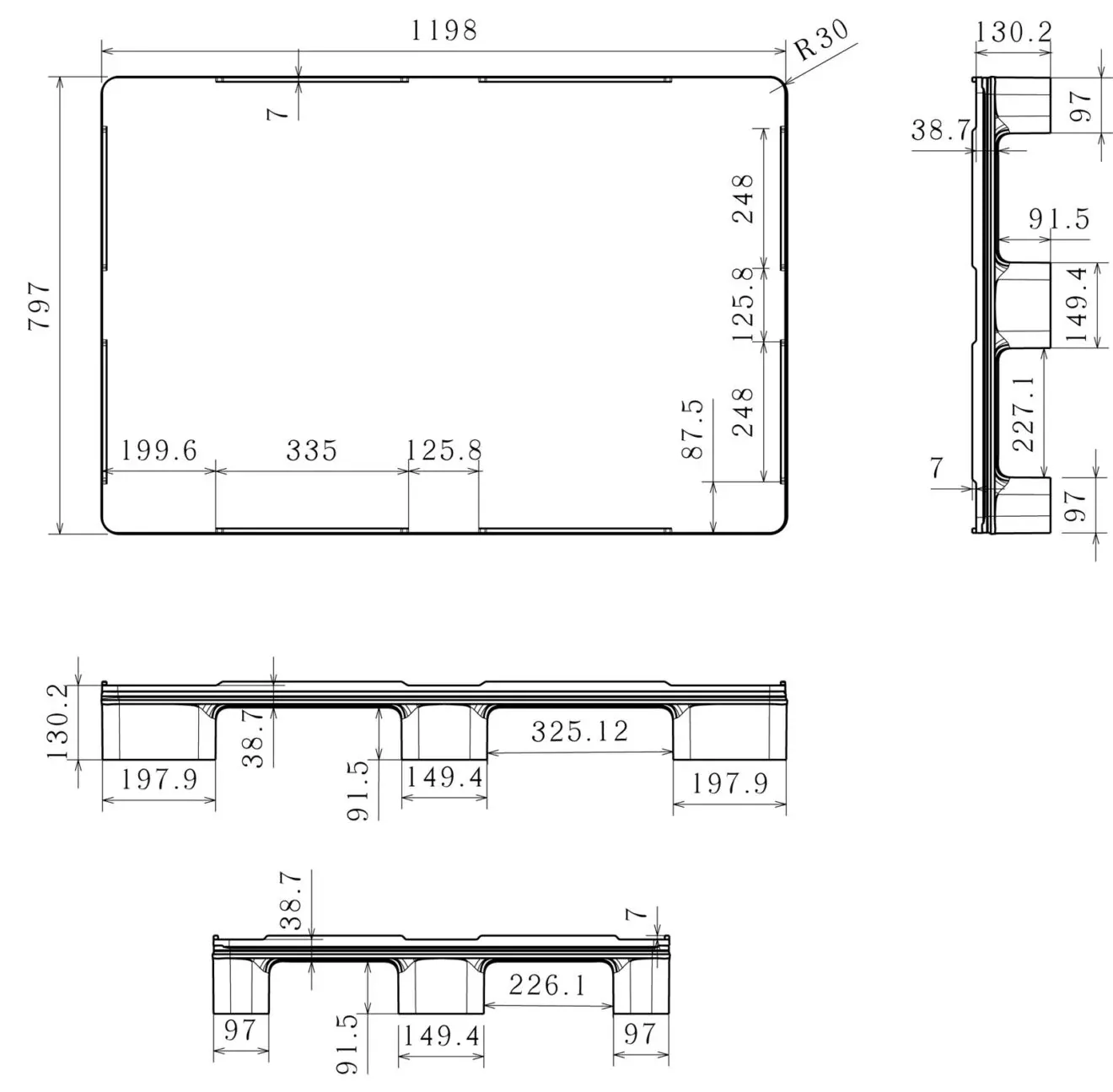

Nominal 47.24 × 31.50 × 5.12 in (1200 × 800 × 130 mm). The drawing gives the as-moulded figures as 1198 × 797 × 130.2 mm, and splits the height into a 38.7 mm deck over 91.5 mm legs.
Safety rims of 7 mm. Serviceable from −4 °F to +86 °F (−20 to +30 °C) in HDPE and from −4 °F to +140 °F (−20 to +60 °C) in PP. Supplied in grey, white, navy or blue, with other colours to order. Dimensions carry a ±5 mm production tolerance. Resistant to humidity, airborne environmental pollutants, and chemical acids and corrosives.
Handled with a hand pallet jack, forklift or reach truck.
Logo printed, at three positions, and RFID transponders can be integrated for pool tracking.
Embossing is not offered as standard. The labelling table marks the embossed column with an explicit cross and both datasheets give the logo option as print, although their photo captions mention embossing too. Ask us if an embossed mark matters to you.
In this film
Answered from the FG-291’s published specification. Anything else, ask on the quotation and it is answered in writing.
11,023 lb (5,000 kg) static and 2,756 lb (1,250 kg) dynamic. Ratings assume an evenly distributed load.
47.24 × 31.50 × 5.12 in (1200 × 800 × 130 mm). As moulded: 1198 × 797 × 130.2 mm, against the nominal 1200 × 800 × 130. Dimensional tolerance ± 5 mm.
30.86 lb (14 ± 0.5 kg) net.
9-Leg base under a closed deck. Pallet jack access: all four sides, no runners to block entry. Handled by hand pallet jack, forklift, reach truck.
Food-grade HDPE. Rated for −4 to +86 °F (−20 to +30 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives. Easy-wash, resistant to industrial detergents.
780 pcs per jumbo trailer. 700 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed. Insert areas: Long side corners 105 × 95 mm · short side corners 90 × 100 mm · centre leg 80 × 90 mm. RFID: transponder integration available.
Yes. The FG-291 datasheet is a PDF on this page with the full specification table and the load figures. Each of the 2 builds has its own sheet; choose the build to download the matching one.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
