Stocked in North York, ON
RP-13147.24 × 39.37 × 5.91 in (1200 × 1000 × 150 mm)

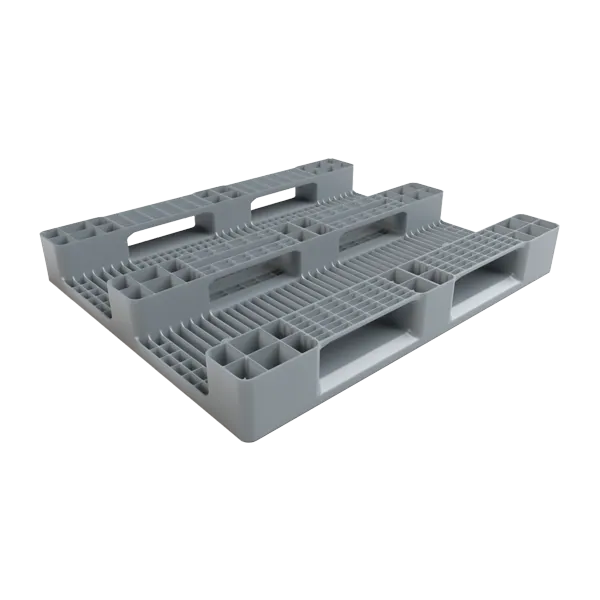

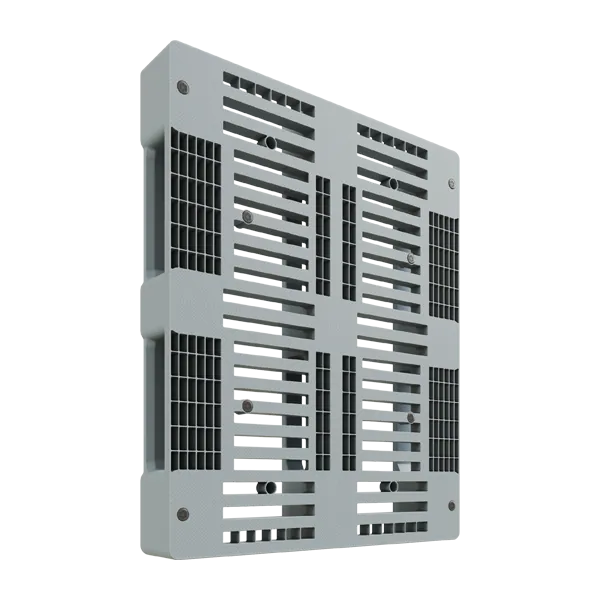

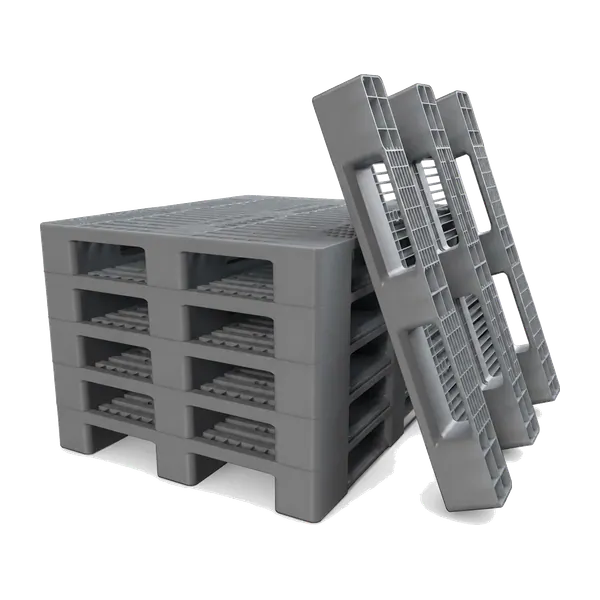

The RP-131 is a three-runner rackable pallet on the 48×40 footprint, with a slatted open deck, built for medium-weight loads carried and stored on the same pallet.

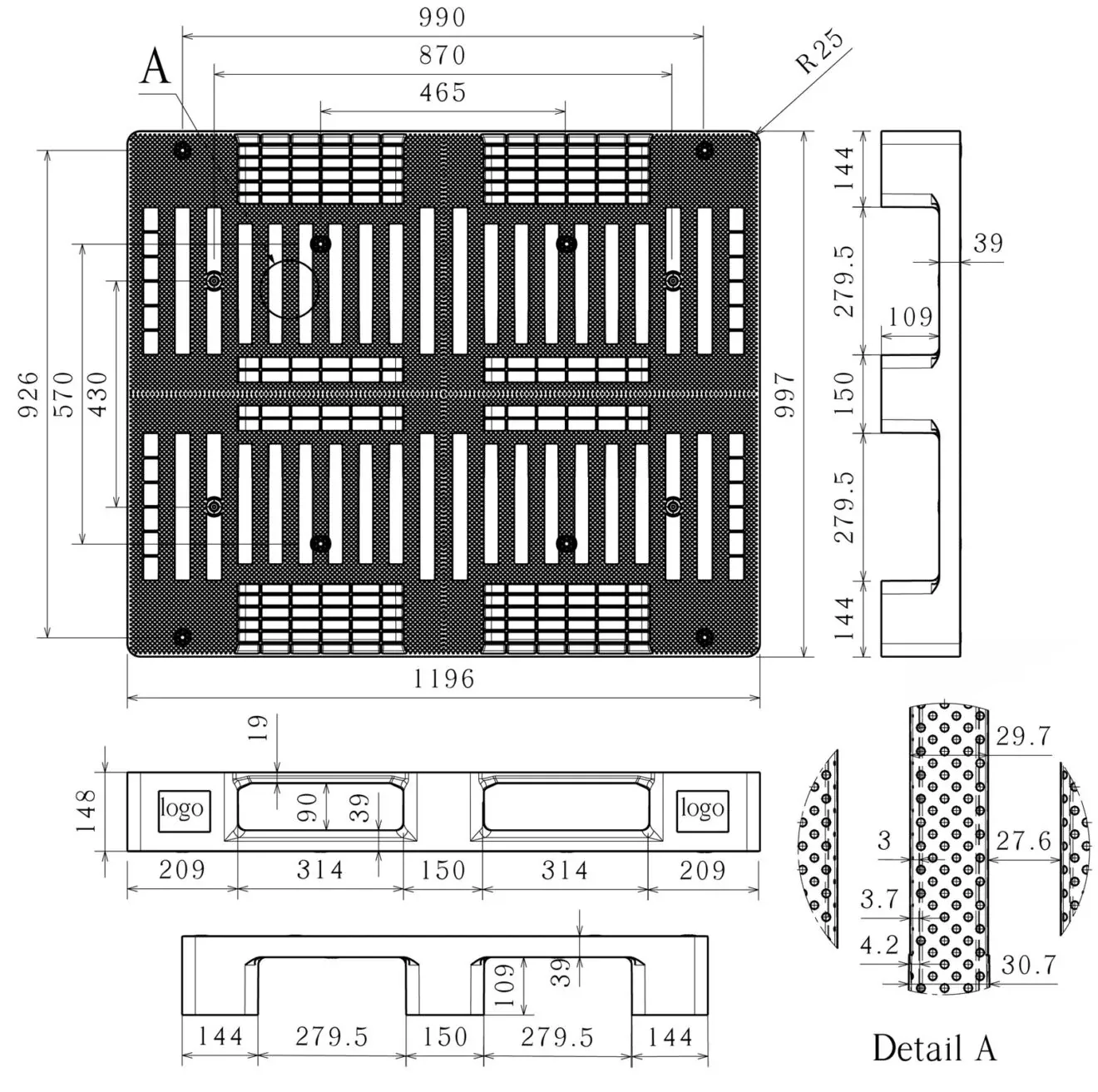

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 47.24 × 39.37 × 5.91 in (1200 × 1000 × 150 mm) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 11,023 lb (5,000 kg) |
| Dynamic Load | 2,756 lb (1,250 kg) |
| Racking Load | 1,323 lb (600 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Deck Type | Open |
| Bottom Type | 3-Runner |
| Construction | Monoblock, a single moulding |
| Surface Finish | Anti-slip |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Humidity, environmental pollutants, chemical acids and corrosives |
| Handling and freight | |
| Net Weight | 34.17 lb (15.5 ± 0.5 kg) |
| Handling | Hand pallet truck, forklift, reach truck |
| Automation | Suitable for automatic shuttle racking and conveyor systems |
| Truck Load | 600 pcs per jumbo trailer |
| Container Load (40 HC) | 550 pcs |
| Colour and branding | |
| Colour | All standard colours |
| Branding | Printed or embossed |
| Logo Insert Areas | Long side corners 100 × 75 mm · short side corners 100 × 75 mm · centre leg 95 × 75 mm |
| RFID | Transponder integration available |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
19 models ranked by racking load.
28 models ranked by net weight.
It is rated 1,323 lb on beams, level with the plain three-runner RP-132 and RP-133, against 882 lb for the six-runner build and no published figure at all for the nine-leg one. The five-runner builds of the RP-132 and RP-133 reach 1,543 lb plain, and fitting their profiles takes racking to 3,307 lb, neither of which this pallet offers. On top of its racking figure it takes 11,023 lb static and 2,756 lb dynamic at a net weight of 34.17 lb.
On durability the case is specific: the section is impact resistant, and mishandling in transit tends not to damage the load, which is what usually ends a pallet's working life before wear does.
Described as one of the most widely used pallets across industry, named for food, beverage, automotive and dairy, and suitable for warehouse racking systems. That is a statement about where these pallets circulate rather than a food-contact certification; where contact compliance or washdown governs, the food-grade range is the right place to look.
A single moulding of high-density polyethylene, resistant to humidity, airborne environmental pollutants, and chemical acids and corrosives. Serviceable from −4 °F to +104 °F (−20 to +40 °C). Anti-slip deck, and all standard colours.
It handles with a hand pallet truck, a forklift or a reach truck, and is suitable for automatic shuttle racking and conveyor systems.
600 pieces per jumbo trailer and 550 per 40 ft high-cube container, appreciably denser than the six-runner build at 450 and 392.
In this film
Answered from the RP-131’s published specification. Anything else, ask on the quotation and it is answered in writing.
11,023 lb (5,000 kg) static and 2,756 lb (1,250 kg) dynamic, with 1,323 lb (600 kg) in racking. Ratings assume an evenly distributed load.
It carries a published racking load of 1,323 lb (600 kg).
47.24 × 39.37 × 5.91 in (1200 × 1000 × 150 mm). Dimensional tolerance ± 5 mm.
34.17 lb (15.5 ± 0.5 kg) net.
3-Runner base under a open deck. Handled by hand pallet truck, forklift, reach truck.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives.
600 pcs per jumbo trailer. 550 pcs per 40 ft high-cube container.
Colours: All standard colours. Logo: printed or embossed. Insert areas: Long side corners 100 × 75 mm · short side corners 100 × 75 mm · centre leg 95 × 75 mm. RFID: transponder integration available.
Yes. The RP-131 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
