Stocked in North York, ON
RP-16147.24 × 39.37 × 5.91 in (1200 × 1000 × 150 mm)

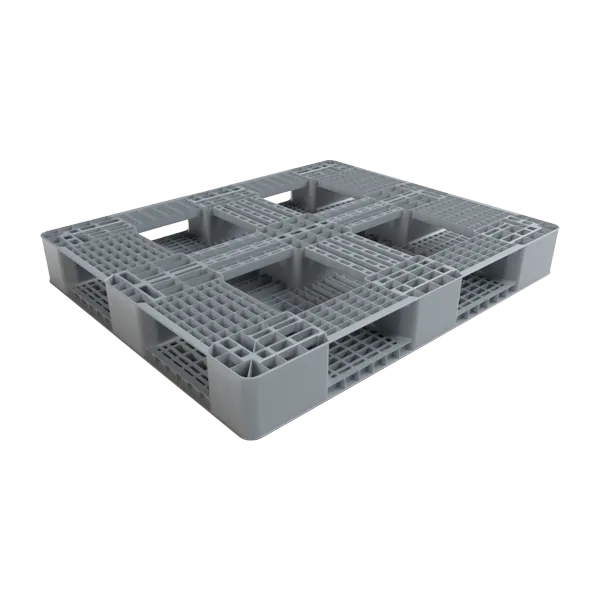

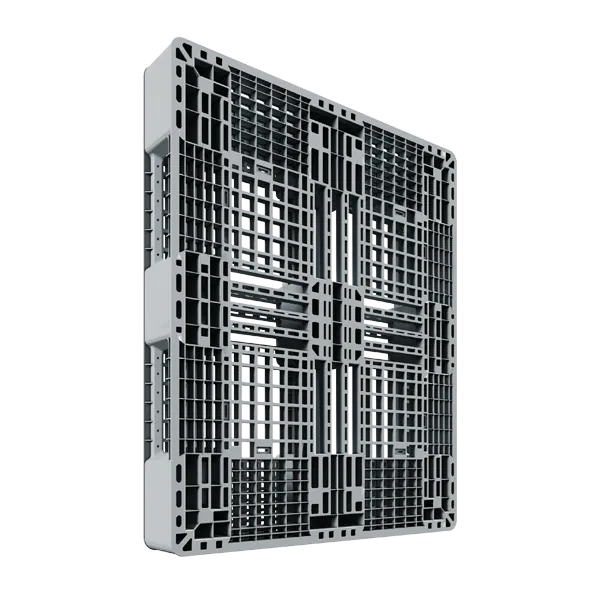

The RP-161 is a six-runner rackable pallet on the 48×40 footprint, with a ribbed open deck and a heavier section than the nine-leg RP-191.

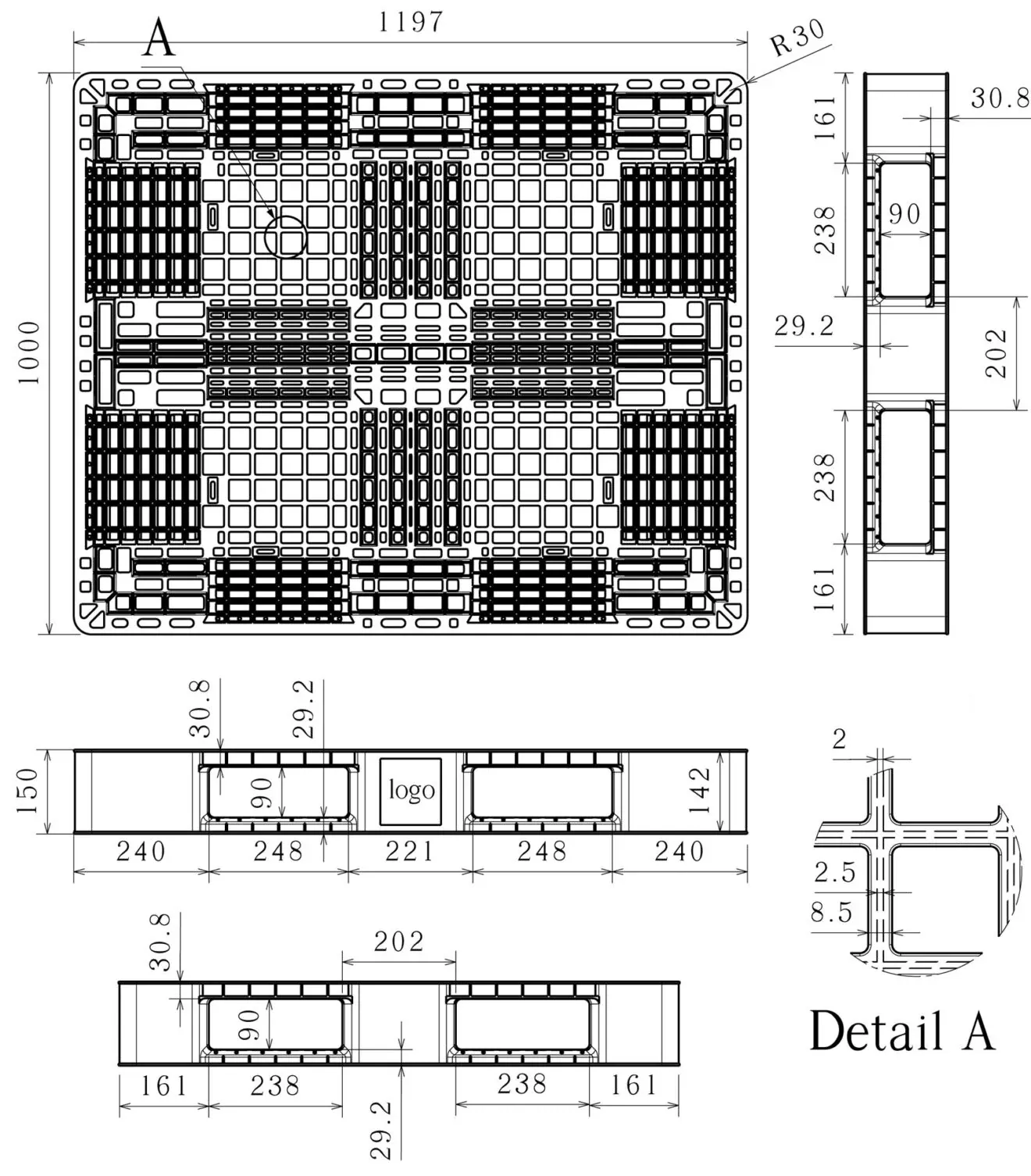

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 47.24 × 39.37 × 5.91 in (1200 × 1000 × 150 mm) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 11,023 lb (5,000 kg) |
| Dynamic Load | 2,756 lb (1,250 kg) |
| Racking Load | 882 lb (400 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Deck Type | Open |
| Bottom Type | 6-Runner |
| Surface Finish | Anti-slip |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Humidity, environmental pollutants, chemical acids and corrosives |
| Handling and freight | |
| Net Weight | 31.97 lb (14.5 ± 0.5 kg) |
| Handling | Hand pallet truck, forklift, reach truck |
| Automation | Suitable for automatic shuttle racking and conveyor systems |
| Truck Load | 450 pcs per jumbo trailer |
| Container Load (40 HC) | 392 pcs |
| Colour and branding | |
| Colour | All standard colours |
| Branding | Printed |
| Logo Insert Areas | Long side corners 100 × 120 mm · centre leg 105 × 115 mm |
| RFID | Transponder integration available |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All plastic pallets
28 models ranked by static load.
28 models ranked by dynamic load.
19 models ranked by racking load.
28 models ranked by net weight.
Six runners rather than nine legs gives a continuous bearing line in both directions, which is what lets it sit on beams: 882 lb racking, on top of 11,023 lb static and 2,756 lb dynamic at a net weight of 31.97 lb.
The reason this one lasts is specific. Its impact resistance and section mean that mishandling tends not to damage the load, which is the failure that usually ends a pallet's service life long before wear does.
Specified for closed distribution networks, production plants and general goods distribution. It is often used in food, pharmaceutical and especially beverage distribution, which is a statement about where these pallets circulate rather than a food-contact certification. If contact compliance or washdown is the governing requirement, the food-grade range is the right place to look.
A single moulding of high-density polyethylene, resistant to humidity, airborne environmental pollutants, and chemical acids and corrosives. Serviceable from −4 °F to +104 °F (−20 to +40 °C). Anti-slip deck, and all standard colours.
It handles with a hand pallet truck, a forklift or a reach truck, and is suitable for automatic shuttle racking and conveyor systems.
450 pieces per jumbo trailer and 392 per 40 ft high-cube container. The deeper section costs density against the nine-leg build, which loads 650 and 550.
In this film
Answered from the RP-161’s published specification. Anything else, ask on the quotation and it is answered in writing.
11,023 lb (5,000 kg) static and 2,756 lb (1,250 kg) dynamic, with 882 lb (400 kg) in racking. Ratings assume an evenly distributed load.
It carries a published racking load of 882 lb (400 kg).
47.24 × 39.37 × 5.91 in (1200 × 1000 × 150 mm). Dimensional tolerance ± 5 mm.
31.97 lb (14.5 ± 0.5 kg) net.
6-Runner base under a open deck. Handled by hand pallet truck, forklift, reach truck.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to humidity, environmental pollutants, chemical acids and corrosives.
450 pcs per jumbo trailer. 392 pcs per 40 ft high-cube container.
Colours: All standard colours. Logo: printed. Insert areas: Long side corners 100 × 120 mm · centre leg 105 × 115 mm. RFID: transponder integration available.
Yes. The RP-161 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
