51×43 Heavy-Duty Pallet, Open Deck, 6-Runner, Heavy Section

It does not buy capacity. Static, dynamic and racking loads are published as identical to the HD-361, at 11,023 lb, 2,756 lb and 661 lb. Neither build carries reinforcement profiles, and the two share one dimensioned drawing.

So the difference is material, not geometry: about 7% more polymer in the same envelope. Read the tolerance before you lean on that figure, though: both weights are published as ± 0.5 kg, so the one kilogram is nominal, and the two bands touch at 15.0 kg. Piece by piece the gap can be smaller.

Where that material goes, and what it is for, is not documented, and we will not guess on a load-bearing product. If durability rather than rating is what you are buying, send us the application and the volume and we will come back with an answer rather than an inference.

The connected base is rack-compatible: six joined runners give the continuous bearing surface a beam needs. What it does not give is capacity. Racking load is 661 lb (300 kg), against 11,023 lb standing on the floor.

If a full pallet has to sit unsupported on beams, specify from the rackable range instead, where the same 11,023 lb static rating comes with 1,323 lb of racking capacity. Every load rating here assumes an evenly distributed load, and falls with a concentrated or point load.

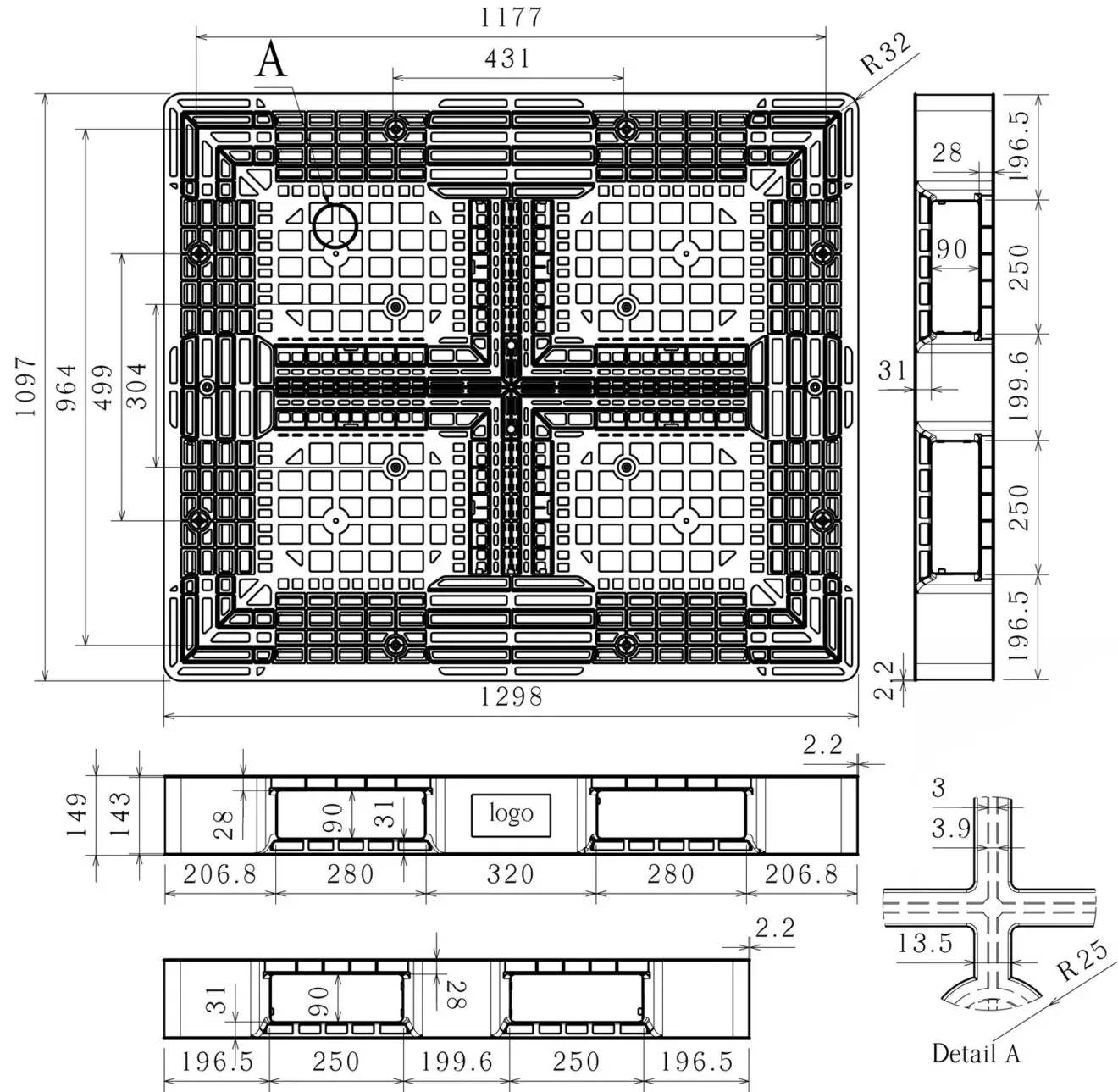

Four-way, two openings a side, dimensioned on the shared drawing:

• Long side 280 mm wide × 90 mm high
• Short side 250 mm wide × 90 mm high

Dimensions carry a ±5 mm production tolerance.

High-density polyethylene, resistant to humidity, airborne environmental pollutants, and chemical acids and corrosives, which is what puts this family on petrochemical and chemical sites. Serviceable from −4 °F to +104 °F (−20 to +40 °C). Supplied in grey, white, navy or blue, with other colours to order. Anti-slip rubber, and handled by hand pallet truck, forklift or reach truck.

Logo printed or embossed, at two positions, and RFID transponders can be integrated for pool tracking.

• Short side, corner blocks 150 × 120 mm
• Centre leg 150 × 80 mm

No insert is offered on the long-side corner blocks, and this build carries no safety rim option.

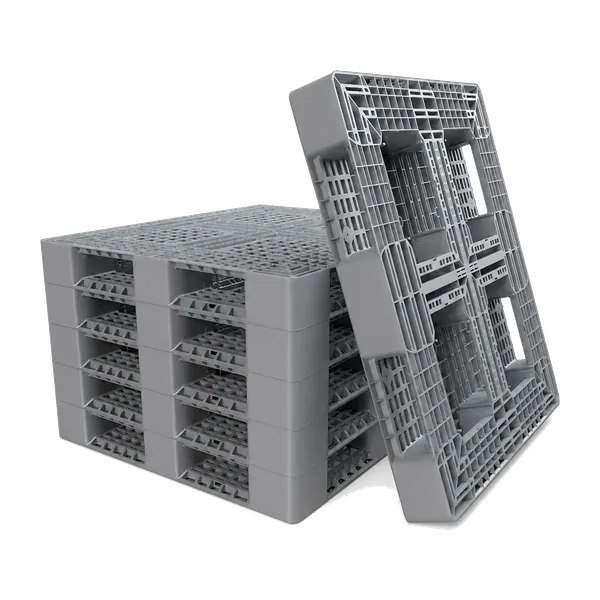

374 per jumbo trailer and 320 per 40 ft high-cube container, the same as the HD-361: the extra material is inside the envelope, so it costs nothing in cube.
