Stocked in North York, ON
BW-77054.92 × 33.46 × 53.35 in (1395 × 850 × 1355 mm)
The 770 L sits between the 660 and the 1100: the same four-castor format, a 6 mm wall, and the tallest body in the range at 53.35 in (1355 mm).

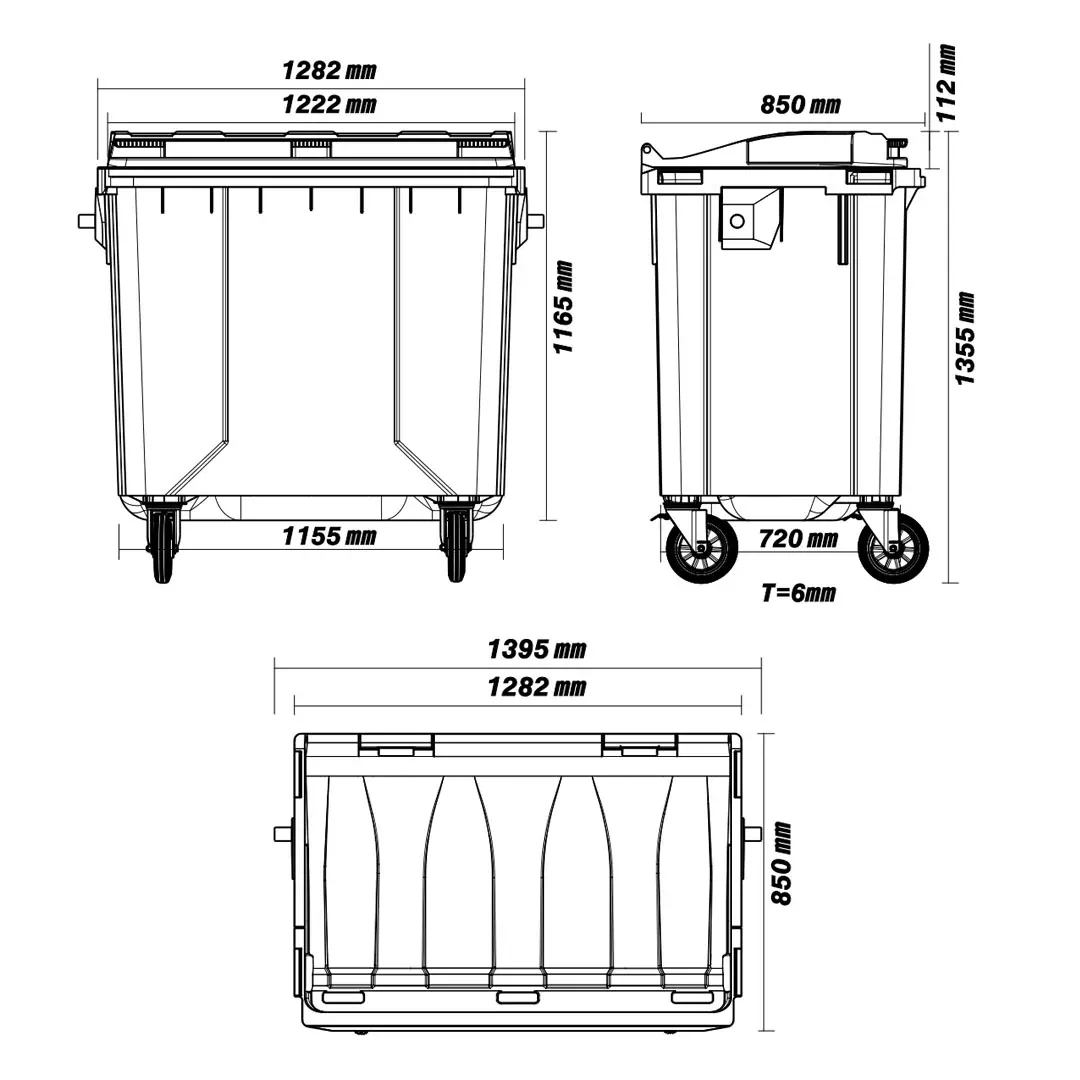

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 54.92 × 33.46 × 53.35 in (1395 × 850 × 1355 mm) |
| Capacity | 203.4 US gal (770 L) |
| Body Width | 50.47 in (1282 mm); the published 1395 mm is measured across the lifting trunnions |
| Wall Thickness | 6 mm |
| Dimensional Tolerance | ± 5 mm |
| Construction | |
| Construction | Side lifting trunnions and push handles |
| Lid | Full-width hinged lid |
| Wheels | Four swivel castors with a foot brake |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Moisture |
| Wash-Down | Washable and suitable for disinfection |
| Design Standard | EN 840-1 and EN 840-6 |
| Handling and freight | |
| Net Weight | 101.41 lb (46 kg) |
| Placement | Indoor or outdoor |
| Colour and branding | |
| Colour | Yellow, dark green, charcoal grey, blue, red or light green |
| Branding | Printed |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All waste recycling bins
11 models ranked by capacity.
We publish 46 kg. A figure of 48 is in circulation, but the datasheet and every other figure say 46, so it is outvoted. The same listing gives the length as 1396 mm where the datasheet and the drawing both say 1395.
One set of figures prints 352 in two places: once as the container height and once as the capacity in kilograms. The height is settled at 1355 mm by three other documents, which leaves that 352 kg resting on a field that has demonstrably been copied into. Ask us and we will get the real figure, rather than repeat a number that started life as a typing slip.
Built to the EN 840-1 and EN 840-6 dimensions and design requirements for mobile waste and recycling containers.
Indoor or outdoor. This is the only container in the range rated for both, and we publish both. Residential complexes, public roads, workshops, factories and municipal sites.
Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:
The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.
Rated −4 to +104 °F (−20 to +40 °C), the lower of the two figures in circulation for this bin.
Six standard colours: yellow, dark green, charcoal grey, blue, red and light green. Printed branding. Dimensions carry a ±5 mm production tolerance.
In this film
Answered from the BW-770’s published specification. Anything else, ask on the quotation and it is answered in writing.
203.4 US gal (770 L).
54.92 × 33.46 × 53.35 in (1395 × 850 × 1355 mm). Dimensional tolerance ± 5 mm.
101.41 lb (46 kg) net.
Wheels: Four swivel castors with a foot brake. Lid: Full-width hinged lid.
EN 840-1 and EN 840-6.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to moisture. Washable and suitable for disinfection.
Colours: Yellow, dark green, charcoal grey, blue, red or light green. Logo: printed.
Yes. The BW-770 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
