Stocked in North York, ON
IB-06518.90 × 16.73 × 26.18 in (480 × 425 × 665 mm)

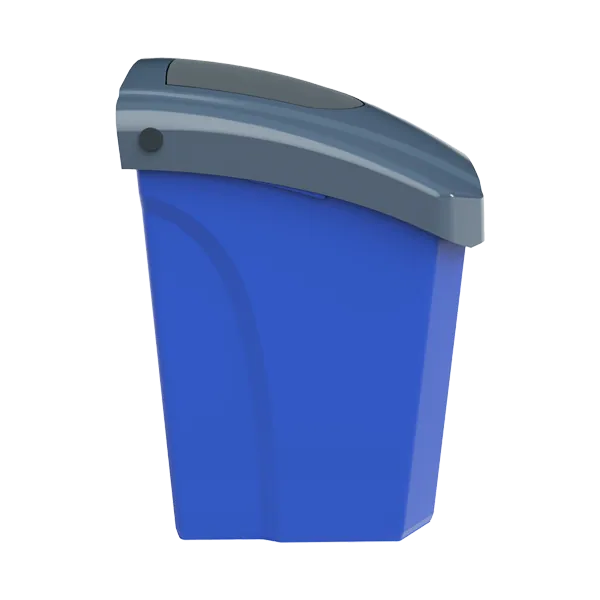

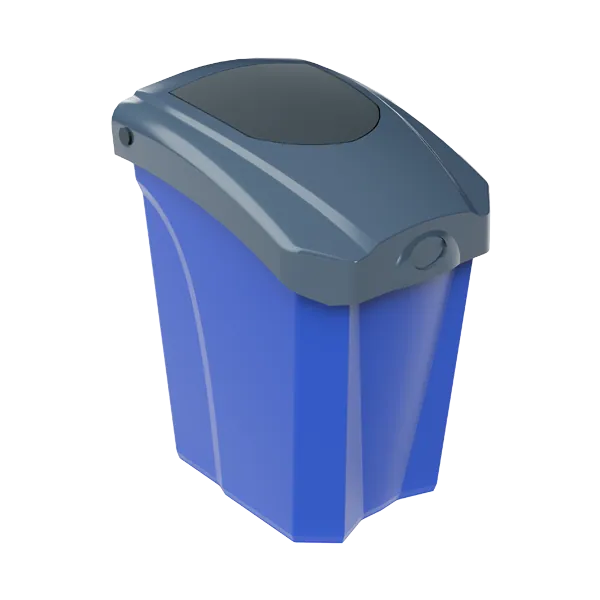

The 65 L is the 45 L one size up: same hooded grey lid, same faceted body, same taper, more room.

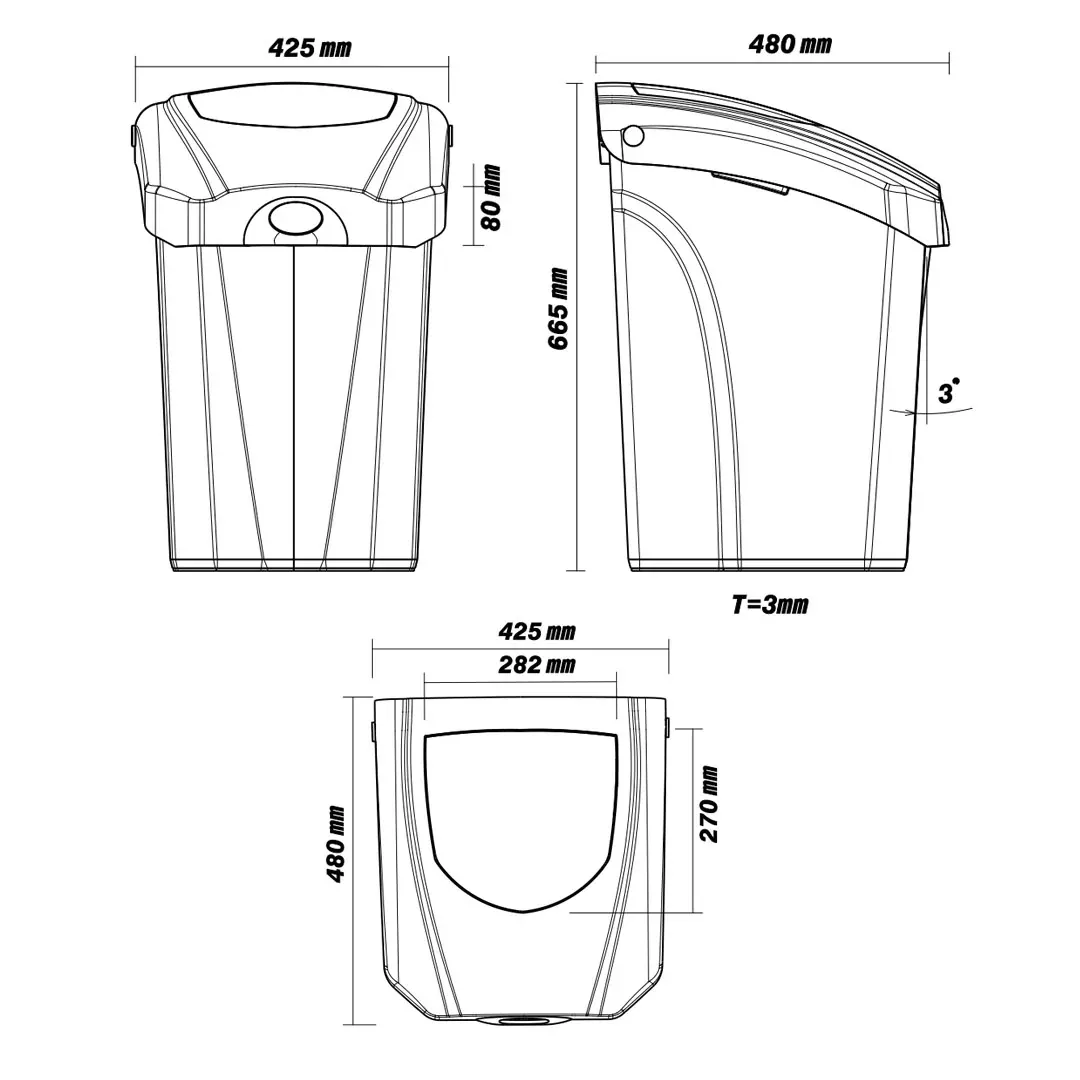

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 18.90 × 16.73 × 26.18 in (480 × 425 × 665 mm) |
| Capacity | 17.2 US gal (65 L) |
| Wall Thickness | 3 mm |
| Dimensional Tolerance | ± 5 mm |
| Construction | |
| Construction | One-piece faceted body with a 3° taper |
| Nesting | Empties nest inside one another |
| Lid | Hooded lid, hinged, 80 mm deep |
| Material and standards | |
| Material | PP / HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Moisture |
| Wash-Down | Washable and suitable for disinfection |
| Handling and freight | |
| Net Weight | 5.95 lb (2.7 kg) |
| Placement | Indoor |
| Colour and branding | |
| Colour | Yellow, dark green, charcoal grey, blue, red or light green |
| Branding | Printed |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All waste recycling bins
11 models ranked by capacity.
It holds more than the square 60 L and weighs less than it, 2.7 kg against 3. The tapered body carries its own shape, so it does not need the ribbing the square bin relies on.
The taper means empties nest into each other, which is worth having when a delivery of forty has to go somewhere before it is deployed.
Moulded in a PP and HDPE blend, shared only with the 45 L. Washable, suitable for disinfection, and moisture resistant.
Indoor use, rated for indoor use only: homes, offices, schools and hospitals. It is fixed rather than wheeled, so it stays where you put it.
Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:
The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.
Rated −4 to +104 °F (−20 to +40 °C), the lower of the two figures in circulation for this bin.
Six standard colours: yellow, dark green, charcoal grey, blue, red and light green. Printed branding. Dimensions carry a ±5 mm production tolerance.
In this film
Answered from the IB-065’s published specification. Anything else, ask on the quotation and it is answered in writing.
17.2 US gal (65 L).
18.90 × 16.73 × 26.18 in (480 × 425 × 665 mm). Dimensional tolerance ± 5 mm.
5.95 lb (2.7 kg) net.
Lid: Hooded lid, hinged, 80 mm deep.
PP / HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to moisture. Washable and suitable for disinfection.
Colours: Yellow, dark green, charcoal grey, blue, red or light green. Logo: printed.
Yes. The IB-065 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
