Stocked in North York, ON
WB-10018.70 × 21.26 × 32.20 in (475 × 540 × 818 mm)

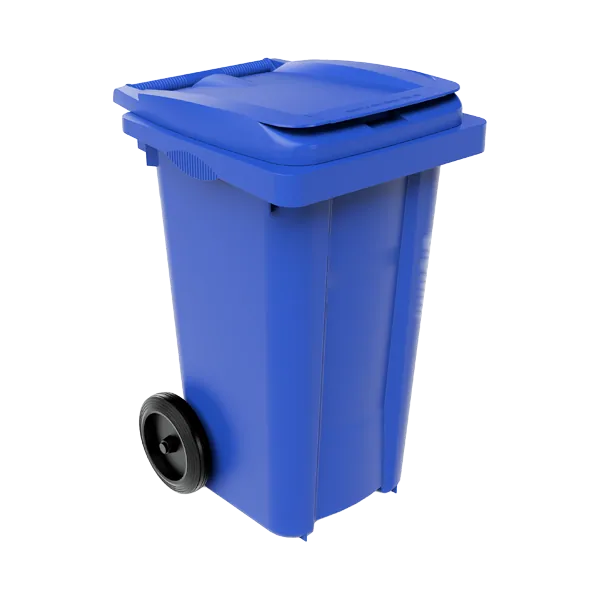

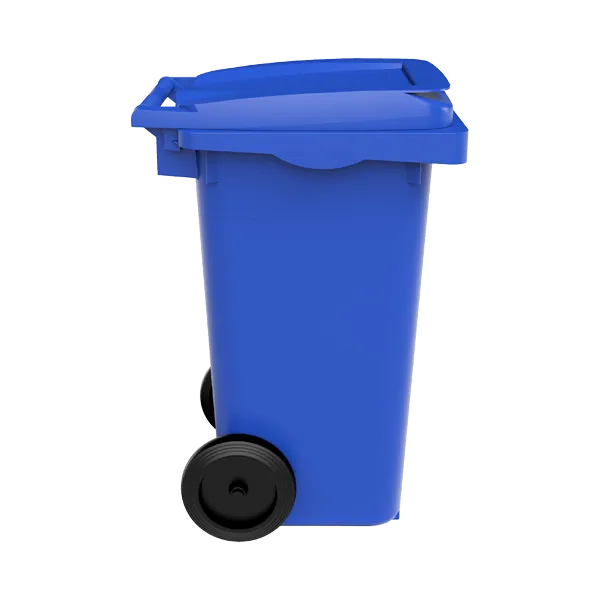

The 100 L is the smallest wheeled bin we list: two 200 mm wheels, a silent lid, and a body one person can tip and roll on their own.

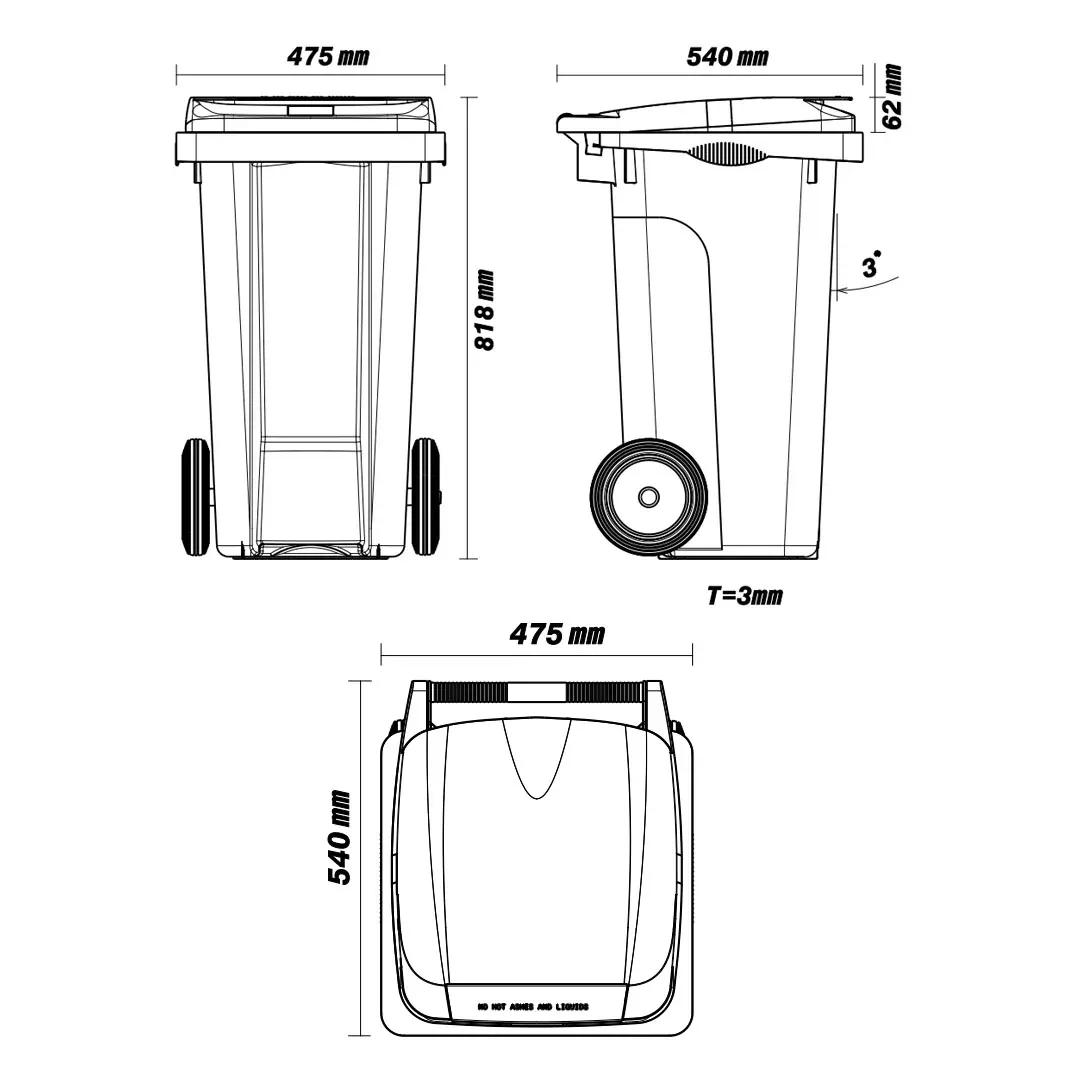

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
Figures for the base build. 2 builds compared in the specification
| Size and load ratings | |
|---|---|
| Size | 18.70 × 21.26 × 32.20 in (475 × 540 × 818 mm) |
| Capacity | 26.4 US gal (100 L) |
| Wall Thickness | 3 mm |
| Dimensional Tolerance | ± 5 mm |
| Rated Payload | 77.16 lb (35 kg) |
| Construction | |
| Construction | Ribbed body with a lifting comb bar across the front rim, drawn with a 3° taper |
| Lid | Hinged silent lid, 62 mm deep |
| Moulded Lid Legend | NO HOT ASHES AND LIQUIDS |
| Wheels | Two, 7.87 in (200 mm) diameter |
| Pedal Option | Available as a separate build |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Moisture |
| Wash-Down | Washable and suitable for disinfection |
| Design Standard | EN 840-1 and EN 840-6 |
| Handling and freight | |
| Net Weight | 17.42 lb (7.9 kg) |
| Placement | Outdoor |
| Colour and branding | |
| Colour | Yellow, dark green, charcoal grey, blue, red or light green |
| Branding | Printed |
Standard selected. SKU WB-100.
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All waste recycling bins
11 models ranked by capacity.
4 models ranked by rated payload.

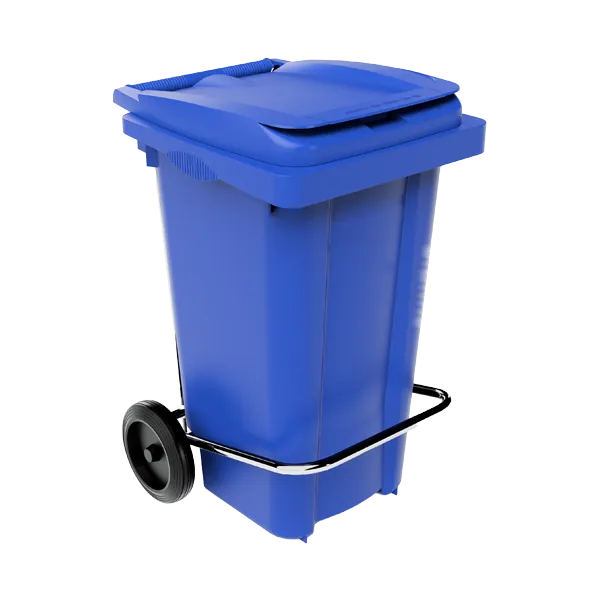

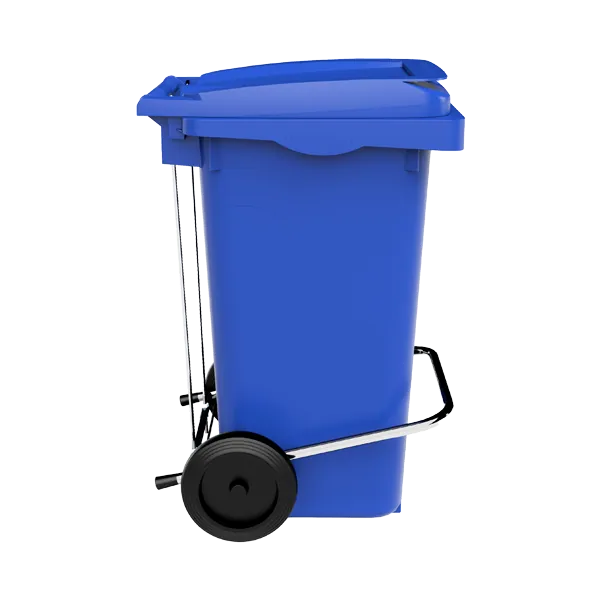

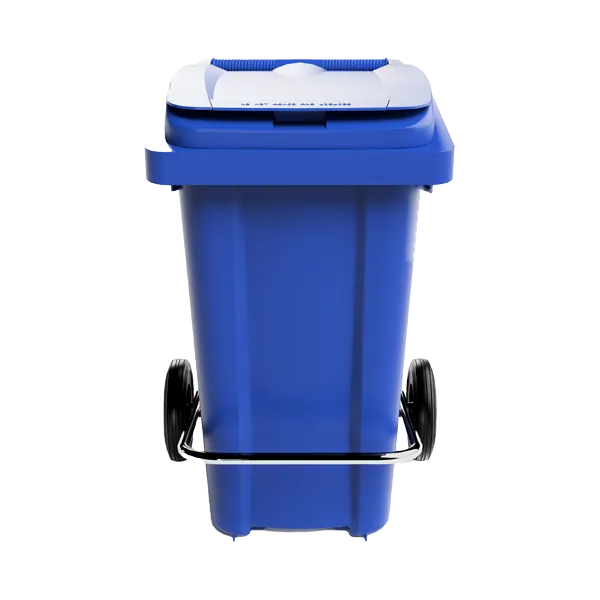

lid, for hands-free opening in a kitchen or a clinical area.
A note on the pedal weight. 7.9 kg is published for both builds, which is unlikely: on the 60 L the same mechanism adds 1.9 kg. We repeat the published figure rather than invent one. Ask us if the shipping weight of the pedal build matters to your order.
A line is moulded along the front edge of the lid, and it is an instruction rather than a decoration: NO HOT ASHES AND LIQUIDS. It is legible on this product's own drawing.
On the height. Three different figures are in circulation: 825 mm, 718 mm and 818 mm on both datasheets and the drawing. We publish 818. The 718 is a transposed digit; nothing else supports it.
Built to the EN 840-1 and EN 840-6 dimensions and design requirements for mobile waste and recycling containers, so it works with standard comb lifters.
Outdoor use, as the specification states. It is sometimes described as indoor, which contradicts both the specification and the places it is named for, among them municipalities. Residential blocks, shops, workshops and factory floors.
Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:
The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.
Rated −4 to +104 °F (−20 to +40 °C), the lower of the two figures in circulation for this bin.
Six standard colours: yellow, dark green, charcoal grey, blue, red and light green, which is what makes stream separation work across a site. Printed branding. Dimensions carry a ±5 mm production tolerance.
In this film
Answered from the WB-100’s published specification. Anything else, ask on the quotation and it is answered in writing.
26.4 US gal (100 L). Rated payload 77.16 lb (35 kg).
18.70 × 21.26 × 32.20 in (475 × 540 × 818 mm). Dimensional tolerance ± 5 mm.
17.42 lb (7.9 kg) net.
Wheels: Two, 7.87 in (200 mm) diameter. Lid: Hinged silent lid, 62 mm deep. Pedal: available as a separate build.
EN 840-1 and EN 840-6.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to moisture. Washable and suitable for disinfection.
Colours: Yellow, dark green, charcoal grey, blue, red or light green. Logo: printed.
Yes. The WB-100 datasheet is a PDF on this page with the full specification table and the load figures. Each of the 2 builds has its own sheet; choose the build to download the matching one.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
