Stocked in North York, ON
IB-04514.96 × 13.86 × 21.85 in (380 × 352 × 555 mm)
The 45 L is the smallest bin we list, and the one that goes where a wheeled bin will not fit: under a counter, beside a desk, at the end of a ward corridor.

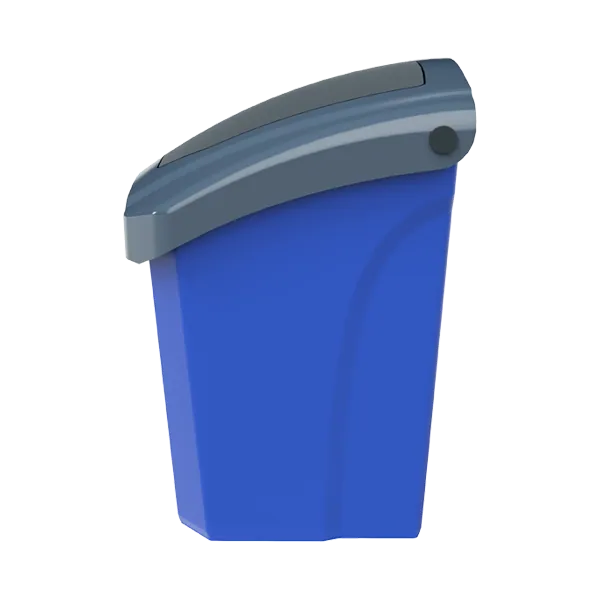

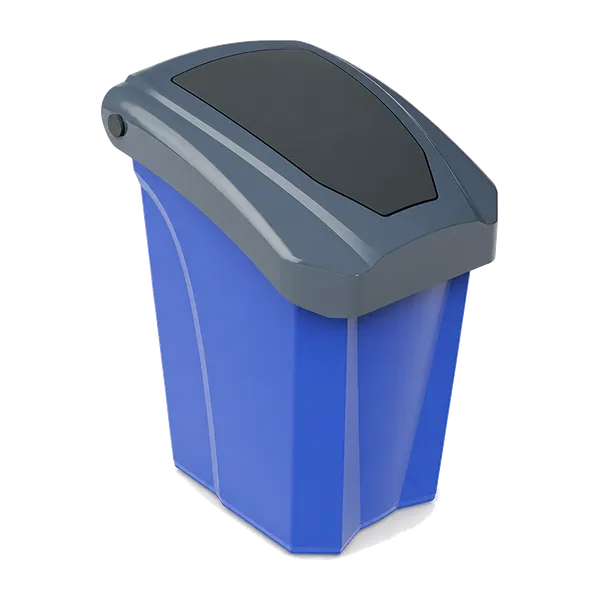

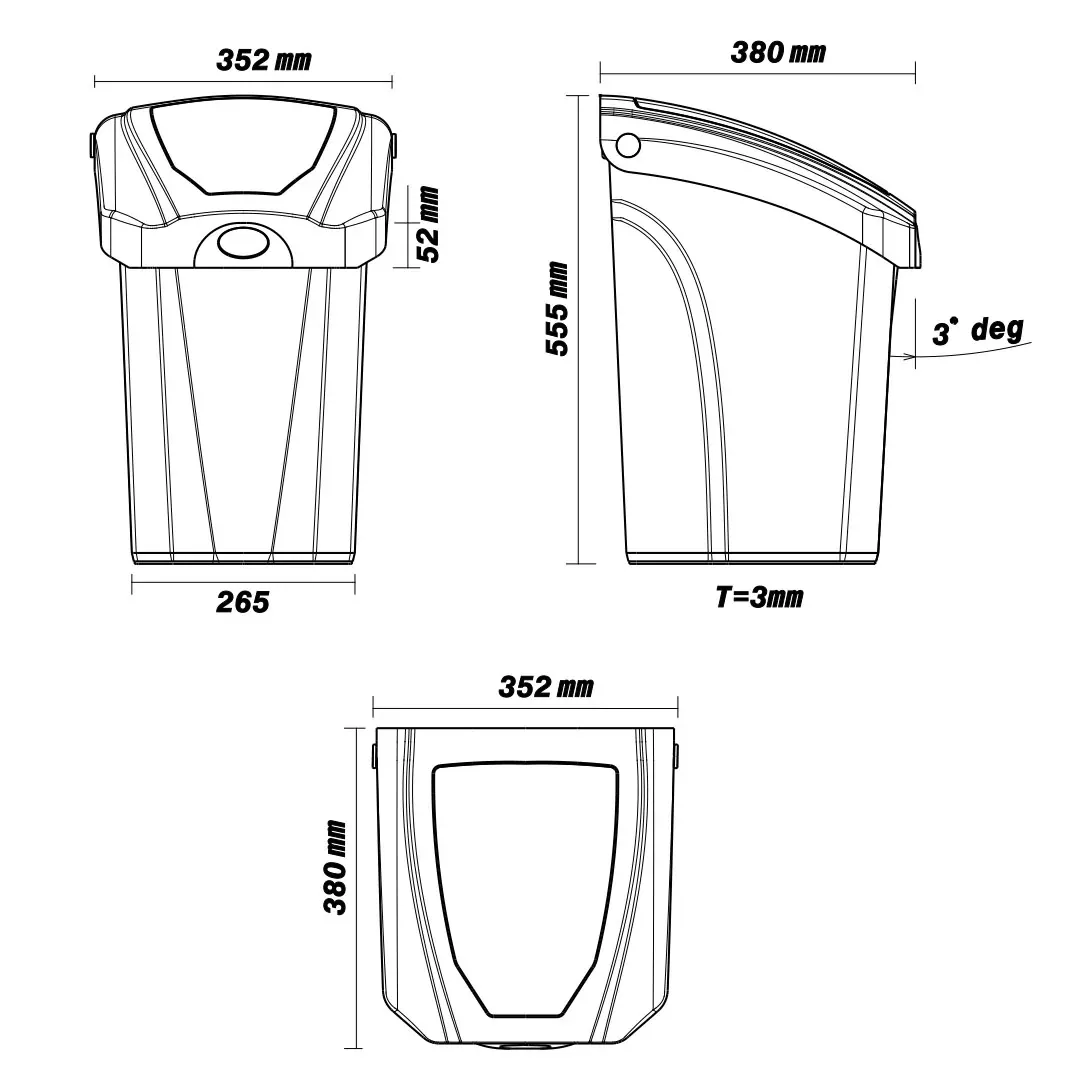

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 14.96 × 13.86 × 21.85 in (380 × 352 × 555 mm) |
| Capacity | 11.9 US gal (45 L) |
| Wall Thickness | 3 mm |
| Dimensional Tolerance | ± 5 mm |
| Construction | |
| Construction | One-piece body with a 3° taper, narrowing to 265 mm across the base |
| Nesting | Empties nest inside one another |
| Lid | Hooded lid, hinged, 52 mm deep |
| Material and standards | |
| Material | PP / HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Moisture |
| Wash-Down | Washable and suitable for disinfection |
| Handling and freight | |
| Net Weight | 3.75 lb (1.7 kg) |
| Placement | Indoor |
| Colour and branding | |
| Colour | Yellow, dark green, charcoal grey, blue, red or light green; other colours on request |
| Branding | Printed |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All waste recycling bins
11 models ranked by capacity.
A one-piece polyethylene body with a grey hooded lid, moulded with a 3° taper so the bins stack into each other empty and take almost no floor space in a stockroom. 3 mm wall throughout.
The base narrows to 265 mm across the front, which is what lets it sit tight against a kickboard.
Moulded in a PP and HDPE blend. Only this bin and the 65 L use it; the rest of the range is HDPE alone. Washable and easy to disinfect, and moisture resistant, so it survives a wet wipe-down rather than just tolerating one.
Indoor use: it is rated for indoor use only. Homes, offices, schools, clinics and back-of-house areas.
Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:
The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.
Rated −4 to +104 °F (−20 to +40 °C). A +60 °C figure is also in circulation, while the specification says +40. We publish the lower of the two. Ask us if you are siting these anywhere genuinely hot.
Six standard colours: yellow, dark green, charcoal grey, blue, red and light green, with other colours to order. Your logo can be printed on the body. Dimensions carry a ±5 mm production tolerance.
In this film
Answered from the IB-045’s published specification. Anything else, ask on the quotation and it is answered in writing.
11.9 US gal (45 L).
14.96 × 13.86 × 21.85 in (380 × 352 × 555 mm). Dimensional tolerance ± 5 mm.
3.75 lb (1.7 kg) net.
Lid: Hooded lid, hinged, 52 mm deep.
PP / HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to moisture. Washable and suitable for disinfection.
Colours: Yellow, dark green, charcoal grey, blue, red or light green; other colours on request. Logo: printed.
Yes. The IB-045 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
