Stocked in North York, ON
IB-06014.96 × 17.91 × 21.50 in (380 × 455 × 546 mm)

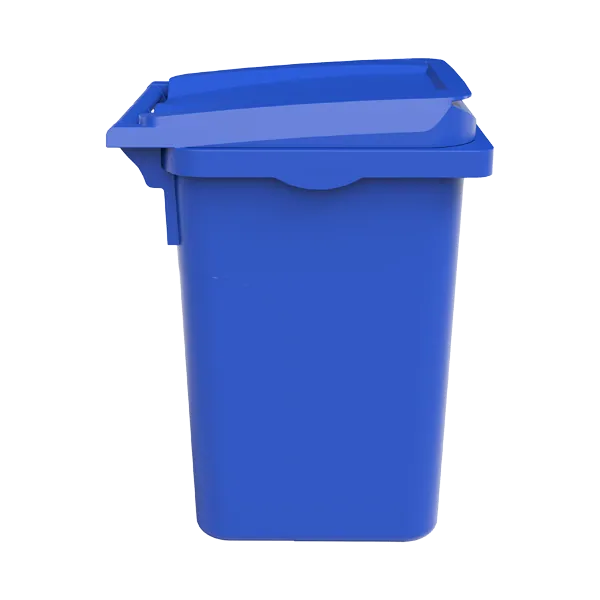

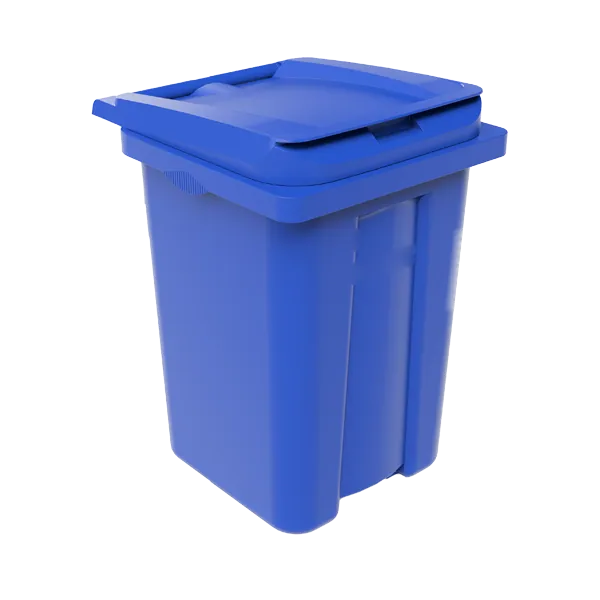

The 60 L is the square, flat-lidded bin in this range, and the smallest one you can order with a foot pedal.

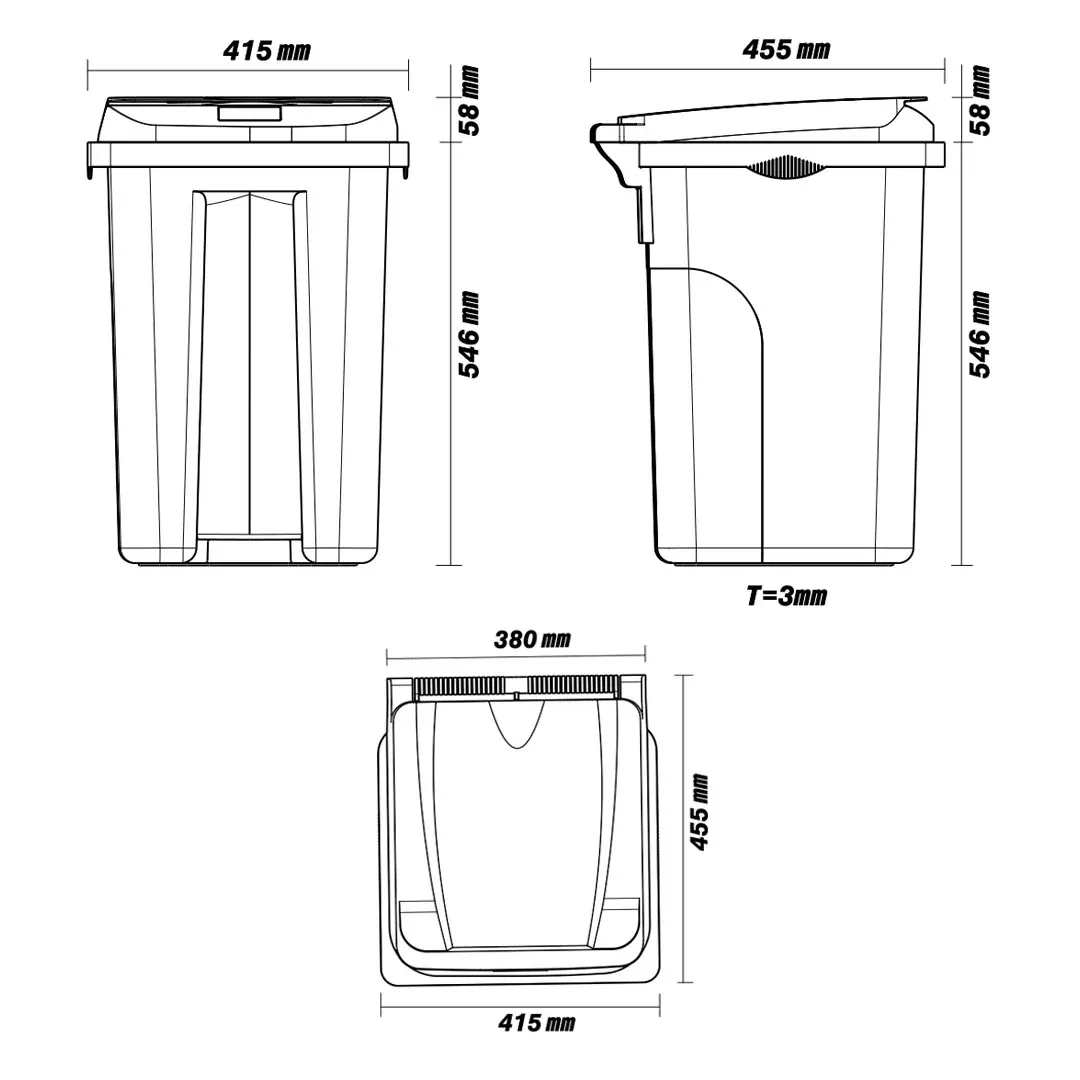

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
Figures for the base build. 2 builds compared in the specification
| Size and load ratings | |
|---|---|
| Size | 14.96 × 17.91 × 21.50 in (380 × 455 × 546 mm) |
| Capacity | 15.9 US gal (60 L) |
| Overall Width | 16.34 in (415 mm) across the lid flanges, against the 380 mm body |
| Wall Thickness | 3 mm |
| Dimensional Tolerance | ± 5 mm |
| Construction | |
| Construction | Square body with ribbed side panels; pedal gear sits within the standard envelope |
| Lid | Flat hinged lid, 58 mm deep |
| Pedal Option | Available as a separate build |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Moisture |
| Wash-Down | Washable and suitable for disinfection |
| Handling and freight | |
| Net Weight | 6.61 lb (3 kg) |
| Placement | Indoor |
| Colour and branding | |
| Colour | Yellow, dark green, charcoal grey, blue, red or light green |
| Branding | Printed |
Standard selected. SKU IB-060.
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All waste recycling bins
11 models ranked by capacity.

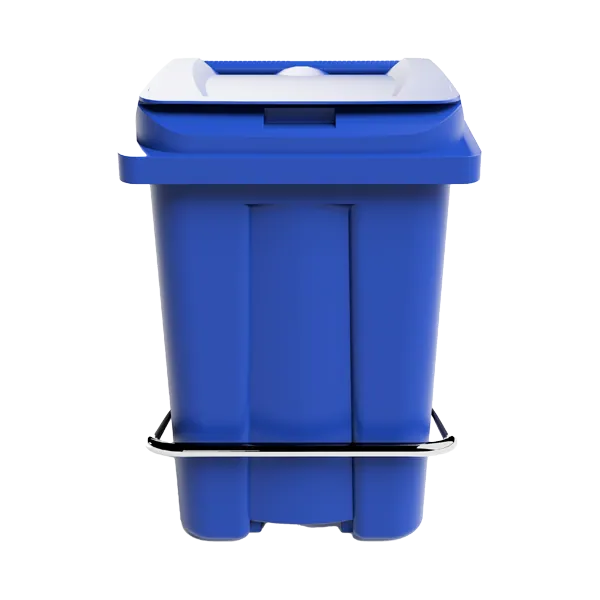

linkage up to the lid, 10.80 lb (4.9 kg).

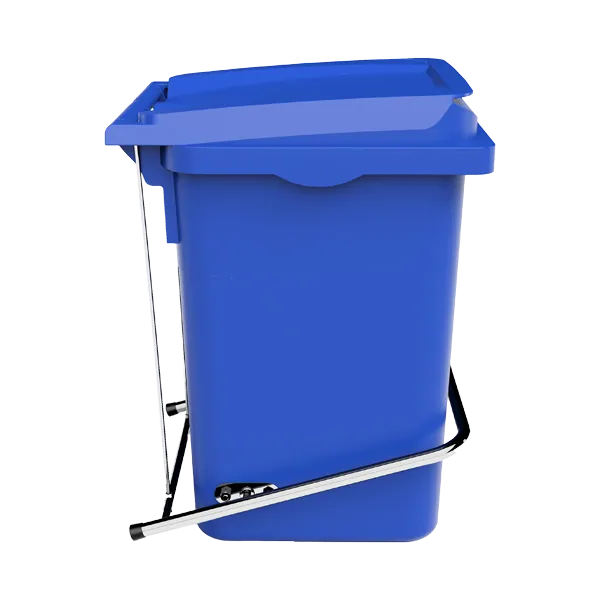

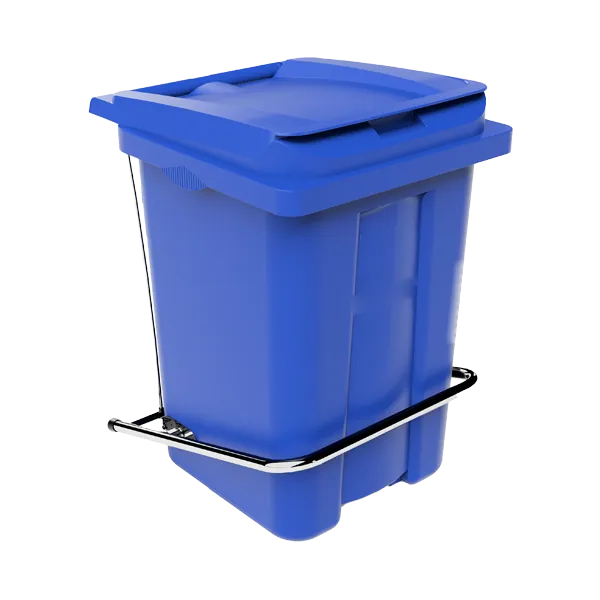

The envelope is identical: the pedal gear tucks under and behind the body, so a pedal bin occupies exactly the same floor space as a plain one. That matters when you are specifying a row of them along a wall.
Indoor use: it is rated for indoor use only. It is sometimes described more broadly, for offices, companies, green spaces and residential blocks, so treat sheltered outdoor siting as a question for us rather than a given.
Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:
The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.
Rated −4 to +104 °F (−20 to +40 °C). A +60 °C figure is in circulation alongside +40; we publish the lower figure.
Six standard colours: yellow, dark green, charcoal grey, blue, red and light green. Your logo can be printed on the body. Dimensions carry a ±5 mm production tolerance.
In this film
Answered from the IB-060’s published specification. Anything else, ask on the quotation and it is answered in writing.
15.9 US gal (60 L).
14.96 × 17.91 × 21.50 in (380 × 455 × 546 mm). Dimensional tolerance ± 5 mm.
6.61 lb (3 kg) net.
Lid: Flat hinged lid, 58 mm deep. Pedal: available as a separate build.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to moisture. Washable and suitable for disinfection.
Colours: Yellow, dark green, charcoal grey, blue, red or light green. Logo: printed.
Yes. The IB-060 datasheet is a PDF on this page with the full specification table and the load figures. Each of the 2 builds has its own sheet; choose the build to download the matching one.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
