Stocked in North York, ON
WB-36027.56 × 33.46 × 44.25 in (700 × 850 × 1124 mm)
The 360 L is the largest two-wheel bin we list, and the last size before the range moves to four castors.

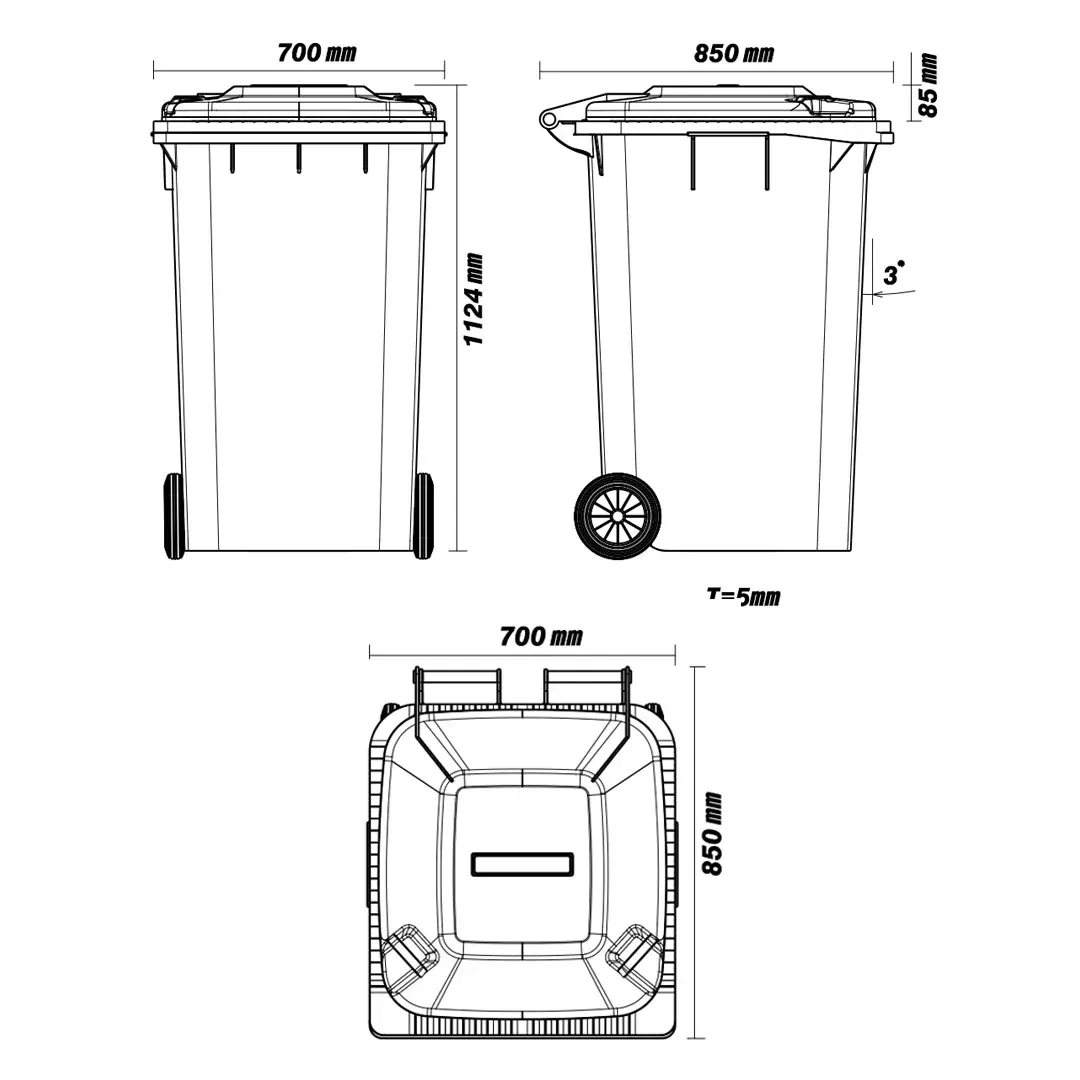

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 27.56 × 33.46 × 44.25 in (700 × 850 × 1124 mm) |
| Capacity | 95.1 US gal (360 L) |
| Wall Thickness | 5 mm |
| Dimensional Tolerance | ± 5 mm |
| Rated Payload | 317.47 lb (144 kg) |
| Construction | |
| Construction | Ribbed body with a lifting comb bar across the front rim, drawn with a 3° taper |
| Lid | Hinged silent lid, 85 mm deep |
| Wheels | Two, 7.87 in (200 mm) diameter |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Moisture |
| Wash-Down | Washable and suitable for disinfection |
| Design Standard | EN 840-1 and EN 840-6 |
| Handling and freight | |
| Net Weight | 48.50 lb (22 kg) |
| Placement | Outdoor |
| Colour and branding | |
| Colour | Yellow, dark green, charcoal grey, blue, red or light green |
| Branding | Printed |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All waste recycling bins
11 models ranked by capacity.
4 models ranked by rated payload.
The wall steps up from 3 mm to 5 mm. A 360 L bin full of waste is around 144 kg on two wheels, and the extra section is what stops the body flexing when it is tipped against a lifter.
No pedal option. There is one datasheet and no options, which fits the size: a bin this large is emptied by a vehicle rather than opened by foot at a doorway.
Built to the EN 840-1 and EN 840-6 dimensions and design requirements.
Outdoor use, as the specification states. Residential blocks, retail yards, workshops, factories and municipal rounds.
Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:
The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.
Rated −4 to +104 °F (−20 to +40 °C), the lower of the two figures in circulation for this bin.
Six standard colours: yellow, dark green, charcoal grey, blue, red and light green. Printed branding. Dimensions carry a ±5 mm production tolerance.
In this film
Answered from the WB-360’s published specification. Anything else, ask on the quotation and it is answered in writing.
95.1 US gal (360 L). Rated payload 317.47 lb (144 kg).
27.56 × 33.46 × 44.25 in (700 × 850 × 1124 mm). Dimensional tolerance ± 5 mm.
48.50 lb (22 kg) net.
Wheels: Two, 7.87 in (200 mm) diameter. Lid: Hinged silent lid, 85 mm deep.
EN 840-1 and EN 840-6.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to moisture. Washable and suitable for disinfection.
Colours: Yellow, dark green, charcoal grey, blue, red or light green. Logo: printed.
Yes. The WB-360 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
