Two builds
- Standard: hinged silent lid, two wheels.
- Pedal: the same bin with a foot treadle and a linkage to the lid.

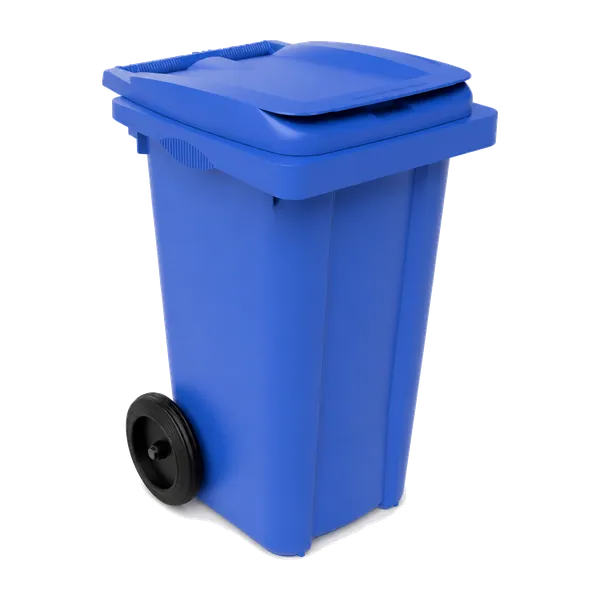

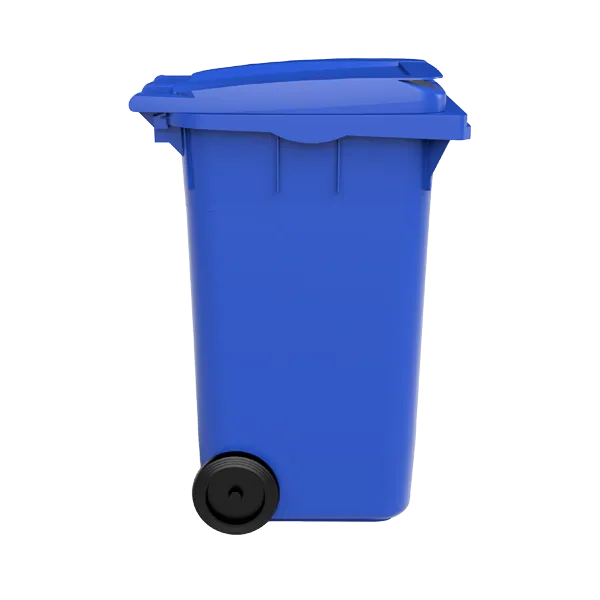

240 L Wheelie Bin
WB-24022.24 × 28.94 × 41.93 in (565 × 735 × 1065 mm)
The 240 L is the workhorse of the wheeled range: big enough for a week's waste from a small block, still light enough for one person to wheel out on two 200 mm wheels.

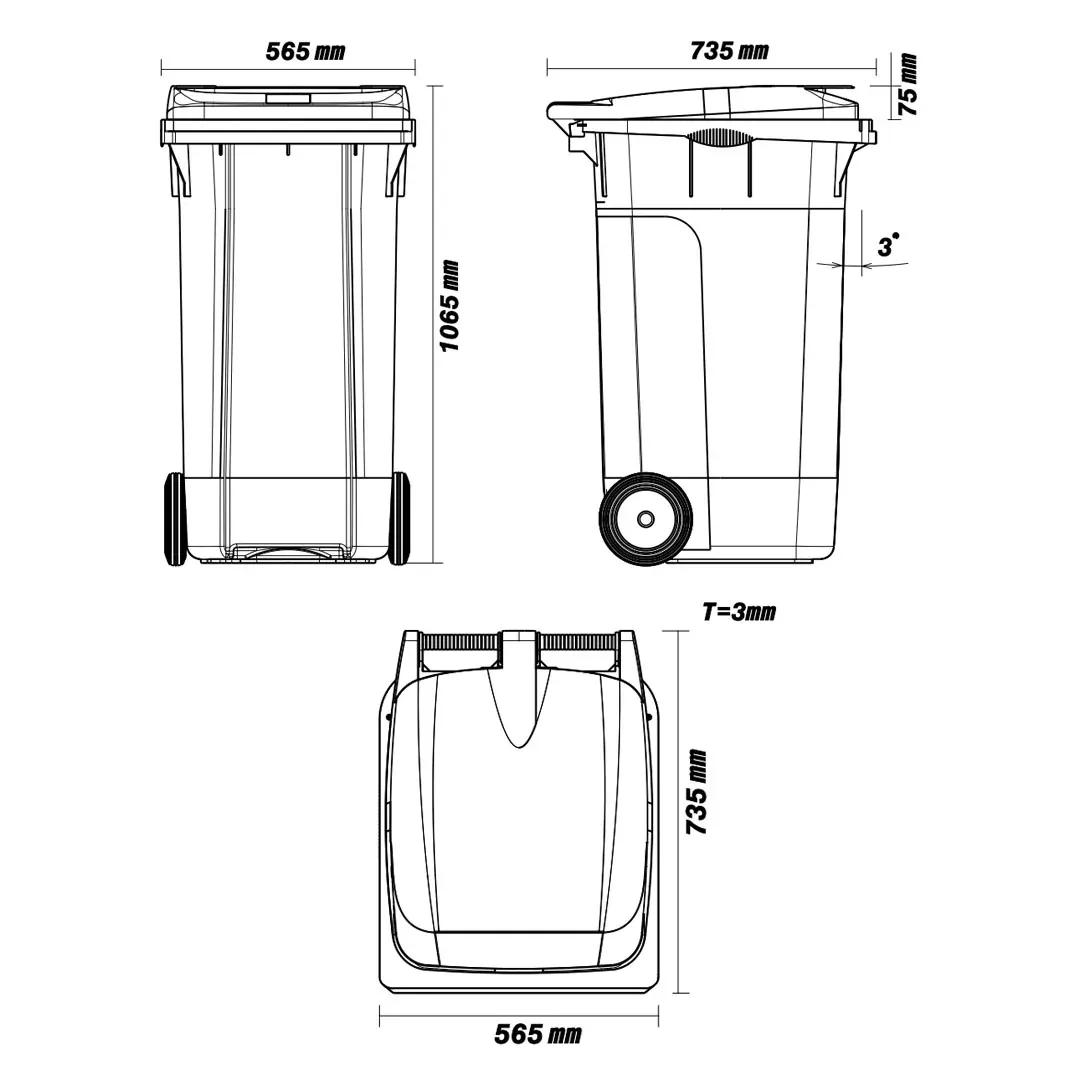

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
- Capacity
- 63.4 US gal240 L5th largest of 11 waste recycling bins
- Rated Payload
- 211.64 lb96 kg3rd highest of 4 waste recycling bins
- Net Weight
- 29.76 lb13.5 kg7th lightest of 11 waste recycling bins
Request a quotation
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
Figures for the base build. 2 builds compared in the specification
Specification
| Size and load ratings | |
|---|---|
| Size | 22.24 × 28.94 × 41.93 in (565 × 735 × 1065 mm) |
| Capacity | 63.4 US gal (240 L) |
| Wall Thickness | 3 mm |
| Dimensional Tolerance | ± 5 mm |
| Rated Payload | 211.64 lb (96 kg) |
| Construction | |
| Construction | Ribbed body with a lifting comb bar across the front rim, drawn with a 3° taper |
| Lid | Hinged silent lid, 75 mm deep |
| Wheels | Two, 7.87 in (200 mm) diameter |
| Pedal Option | Available as a separate build |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Moisture |
| Wash-Down | Washable and suitable for disinfection |
| Design Standard | EN 840-1 and EN 840-6 |
| Handling and freight | |
| Net Weight | 29.76 lb (13.5 kg) |
| Placement | Outdoor |
| Colour and branding | |
| Colour | Yellow, dark green, charcoal grey, blue, red or light green |
| Branding | Printed |
Standard selected. SKU WB-240.
Where the WB-240 sits among 11 waste recycling bins
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All waste recycling bins
11 models ranked by capacity.
4 models ranked by rated payload.
Dimensions
- 63.4 US gal (240 L)
- 22.24 × 28.94 × 41.93 in (565 × 735 × 1065 mm), plus a 75 mm lid
- 29.76 lb (13.5 kg)
- Rated payload 211.64 lb (96 kg)
- 7.87 in (200 mm) wheels · 3 mm wall
A figure of 1050 × 725 × 570 mm is also in circulation, a few millimetres off the datasheet in each direction. We publish the datasheet figures, which the drawing and the specification table both confirm.
Design standard
Built to the EN 840-1 and EN 840-6 dimensions and design requirements. The lifting comb bar across the front rim is what the collection vehicle engages.
Where it belongs
Outdoor use, as the specification states: residential blocks, shops, workshops, factories and municipal rounds. It is sometimes described as indoor, which sits oddly beside the municipal use it is named for.
The range, end to end
Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:
- 45 L 1.7 kg, indoor
- 50 L 6 kg, post or wall mounted
- 60 L 3 kg, indoor, pedal option
- 65 L 2.7 kg, indoor
- 100 L 7.9 kg, two wheels, pedal option
- 120 L 8.8 kg, two wheels, pedal option
- 240 L 13.5 kg, two wheels, pedal option (this one)
- 360 L 22 kg, two wheels
- 660 L 38 kg, four castors
- 770 L 46 kg, four castors
- 1100 L 64 kg, four castors
The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.
Temperature
Rated −4 to +104 °F (−20 to +40 °C), the lower of the two figures in circulation for this bin.
Colour and branding
Six standard colours: yellow, dark green, charcoal grey, blue, red and light green, which is how a site keeps its streams apart without a label. Printed branding. Dimensions carry a ±5 mm production tolerance.
The WB-240 on film
In this film
Frequently asked questions
Answered from the WB-240’s published specification. Anything else, ask on the quotation and it is answered in writing.
How much does the 240 L wheelie bin (WB-240) hold?
63.4 US gal (240 L). Rated payload 211.64 lb (96 kg).
What are the dimensions of the 240 L wheelie bin (WB-240)?
22.24 × 28.94 × 41.93 in (565 × 735 × 1065 mm). Dimensional tolerance ± 5 mm.
How much does the 240 L wheelie bin (WB-240) weigh?
29.76 lb (13.5 kg) net.
What wheels and lid does the 240 L wheelie bin (WB-240) have?
Wheels: Two, 7.87 in (200 mm) diameter. Lid: Hinged silent lid, 75 mm deep. Pedal: available as a separate build.
Which standard is the 240 L wheelie bin (WB-240) built to?
EN 840-1 and EN 840-6.
What is the 240 L wheelie bin (WB-240) made of?
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to moisture. Washable and suitable for disinfection.
Can the 240 L wheelie bin (WB-240) be supplied in our colour, with our logo?
Colours: Yellow, dark green, charcoal grey, blue, red or light green. Logo: printed.
Is there a datasheet for the 240 L wheelie bin (WB-240)?
Yes. The WB-240 datasheet is a PDF on this page with the full specification table and the load figures. Each of the 2 builds has its own sheet; choose the build to download the matching one.
How much does the 240 L wheelie bin (WB-240) cost?
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
