50 L Litter Bin, Post or Wall Mounted

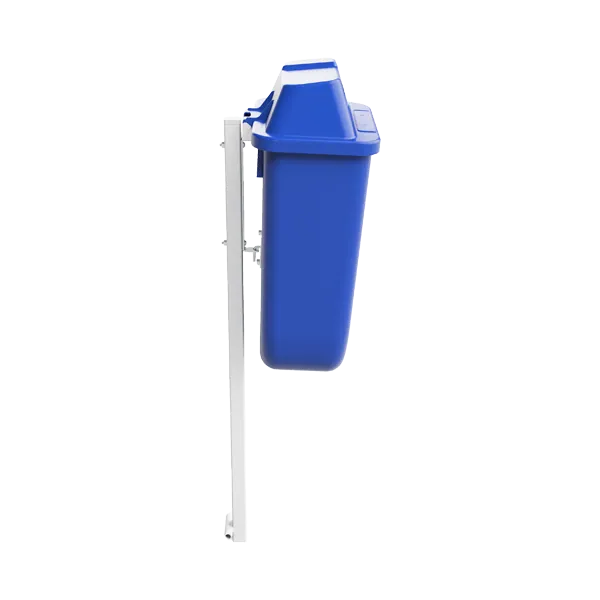

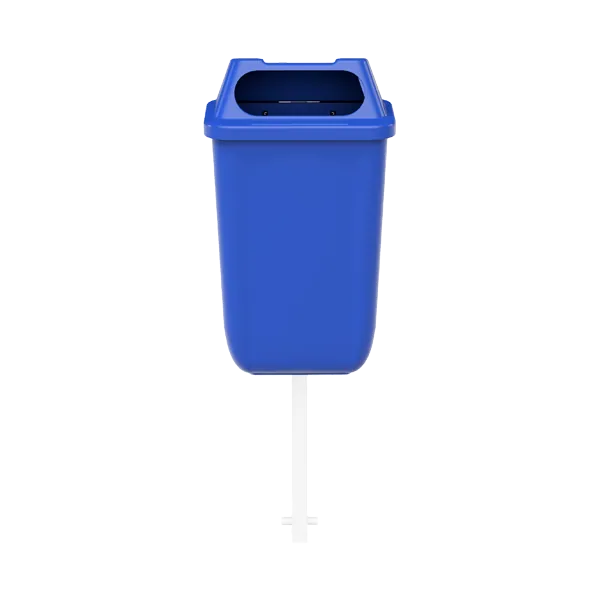

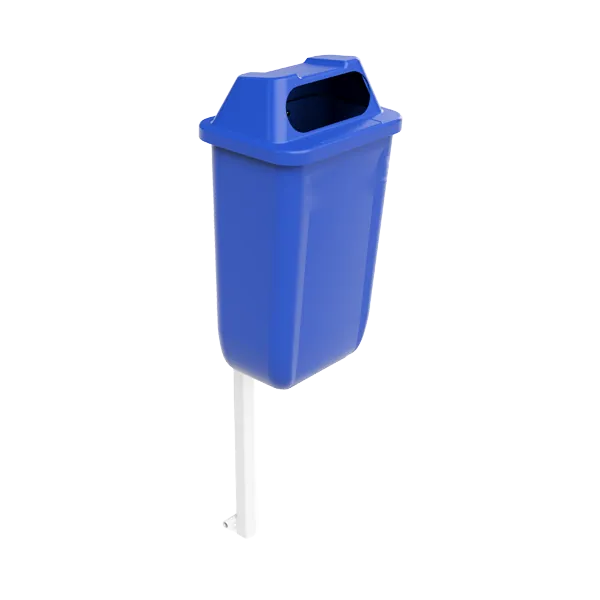

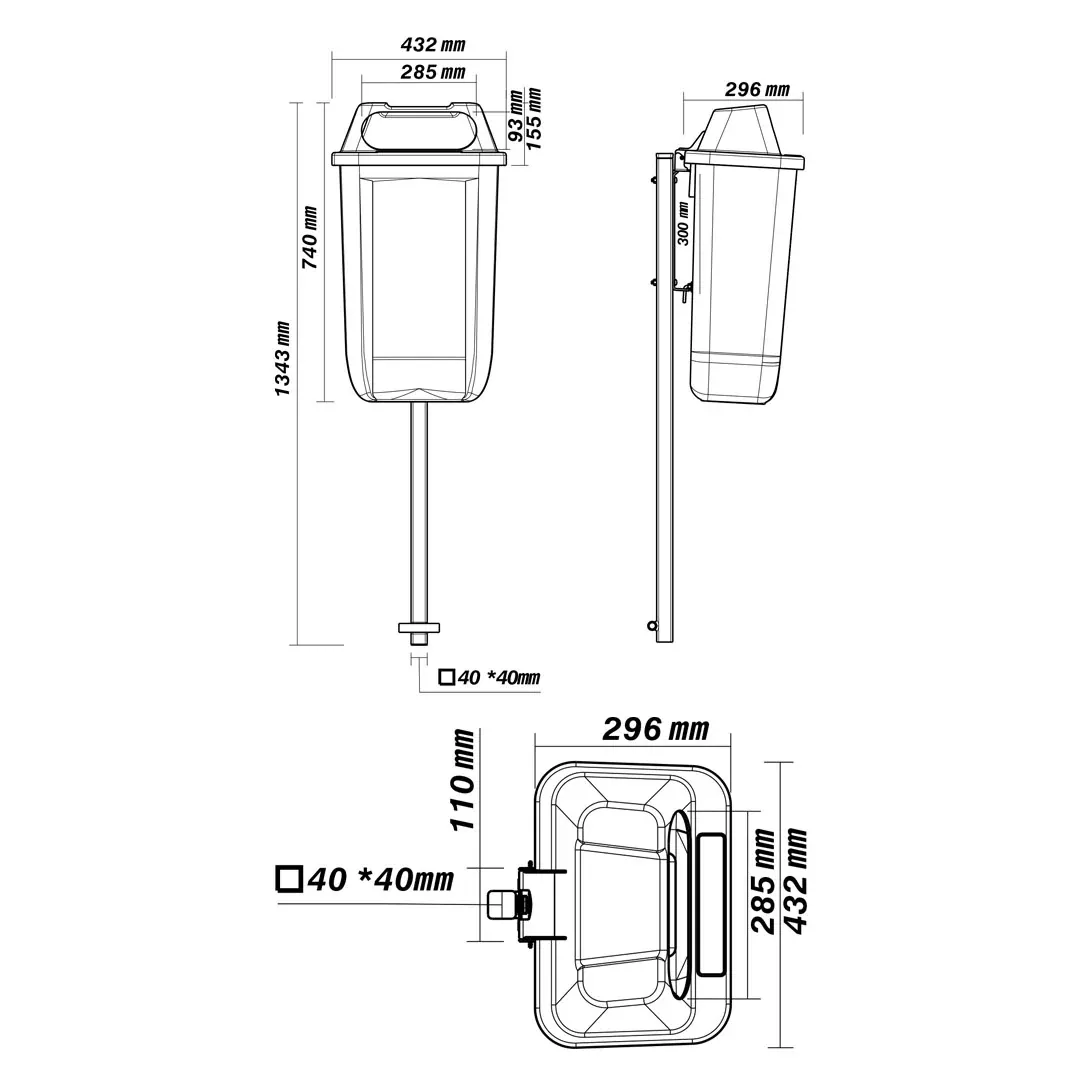

• Post mounted: one bin on a 40 × 40 mm square post, 1343 mm to the

top. The usual choice for a walkway or a forecourt.

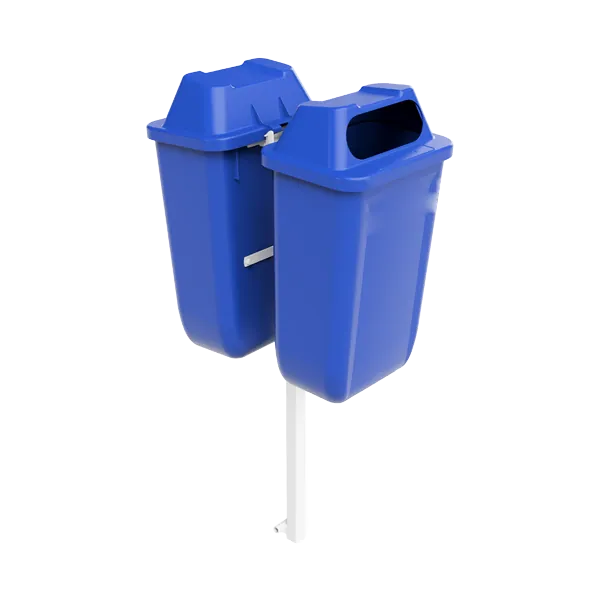

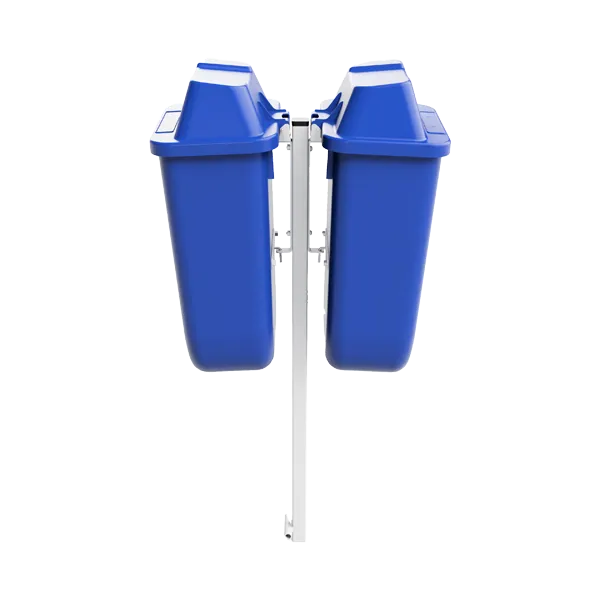

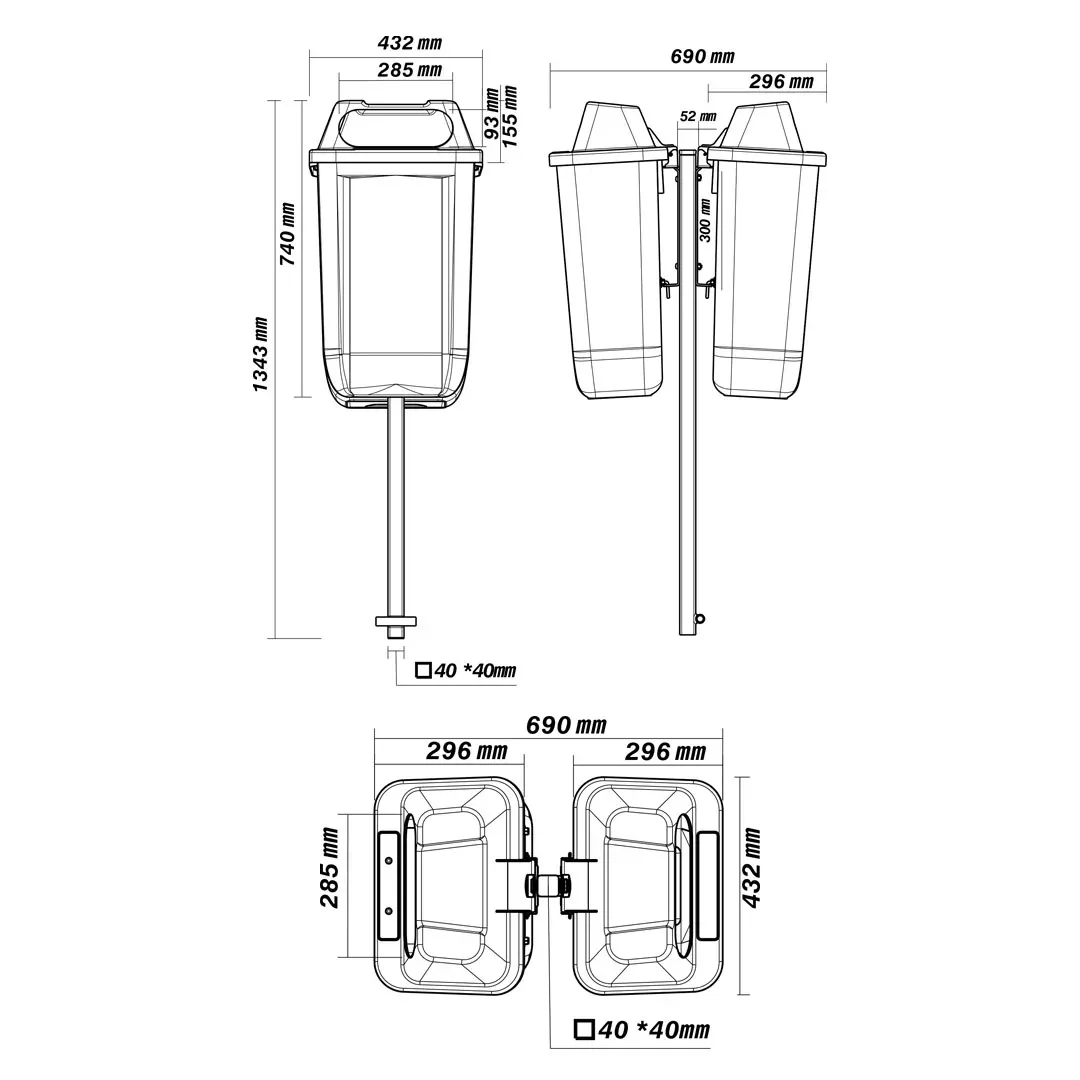

• Twin post: two bodies back to back on one post, 690 mm across, for

splitting waste from recycling at a single point.

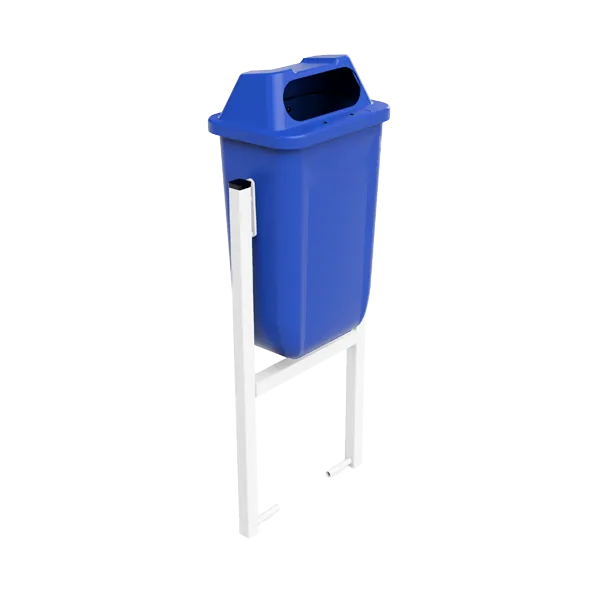

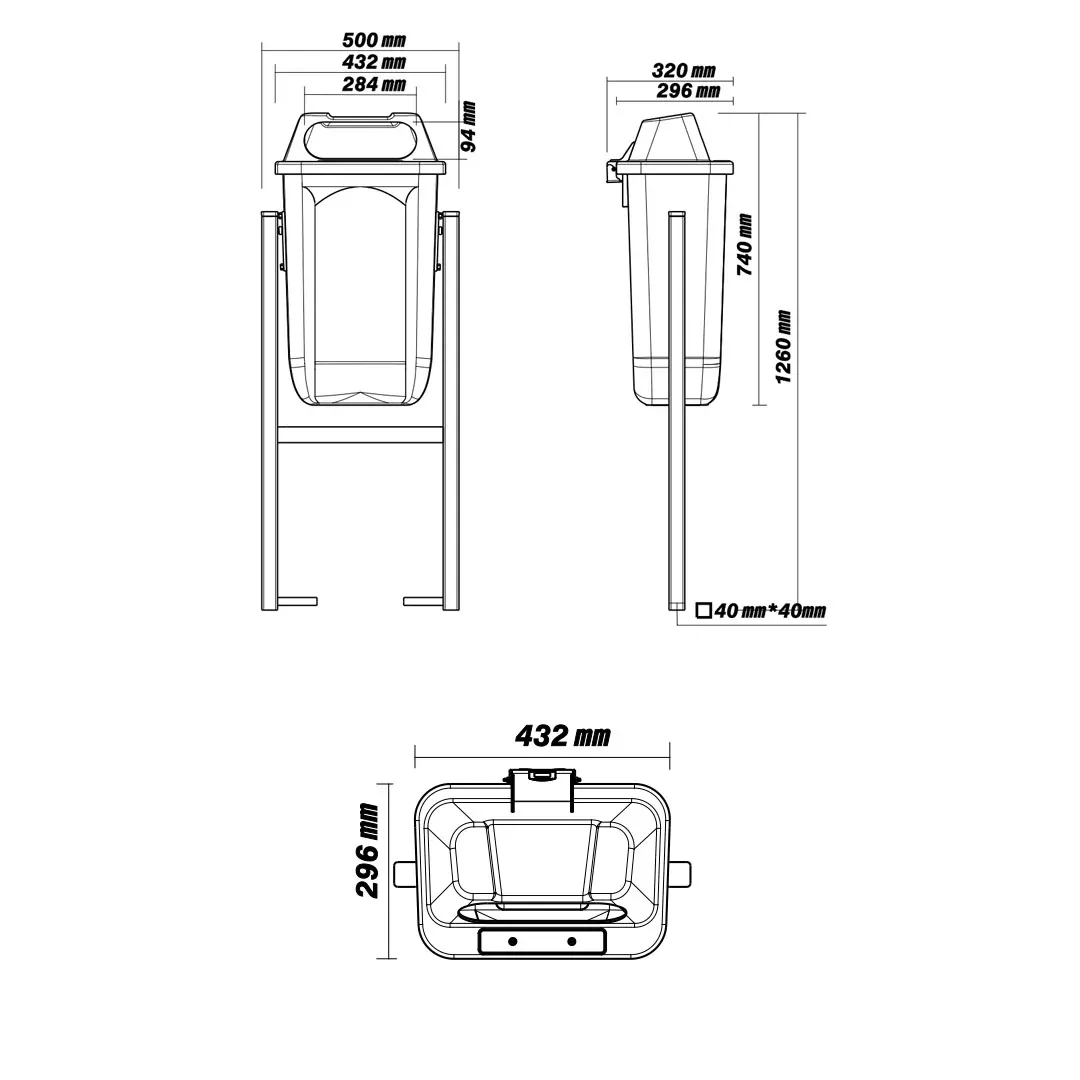

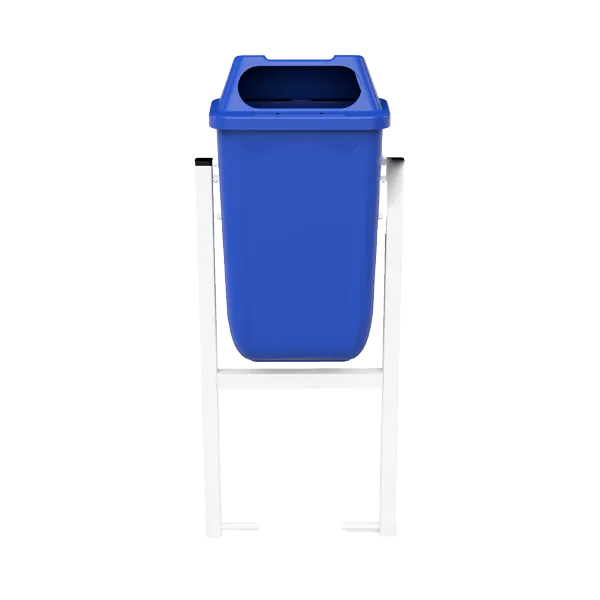

• Floor stand: the same body in a tubular frame, 1260 mm tall on a

500 mm footprint, so it can be repositioned without groundwork.

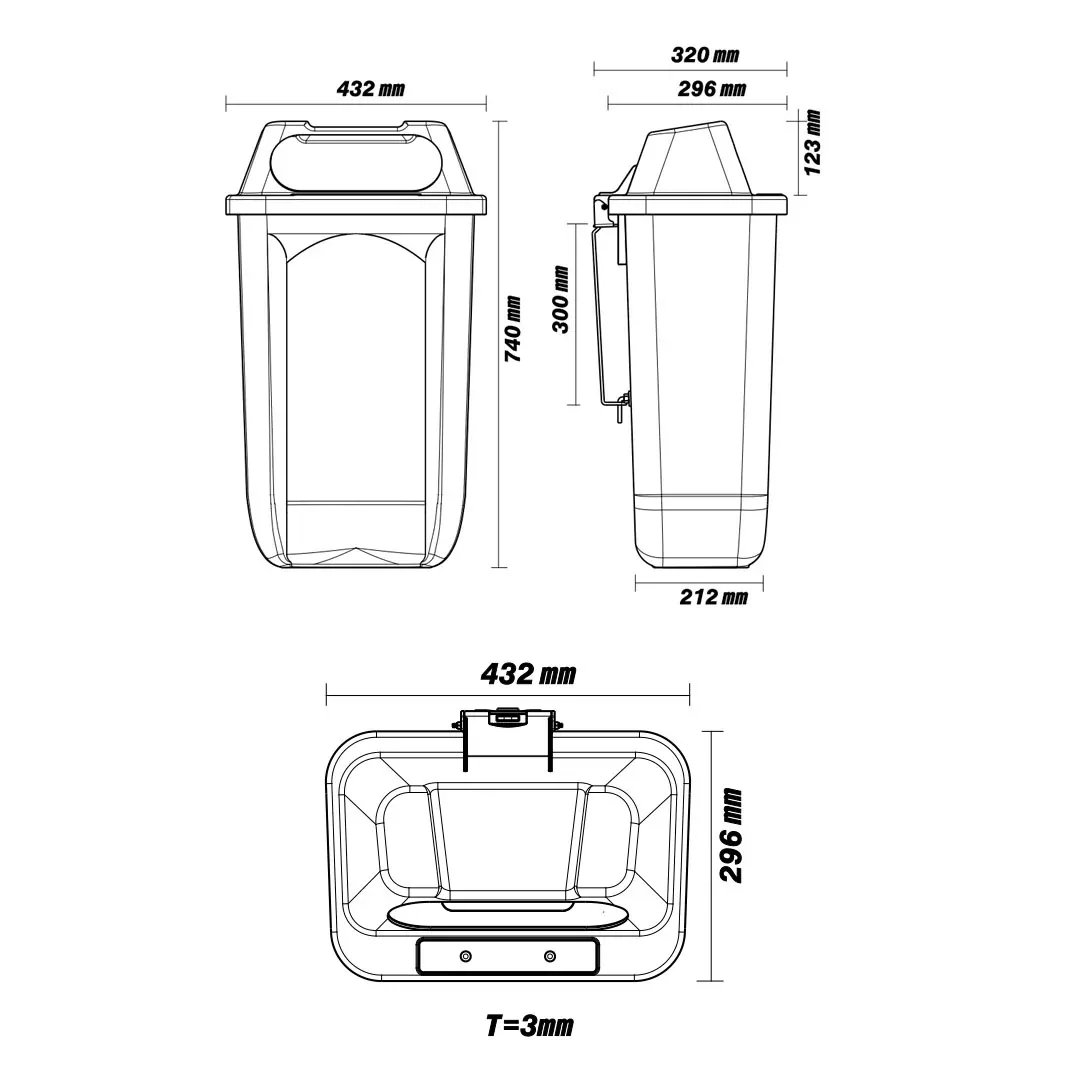

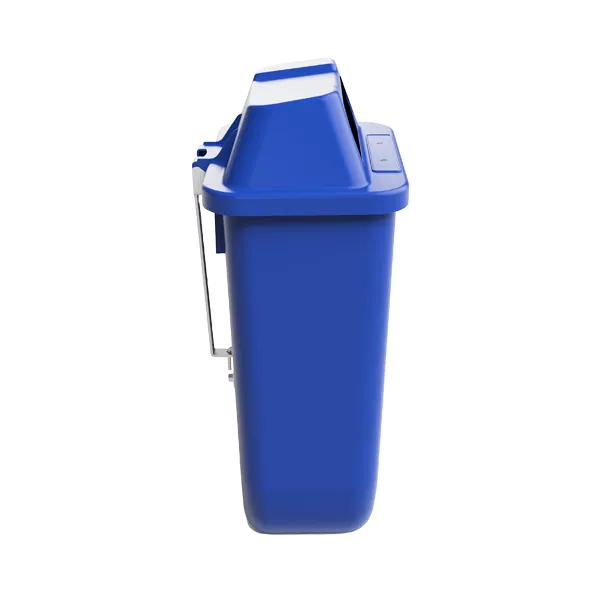

• Wall mounted: bracket only, 740 mm overall. The lightest build at

8.16 lb (3.7 kg).

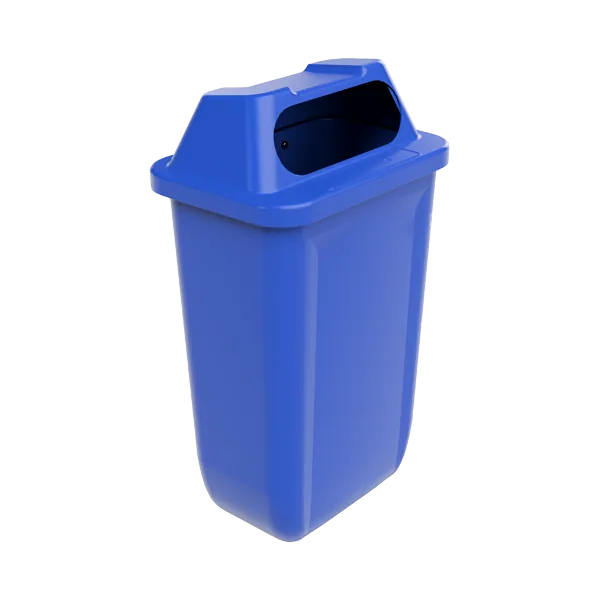

The body is the same in all four: 17.01 × 11.65 in (432 × 296 mm) in plan, 3 mm wall, with a hood over an opening that runs the full width.

13.2 US gal (50 L) on every build. What changes between them is the mounting weight, from 3.7 kg on the wall bracket to 12.5 kg on the floor stand.

We list it as outdoor. It is sometimes described as suitable for indoor use, but the specification marks it outdoor and not indoor, and every published view shows it on a street post. Tell us the site and we will confirm the fixing.

Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:

• 45 L 1.7 kg, indoor
• 50 L 6 kg, post or wall mounted (this one)
• 60 L 3 kg, indoor, pedal option
• 65 L 2.7 kg, indoor
• 100 L 7.9 kg, two wheels, pedal option
• 120 L 8.8 kg, two wheels, pedal option
• 240 L 13.5 kg, two wheels, pedal option
• 360 L 22 kg, two wheels
• 660 L 38 kg, four castors
• 770 L 46 kg, four castors
• 1100 L 64 kg, four castors

The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.

Rated −4 to +104 °F (−20 to +40 °C). As across this range, a +60 °C figure is in circulation where the specification says +40, and we publish the lower figure.

Six standard colours: yellow, dark green, charcoal grey, blue, red and light green, with other colours to order. Printed branding, with an obvious use: a bin at a public entrance is a sign that happens to hold litter. Dimensions carry a ±5 mm production tolerance.
