Stocked in North York, ON
WB-12018.70 × 22.24 × 40.94 in (475 × 565 × 1040 mm)
The 120 L is the standard kerbside wheelie bin: two wheels, a hinged lid, and the size most collection rounds are built around.

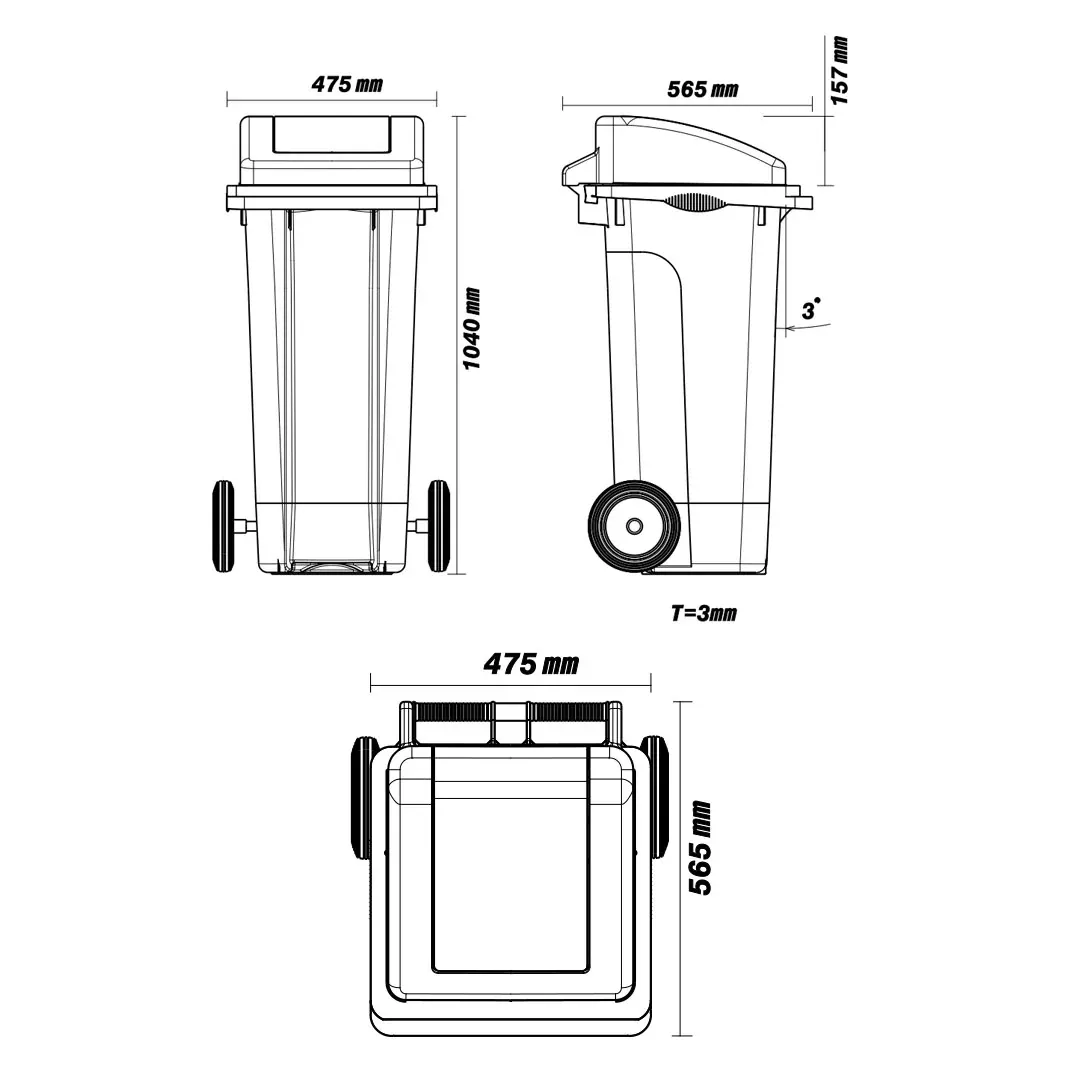

Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
Figures for the base build. 2 builds compared in the specification
| Size and load ratings | |
|---|---|
| Size | 18.70 × 22.24 × 40.94 in (475 × 565 × 1040 mm) |
| Capacity | 31.7 US gal (120 L) |
| Wall Thickness | 3 mm |
| Dimensional Tolerance | ± 5 mm |
| Construction | |
| Construction | Ribbed body with a lifting comb bar across the front rim, drawn with a 3° taper |
| Lid | Hinged silent lid, 157 mm deep |
| Wheels | Two |
| Pedal Option | Available as a separate build |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Moisture |
| Wash-Down | Washable and suitable for disinfection |
| Design Standard | EN 840-1 and EN 840-6 |
| Handling and freight | |
| Net Weight | 19.40 lb (8.8 kg) |
| Placement | Outdoor |
| Colour and branding | |
| Colour | Yellow, dark green, charcoal grey, blue, red or light green |
| Branding | Printed |
Standard selected. SKU WB-120.
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All waste recycling bins
11 models ranked by capacity.
As on the 100 L, the same 8.8 kg is published for both. We repeat it rather than estimate the pedal gear. Ask us if shipping weight is part of your calculation.
A figure of 950 × 540 × 480 mm and 9 kg is also in circulation. The datasheet, the drawing and the specification table all agree on the figures above, so those are the figures we publish.
Tell us what you are putting in it and we will advise.
Built to the EN 840-1 and EN 840-6 dimensions and design requirements, so it lifts on standard comb equipment.
Outdoor use, as the specification states. Residential blocks, shops, workshops, factories and municipal rounds.
Eleven sizes, from a bin that goes under a counter to a container a collection vehicle lifts:
The wall follows the size. 3 mm holds from the 45 L all the way to the 240 L, and then steps up: 5 mm on the 360, 5.7 on the 660, 6 on the 770 and 7 on the 1100. Each figure is the section marked on the drawing for that size.
Rated −4 to +104 °F (−20 to +40 °C), the lower of the two figures in circulation for this bin.
Six standard colours: yellow, dark green, charcoal grey, blue, red and light green. Printed branding. Dimensions carry a ±5 mm production tolerance.
In this film
Answered from the WB-120’s published specification. Anything else, ask on the quotation and it is answered in writing.
31.7 US gal (120 L).
18.70 × 22.24 × 40.94 in (475 × 565 × 1040 mm). Dimensional tolerance ± 5 mm.
19.40 lb (8.8 kg) net.
Wheels: Two. Lid: Hinged silent lid, 157 mm deep. Pedal: available as a separate build.
EN 840-1 and EN 840-6.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to moisture. Washable and suitable for disinfection.
Colours: Yellow, dark green, charcoal grey, blue, red or light green. Logo: printed.
Yes. The WB-120 datasheet is a PDF on this page with the full specification table and the load figures. Each of the 2 builds has its own sheet; choose the build to download the matching one.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
