48×40 Rigid Bulk Container, 36 in, 2-Runner, Perforated Walls

Air moves through it. That matters for produce that respires or sheds field heat, for anything washed and left to drain, and anywhere a load would sweat inside a closed box.

It also costs you nothing structurally. Every rating is identical to the closed box, including racking, and the perforation makes it 2.20 lb lighter.

The trade is obvious and worth stating: fines, powders and small loose parts will escape through the slots. If that is your load, take the closed RC-121 instead.

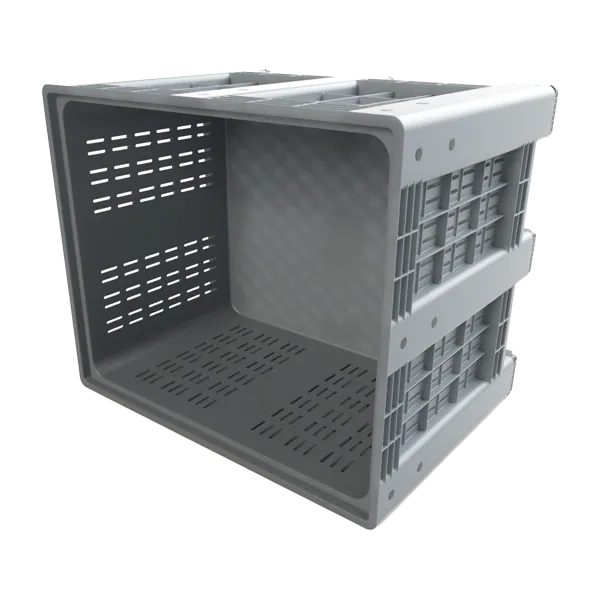

The slots are not only in the walls: the cutaway render shows the same slot pattern running through the base. That is what you want for drainage and for air moving upward through a load, and it is worth knowing before you fill it with anything fine. Ask us if the base specification matters to you and we will confirm it.

• Outside 47.24 × 39.37 × 36.02 in (1200 × 1000 × 915 mm)
• Inside 43.70 × 35.43 × 27.56 in (1110 × 900 × 700 mm)
• 185 US gal (700 L)
• 98.11 lb (44.5 ± 0.5 kg)

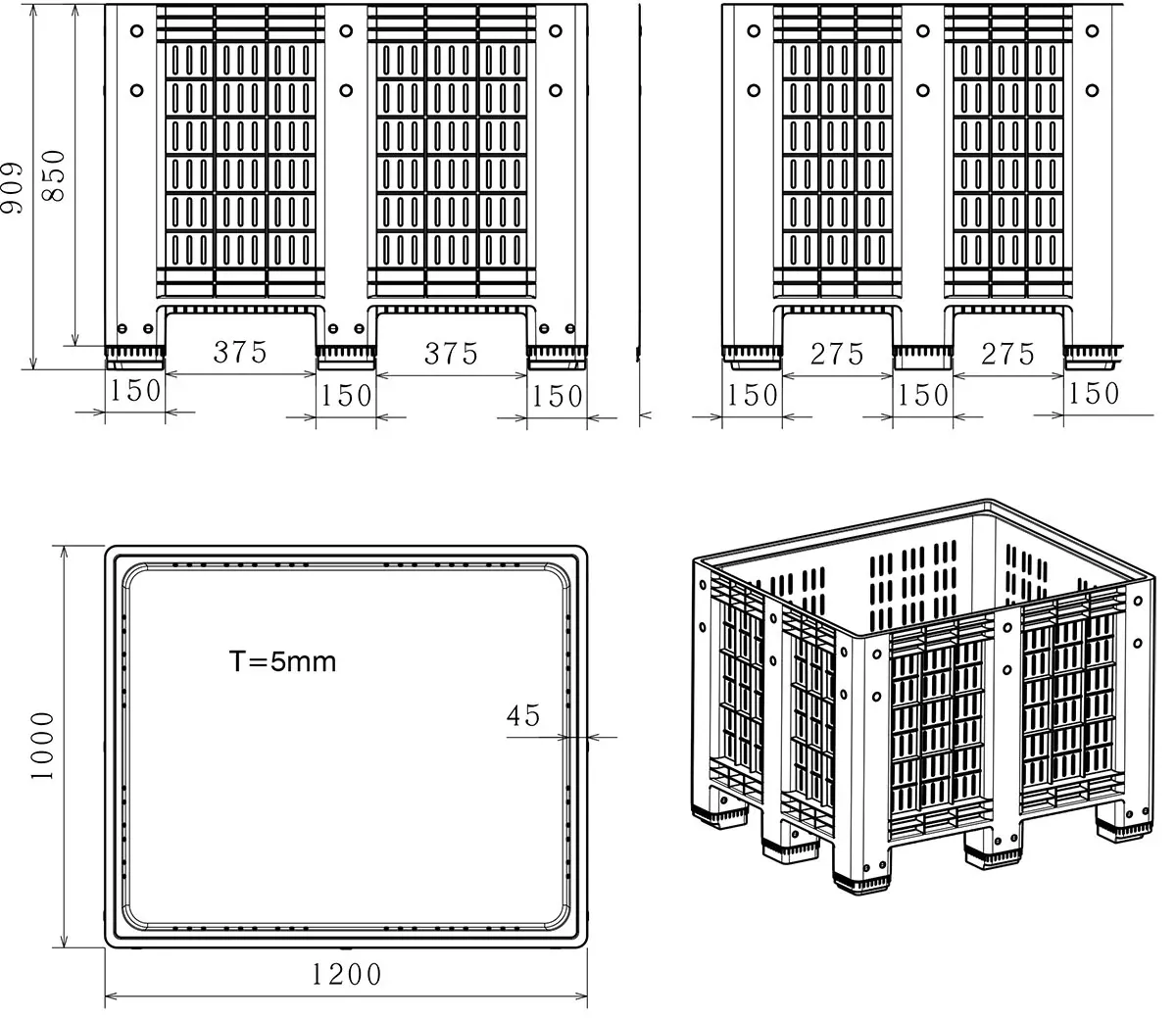

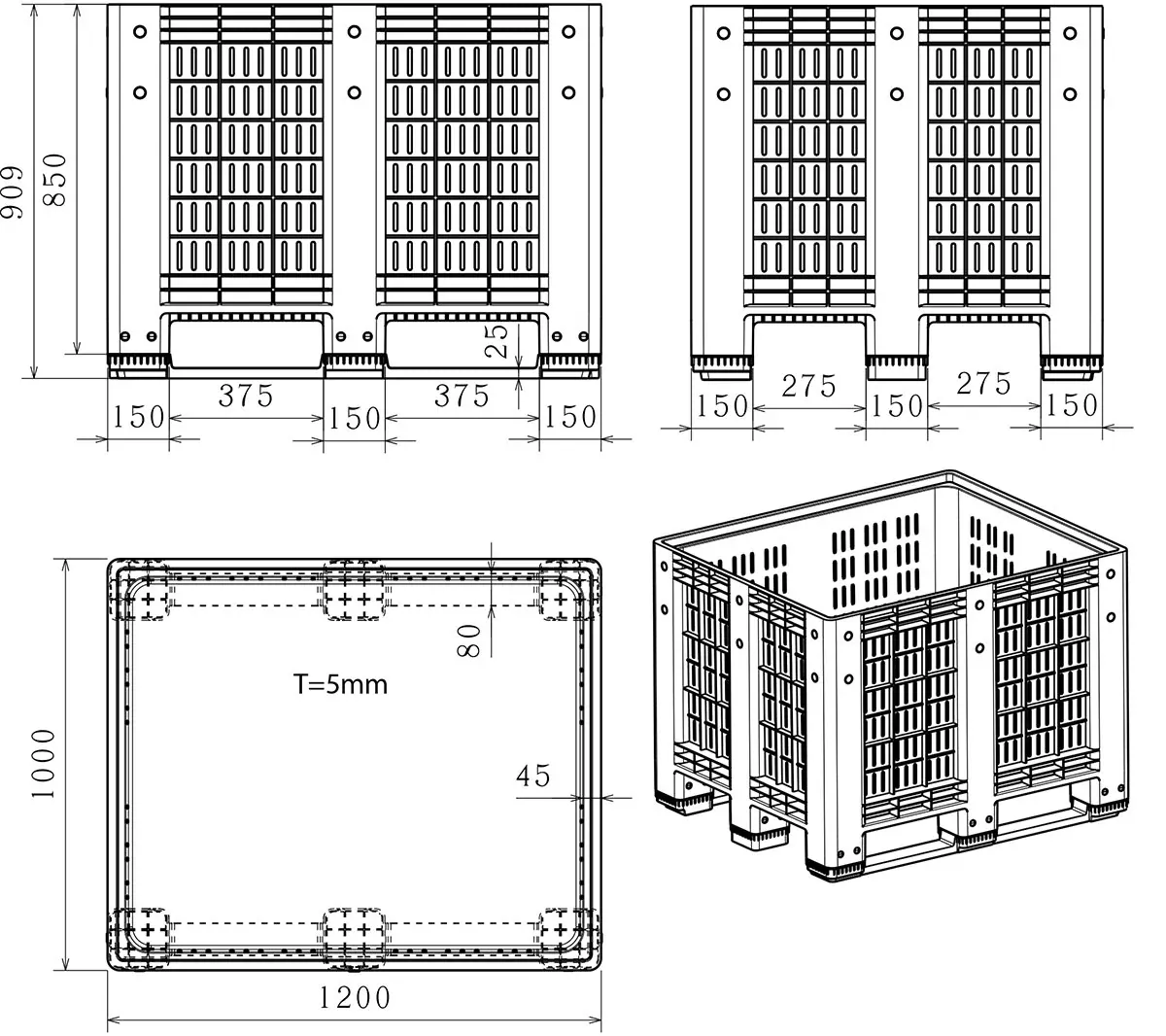

The drawing gives the as-moulded height as 909 mm against the nominal 915, and splits it into an 850 mm box on 59 mm of base. The wall section is 45 mm at the ends, which is the 90 mm the 1200 mm outside loses against the 1110 mm inside. Dimensions carry a ±5 mm production tolerance.

• Static load 11,023 lb (5,000 kg)
• Stacking load 11,023 lb (5,000 kg)
• Dynamic load 2,205 lb (1,000 kg)
• Racking load 2,205 lb (1,000 kg), on the runner build only

All assume an evenly distributed load. The runners are what make it rack-capable.

The base snaps on, and the box comes either way:

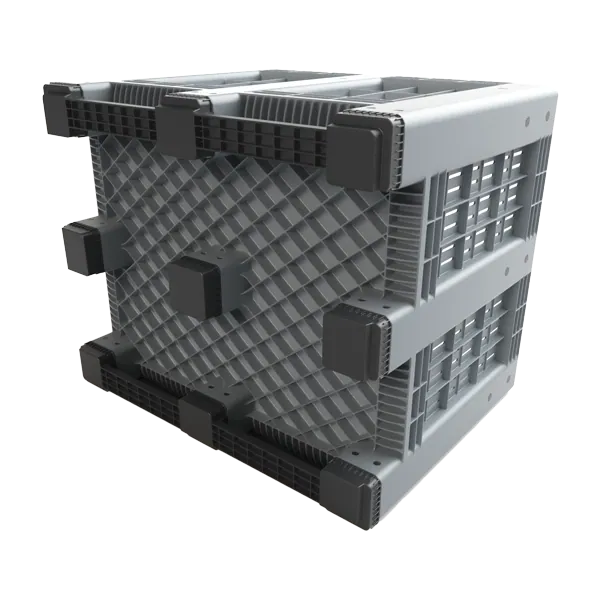

• RC-123, two runners, 98.11 lb. The runners are what make it

rack-capable, and it carries a published racking load of 2,205 lb (1,000 kg).

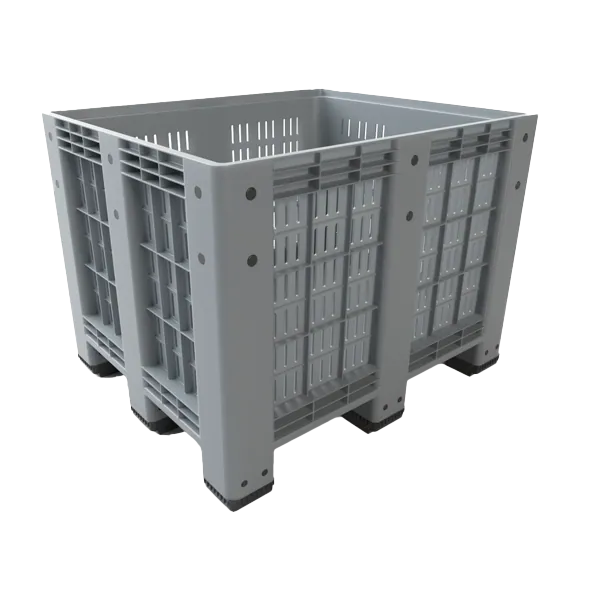

• RC-123-9L, nine legs, 95.90 lb. What it gains is **pallet jack

access from all four sides**.

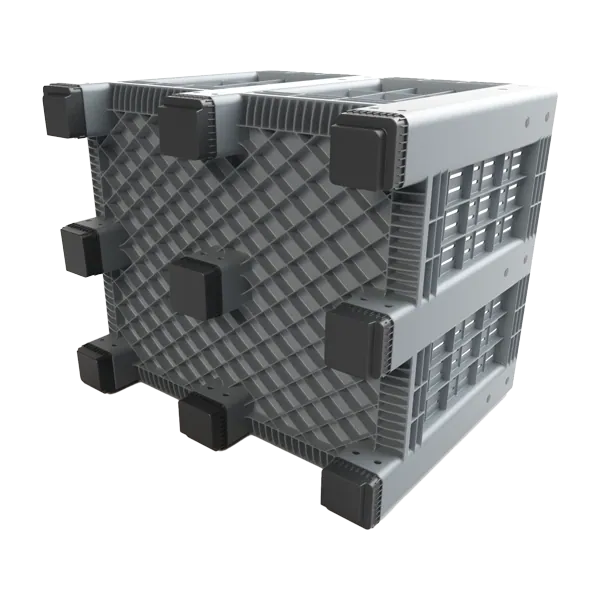

Everything else is identical: envelope, interior, capacity, static, stacking and dynamic loads, and freight. Nine feet, 150 mm across, leaving clear openings of 375 mm along the long side and 275 mm along the short side. The underside is a diamond rib lattice.

You may see this box listed with Solid Walls. That wording repeats the solid box word for word, so it reads as boilerplate rather than a claim about this product. The datasheet and every render say perforated, and we publish perforated.

Vegetables, fresh and dried fruit, nuts, small parts and bulk goods, across the food industry, agriculture and industrial production. It adapts very well to automatic conveying systems, and the material is food-grade.

Handled with a forklift, reach truck or hand pallet jack.

Washable and suitable for disinfection, and it drains and dries faster than a closed box. Resistant to water, to airborne environmental pollutants and to corrosive chemicals.

Logo printed or embossed, both offered, in an 80 × 70 mm panel on the centre pillar of the long wall. RFID transponders can be integrated. Supplied in grey, white, navy or blue, with other colours to order.

104 per jumbo trailer and 84 in a 40 ft high cube, the same as every other box on this envelope.
