Stocked in North York, ON
RC-12447.24 × 39.37 × 36.02 in (1200 × 1000 × 915 mm)

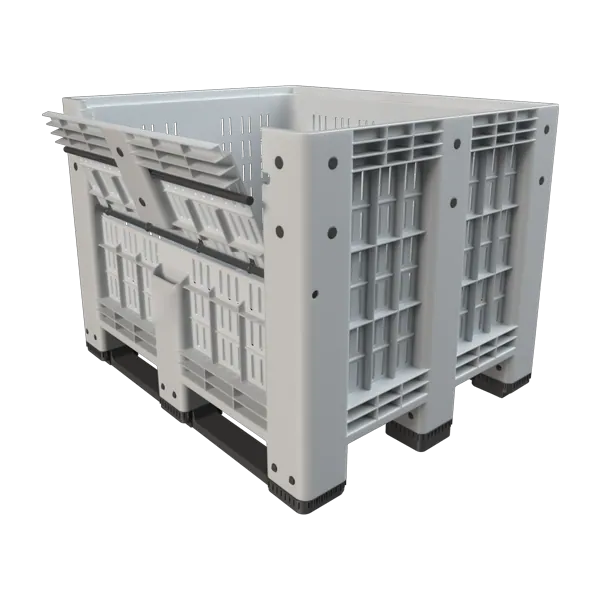

The RC-124 is a closed-walled bulk container with a drop door: a hinged panel in one long wall swings down so the box can be emptied without tipping it.
Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 47.24 × 39.37 × 36.02 in (1200 × 1000 × 915 mm) |
| As-Moulded Size | 1200 × 1000 × 910 mm, against the nominal 1200 × 1000 × 915 |
| Inside Dimensions | 43.70 × 35.43 × 27.56 in (1110 × 900 × 700 mm) |
| Capacity | 185 US gal (700 L) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 11,023 lb (5,000 kg) |
| Dynamic Load | 2,205 lb (1,000 kg) |
| Racking Load | 2,205 lb (1,000 kg) |
| Stacking Load | 11,023 lb (5,000 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Bottom Type | 2-Runner (snap-on) |
| Construction | Closed walls on an external rib grid, rounded corners; 850 mm box on 60 mm snap-on base; drawing notes a 5 mm section |
| Wall Type | Closed walls and base, with a drop door in one long wall |
| Base Openings | 375 mm clear on the long side, 275 mm on the short side, between nine 150 mm feet |
| Base Advantage | Runners make it capable of racking systems |
| Discharge | Drop door in one long wall |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Water, environmental pollutants, corrosive chemicals |
| Wash-Down | Washable and suitable for disinfection |
| Food Contact | Food-grade material; certification available on request |
| Handling and freight | |
| Net Weight | 97.00 lb (44 ± 0.5 kg) |
| Handling | Forklift, reach truck, hand pallet jack |
| Automation | Adapts to automatic conveying systems |
| Application | Food industry, agriculture, industrial production |
| Truck Load | 104 pcs per jumbo trailer |
| Container Load (40 HC) | 84 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed or embossed |
| Logo Insert Areas | Centre leg 80 × 70 mm |
| RFID | Transponder integration available |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All bulk containers
9 models ranked by capacity.
9 models ranked by static load.
8 models ranked by stacking load.
Four boxes share this envelope. Two ways of getting the load out, two wall types:
If your load needs air, the perforated RC-123 is the one to look at. This is the closed box, for anything fine or loose that must stay in.
Honestly, very little. Same envelope, same 700 litres, same four load ratings, same freight, same door. Two things separate them:
pallet jack access from all four sides. This one is runners only.
If you are choosing between the two, the base is the question, and it is worth a call rather than a guess.

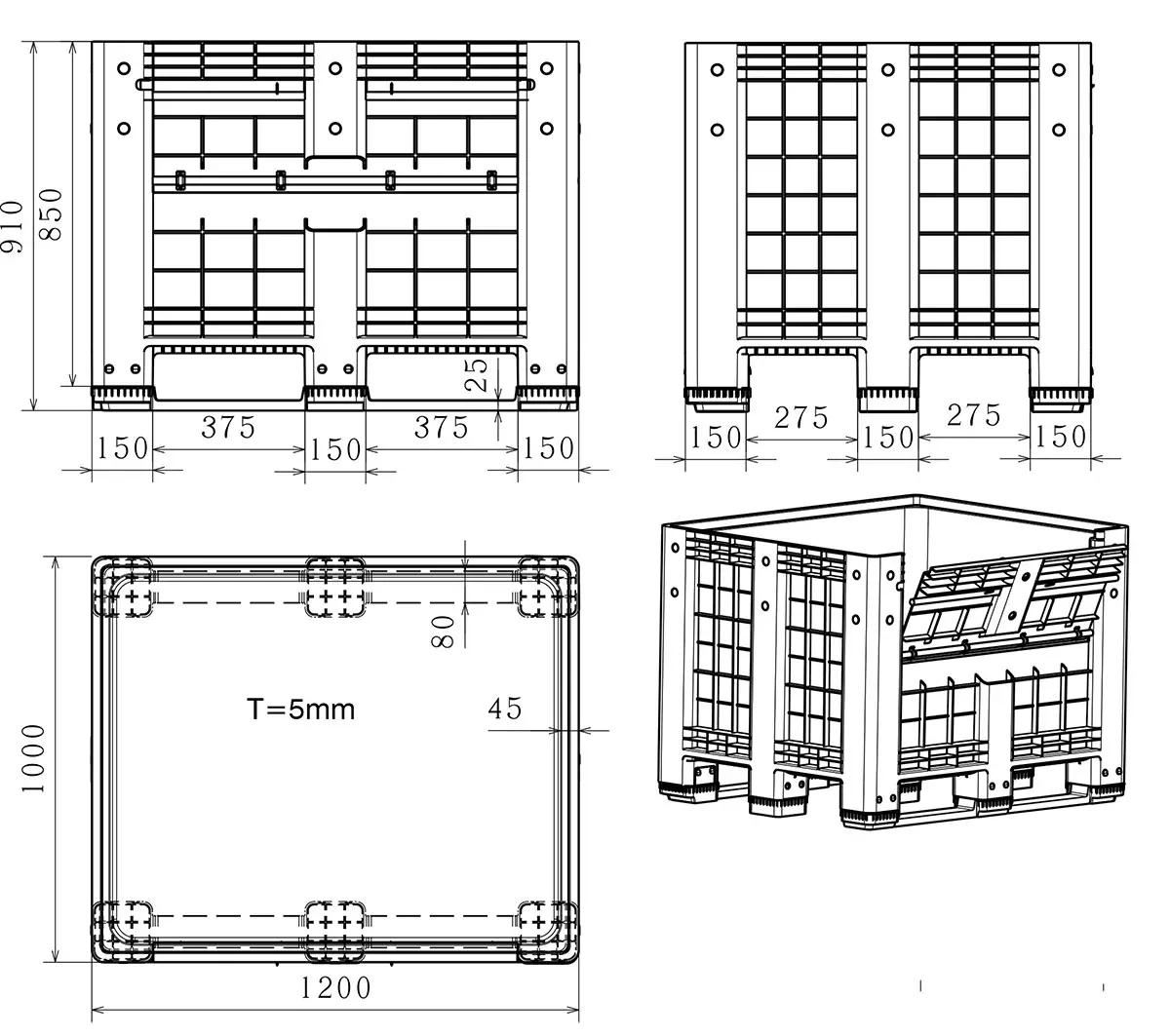

The drawing gives the as-moulded height as 910 mm against the nominal 915, and splits it into an 850 mm box on 60 mm of base. The wall section is 45 mm at the ends, which is the 90 mm the 1200 mm outside loses against the 1110 mm inside. Dimensions carry a ±5 mm production tolerance.
Ask us if the opening height matters and we will confirm the door depth.
All assume an evenly distributed load. Every rating matches the other three boxes on this envelope, so cutting a door through a wall costs this container nothing on paper. The runners are what make it rack-capable.
Two snap-on runners over nine feet, 150 mm across, leaving clear openings of 375 mm along the long side and 275 mm along the short side. The feet sit on a three by three grid and both chains close exactly on the 1200 × 1000 footprint.
Vegetables, fresh and dried fruit, nuts, small parts and bulk goods, across the food industry, agriculture and industrial production. It adapts very well to automatic conveying systems, and the material is food-grade.
Handled with a forklift, reach truck or hand pallet jack.
Washable and suitable for disinfection. Resistant to water, to airborne environmental pollutants and to corrosive chemicals.
Logo printed or embossed, both offered, in an 80 × 70 mm panel on the centre leg. RFID transponders can be integrated. Supplied in grey, white, navy or blue, with other colours to order.
104 per jumbo trailer and 84 in a 40 ft high cube, the same as every other box on this envelope.
Answered from the RC-124’s published specification. Anything else, ask on the quotation and it is answered in writing.
11,023 lb (5,000 kg) static and 2,205 lb (1,000 kg) dynamic, with 2,205 lb (1,000 kg) in racking. Stacking load 11,023 lb (5,000 kg). Ratings assume an evenly distributed load.
It carries a published racking load of 2,205 lb (1,000 kg).
185 US gal (700 L). Inside dimensions 43.70 × 35.43 × 27.56 in (1110 × 900 × 700 mm).
47.24 × 39.37 × 36.02 in (1200 × 1000 × 915 mm). As moulded: 1200 × 1000 × 910 mm, against the nominal 1200 × 1000 × 915. Dimensional tolerance ± 5 mm.
97.00 lb (44 ± 0.5 kg) net.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to water, environmental pollutants, corrosive chemicals. Food-grade material; certification available on request. Washable and suitable for disinfection.
104 pcs per jumbo trailer. 84 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed or embossed. Insert areas: Centre leg 80 × 70 mm. RFID: transponder integration available.
Yes. The RC-124 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
