Stocked in North York, ON
CB-19147.24 × 39.37 × 40.16 in (1200 × 1000 × 1020 mm)
The CB-191 is the 48×40 collapsible bulk container: a nine-leg pallet base, a folding sleeve and a lid, and it folds flat in a few steps.
Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. This product publishes fewer than three views, so the faces none of them show were inferred from the rest of the range. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 47.24 × 39.37 × 40.16 in (1200 × 1000 × 1020 mm) |
| As-Moulded Size | Drawing: pallet base 1186 × 986 mm, overall height 1035 mm, against the nominal 1200 × 1000 × 1020 |
| Inside Dimensions | 44.49 × 36.22 × 34.25 in (1130 × 920 × 870 mm) |
| Capacity | 238 US gal (900 L) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 1,102 lb (500 kg) |
| Dynamic Load | 551 lb (250 kg) |
| Stacking Load | 1,102 lb (500 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Bottom Type | 9-Leg |
| Construction | Nine-leg pallet base, folding sleeve and lid; rounded corners |
| Wall Type | Folding sleeve |
| Collapsing | Folds flat in a few steps; 80% less space on the return leg |
| Material and standards | |
| Material | HDPE-PPC |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Water, environmental pollutants, corrosive chemicals |
| Wash-Down | Washable and suitable for disinfection |
| Food Contact | Food-grade material; certification available on request |
| Handling and freight | |
| Net Weight | 70.55 lb (32 ± 0.5 kg) |
| Handling | Forklift, reach truck, hand pallet jack |
| Truck Load | 320 pcs per jumbo trailer, folded |
| Container Load (40 HC) | 250 pcs, folded |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed or embossed |
| Logo Insert Areas | Centre leg 145 × 45 mm |
| RFID | Transponder integration available |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All bulk containers
9 models ranked by capacity.
9 models ranked by static load.
8 models ranked by stacking load.
A rigid box comes back as air. A nestable one comes back stacked. This one comes back folded, and takes up 80% less space on the return leg.
That is the whole case for it. If your boxes go out full and come back empty over any distance, the folded return is where the money is.
The drawing measures the top at 1200 × 1000 mm and the pallet base at 1186 × 986, so the base sits about 7 mm inside the sleeve on each edge. It puts the overall height at 1035 mm against the specified 1020. Dimensions carry a ±5 mm production tolerance.
All three assume an evenly distributed load. The stacking figure comes from the datasheet.
Two figures are in circulation for this box: 250 kg, which the datasheet gives, and 500. We publish 551 lb (250 kg), the lower figure, because overstating a load rating is the one error worth being careful about. If you need the higher figure, ask us and we will confirm it before you order.

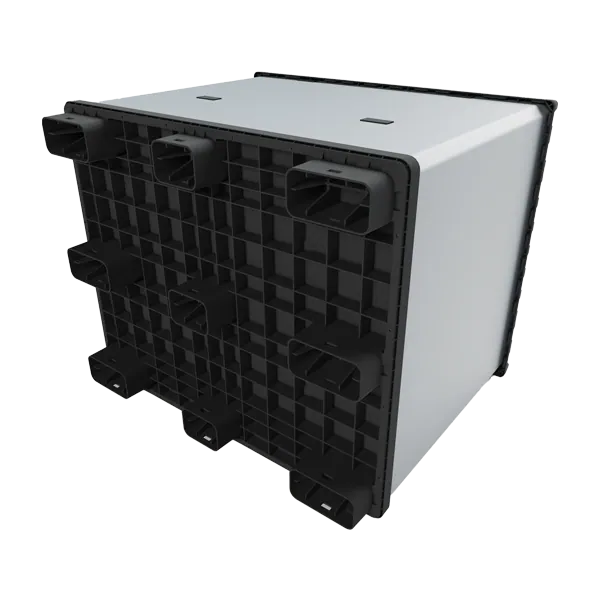

A nine-leg pallet base in black, a folding sleeve, and a lid. Material is HDPE-PPC, a polypropylene copolymer blend. Corners are rounded.
Handled with a forklift, reach truck or hand pallet jack. The material is food-grade.
We make no industry or conveyor claim for it, unlike the rigid boxes in this range, and have not borrowed theirs.
Washable and suitable for disinfection. Resistant to water, to airborne environmental pollutants and to corrosive chemicals. Rated −4 °F to +104 °F (−20 to +40 °C). A wider −40 to +60 °C range is sometimes quoted for this box, but the datasheet does not support it, so we do not publish it.
Logo printed or embossed, both offered, in a 145 × 45 mm panel on the centre leg. RFID transponders can be integrated. Supplied in grey, white, navy or blue, with other colours to order.
320 per jumbo trailer and 250 in a 40 ft high cube, shipped folded: assembled, 250 of them would need four times the space a container has. Ask us for an assembled figure if that is how they have to travel.
In this film
Answered from the CB-191’s published specification. Anything else, ask on the quotation and it is answered in writing.
1,102 lb (500 kg) static and 551 lb (250 kg) dynamic. Stacking load 1,102 lb (500 kg). Ratings assume an evenly distributed load.
238 US gal (900 L). Inside dimensions 44.49 × 36.22 × 34.25 in (1130 × 920 × 870 mm).
47.24 × 39.37 × 40.16 in (1200 × 1000 × 1020 mm). As moulded: Drawing: pallet base 1186 × 986 mm, overall height 1035 mm, against the nominal 1200 × 1000 × 1020. Dimensional tolerance ± 5 mm.
70.55 lb (32 ± 0.5 kg) net.
HDPE-PPC. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to water, environmental pollutants, corrosive chemicals. Food-grade material; certification available on request. Washable and suitable for disinfection.
320 pcs per jumbo trailer, folded. 250 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed or embossed. Insert areas: Centre leg 145 × 45 mm. RFID: transponder integration available.
Yes. The CB-191 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
