Stocked in North York, ON
RC-14247.24 × 39.37 × 30.31 in (1200 × 1000 × 770 mm)
The RC-142 is the ventilated 30 in box: the same 670 litre container as the RC-141, with the walls and the floor both perforated.
Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
Figures for the base build. 4 builds compared in the specification
| Size and load ratings | |
|---|---|
| Size | 47.24 × 39.37 × 30.31 in (1200 × 1000 × 770 mm) |
| Inside Dimensions | 44.09 × 36.22 × 24.21 in (1120 × 920 × 615 mm) |
| Capacity | 177 US gal (670 L) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 9,921 lb (4,500 kg) |
| Dynamic Load | 1,102 lb (500 kg) |
| Racking Load | 1,102 lb (500 kg) on the runner builds |
| Stacking Load | 9,921 lb (4,500 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Bottom Type | 4-Leg (snap-on) |
| Construction | Perforated wall and floor panels, square rib lattice under the base, rounded corners; 730 mm box on a 40 mm snap-on base |
| Wall Type | Perforated walls and floor |
| Base Openings | 890 mm clear on the long side, 690 mm on the short, between four 155 mm corner feet |
| Base Advantage | Castor option, shown on the datasheet |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Water, environmental pollutants, corrosive chemicals |
| Food Contact | Food-grade material; certification available on request |
| Handling and freight | |
| Net Weight | 74.96 lb (34 ± 0.5 kg) |
| Handling | Forklift, reach truck, hand pallet jack |
| Automation | Adapts to automatic conveying systems |
| Application | Food industry, agriculture, industrial production |
| Truck Load | 104 pcs per jumbo trailer |
| Container Load (40 HC) | 84 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed or embossed |
| Logo Insert Areas | Long side 88 × 128 mm |
Four legs selected. SKU RC-142.
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All bulk containers
9 models ranked by capacity.
9 models ranked by static load.
8 models ranked by stacking load.
Air moves through the load from every side and from underneath. That matters for produce that respires or sheds field heat, for anything washed and left to drain, and anywhere a load would sweat inside a closed box.
It costs nothing structurally. Every rating is identical to the closed RC-141, and the perforation takes 4.41 lb off each build.
The trade is the obvious one: fines, powders and small loose parts will escape. If that is your load, take the closed RC-141.

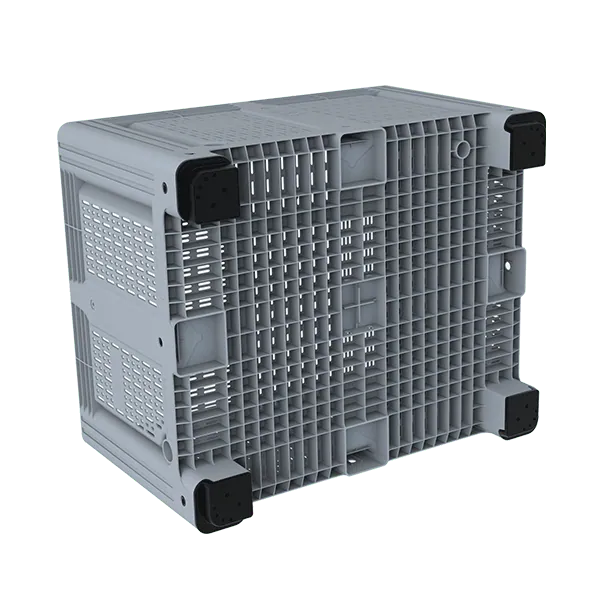

The base snaps on, and it changes the height, the weight and whether the box can go on beams:
offered with a castor option.
access from all four sides**.
rack-capable at 1,102 lb (500 kg).
and the heaviest of the four.

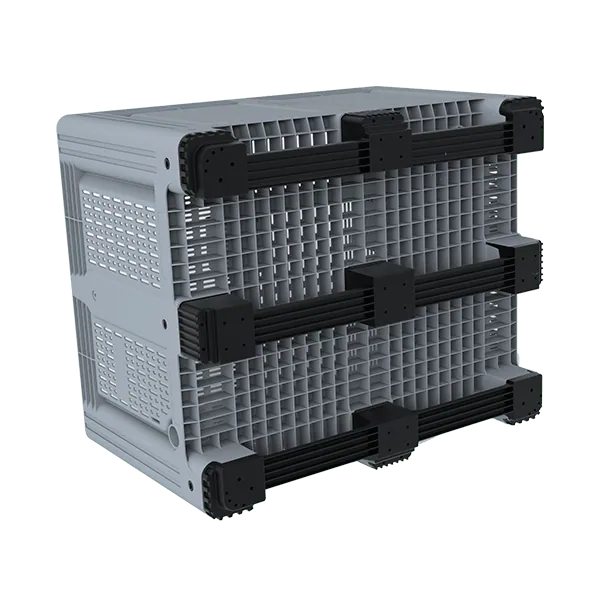

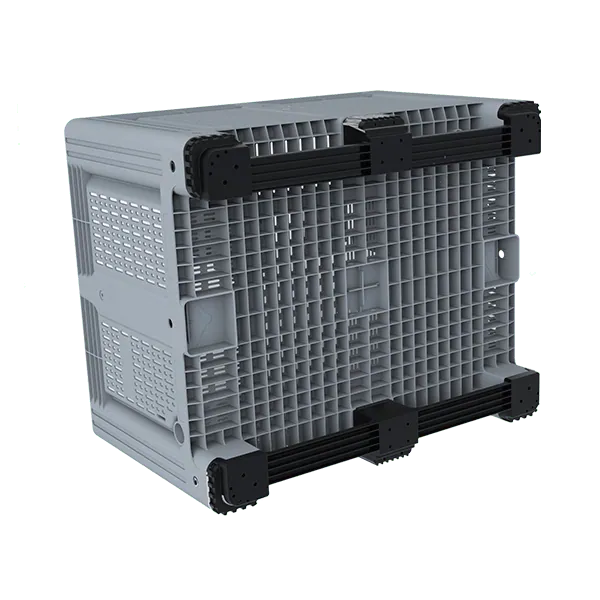

The runners sit under the feet and add 20 mm to the overall height.
31.10 in (790 mm) on runners

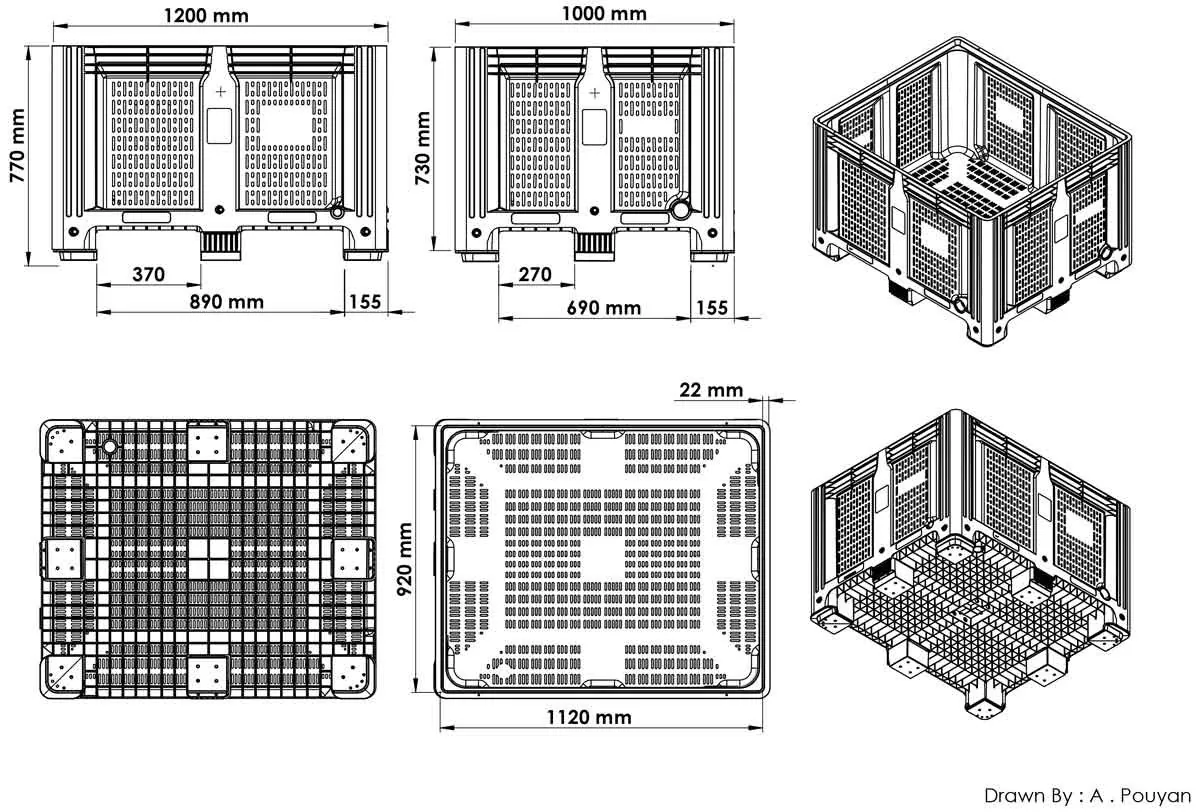

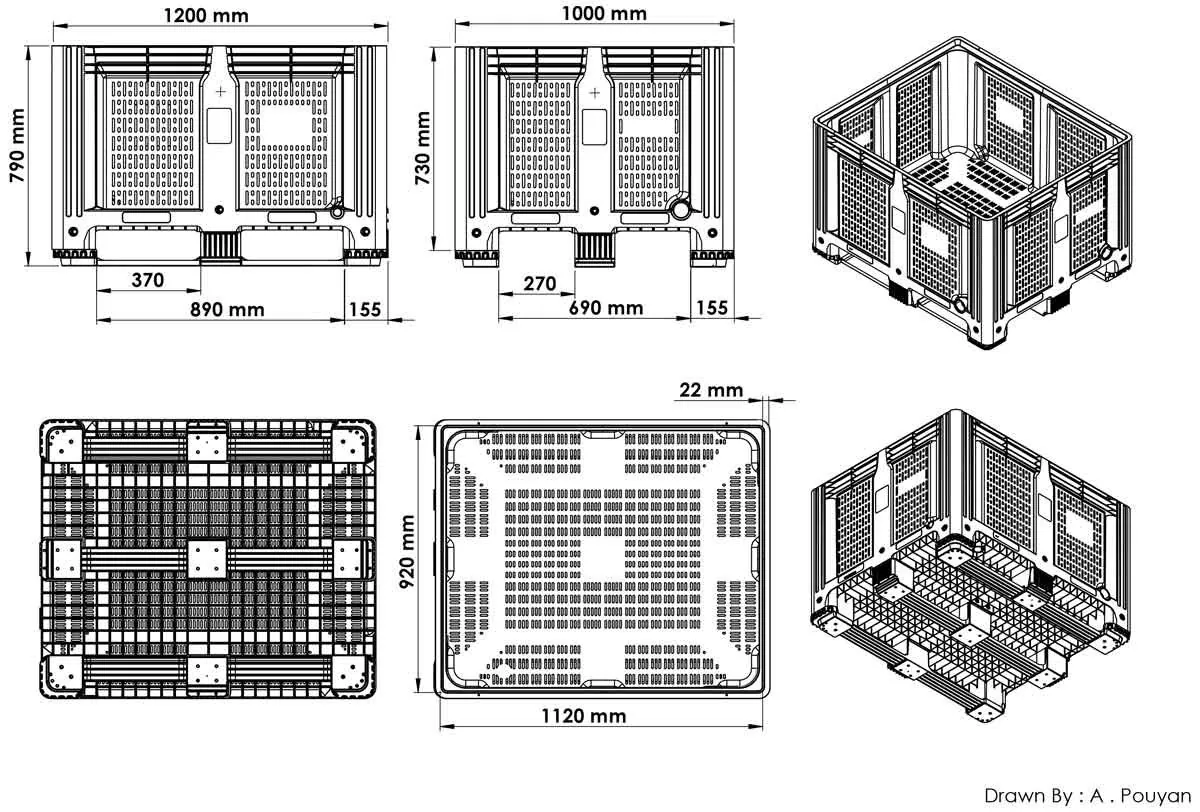

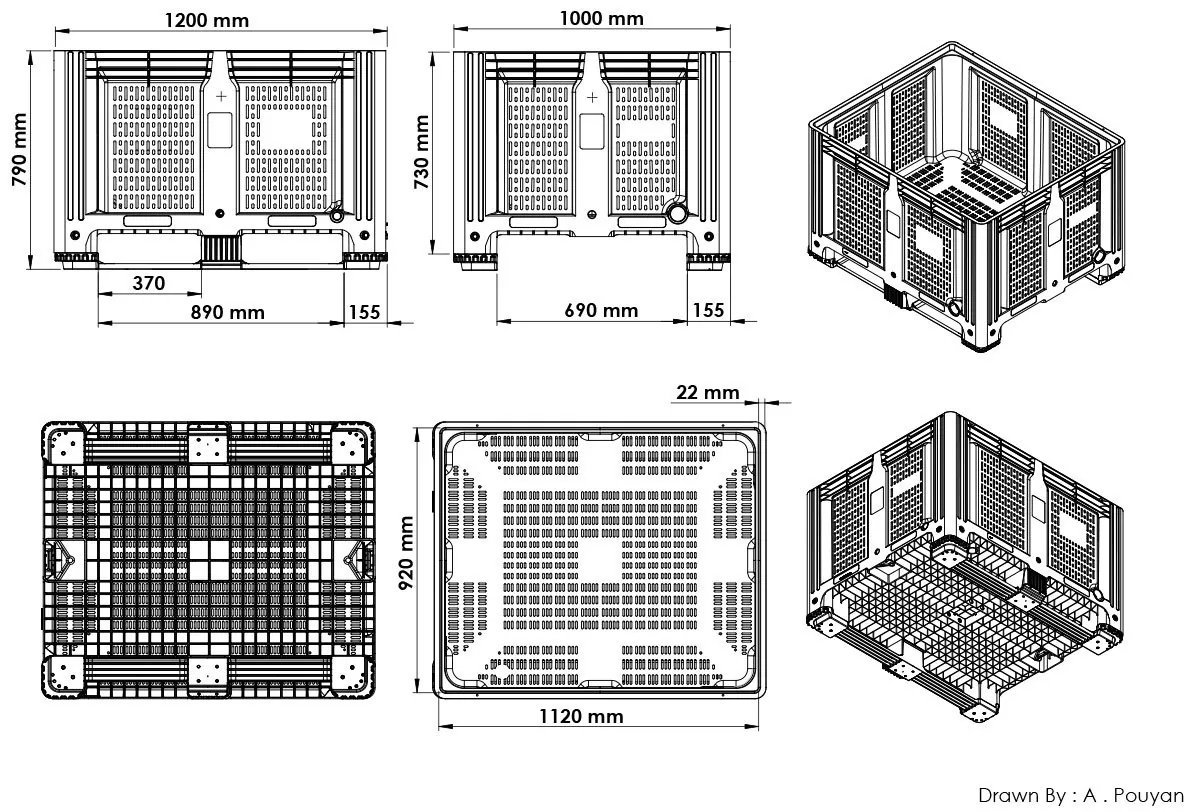

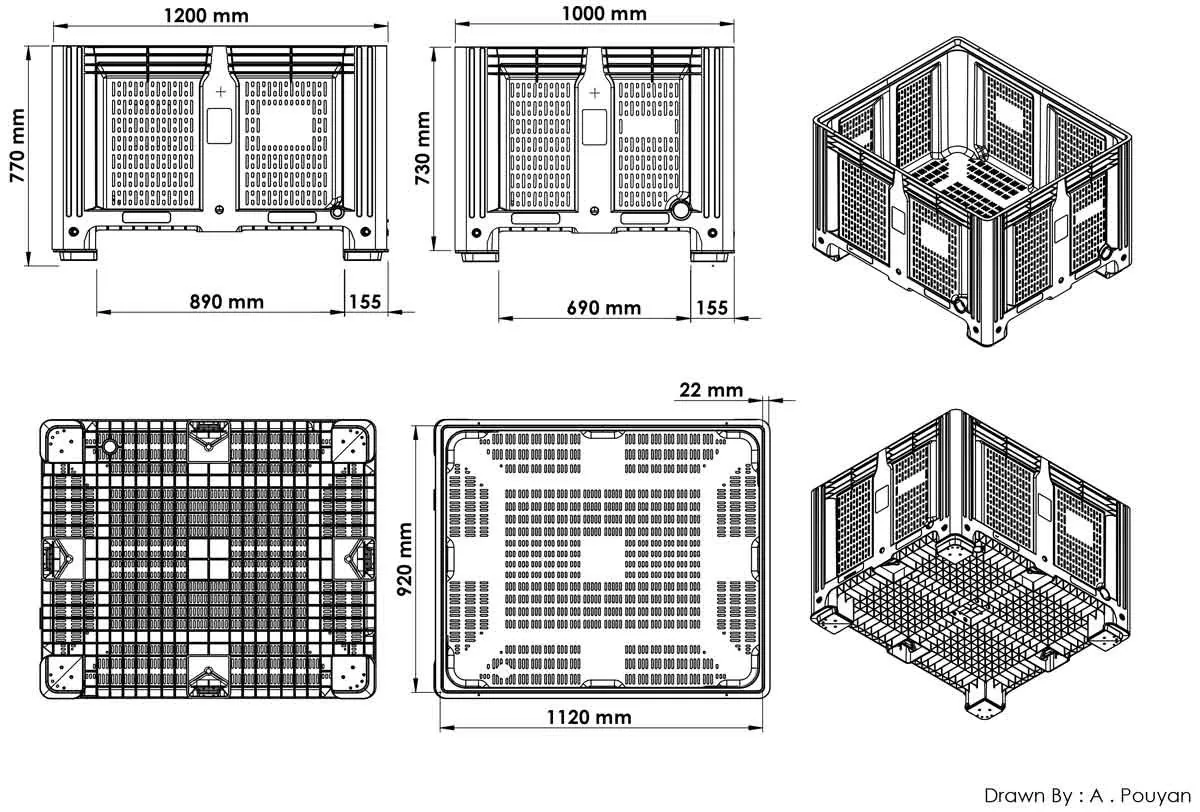

The drawings put the box itself at 730 mm on every build, so the base structure is 40 mm on legs and 60 mm on runners. Dimensions carry a ±5 mm production tolerance.
All assume an evenly distributed load. The stacking figure comes from the datasheets.
The four bases differ sharply, and the numbers come straight off the drawings:
the long side and 690 mm across the short**. The most open base here.
those into 370 mm and 270 mm openings.
clear across the short.
Walls and floor are both perforated, as the datasheets state in those words. Corners are rounded. The underside is a square rib lattice with the base panels slotted through.
Vegetables, fresh and dried fruit, nuts, small parts and bulk goods, across the food industry, agriculture and industrial production. It adapts very well to automatic conveying systems, and the material is food-grade.
Handled with a forklift, reach truck or hand pallet jack.
Logo printed or embossed, both offered, in an 88 × 128 mm panel on the long side. Supplied in grey, white, navy or blue, with other colours to order.
104 per jumbo trailer and 84 in a 40 ft high cube, the same on every build and the same as the closed box.
In this film
Answered from the RC-142’s published specification. Anything else, ask on the quotation and it is answered in writing.
9,921 lb (4,500 kg) static and 1,102 lb (500 kg) dynamic, with 1,102 lb (500 kg) on the runner builds in racking. Stacking load 9,921 lb (4,500 kg). Ratings assume an evenly distributed load.
It carries a published racking load of 1,102 lb (500 kg) on the runner builds.
177 US gal (670 L). Inside dimensions 44.09 × 36.22 × 24.21 in (1120 × 920 × 615 mm).
47.24 × 39.37 × 30.31 in (1200 × 1000 × 770 mm). Dimensional tolerance ± 5 mm.
74.96 lb (34 ± 0.5 kg) net.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to water, environmental pollutants, corrosive chemicals. Food-grade material; certification available on request.
104 pcs per jumbo trailer. 84 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed or embossed. Insert areas: Long side 88 × 128 mm.
Yes. The RC-142 datasheet is a PDF on this page with the full specification table and the load figures. Each of the 4 builds has its own sheet; choose the build to download the matching one.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
