Stocked in North York, ON
CB-23147.24 × 31.50 × 35.43 in (1200 × 800 × 900 mm)
The CB-231 is the 47×31 collapsible bulk container: a three-runner pallet base, a folding sleeve and a lid, on the smaller Euro footprint.
Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 47.24 × 31.50 × 35.43 in (1200 × 800 × 900 mm) |
| As-Moulded Size | Height 900 mm on the datasheet; the drawing dimensions it at 915 mm |
| Inside Dimensions | 46.46 × 30.71 × 29.53 in (1180 × 780 × 750 mm) |
| Capacity | 170 US gal (643 L) |
| Dimensional Tolerance | ± 5 mm |
| Static Load | 2,756 lb (1,250 kg) |
| Dynamic Load | 1,323 lb (600 kg) |
| Racking Load | 1,323 lb (600 kg) |
| Stacking Load | 2,756 lb (1,250 kg) |
| Load Basis | Ratings assume an evenly distributed load |
| Construction | |
| Bottom Type | 3-Runner |
| Construction | Three-runner pallet base, folding sleeve and lid; rounded corners |
| Wall Type | Folding sleeve |
| Collapsing | Sleeve folds onto the base in a few steps; 80% less space on the return leg |
| Material and standards | |
| Material | PP |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Water, environmental pollutants, corrosive chemicals |
| Wash-Down | Washable and suitable for disinfection |
| Food Contact | Food-grade material; certification available on request |
| Handling and freight | |
| Net Weight | 73.85 lb (33.5 ± 0.5 kg) |
| Handling | Forklift, reach truck, hand pallet jack |
| Application | Food and pharmaceutical industries |
| Truck Load | 297 pcs per jumbo trailer, folded |
| Container Load (40 HC) | 216 pcs, folded |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Printed or embossed |
| Logo Insert Areas | Centre leg 180 × 25 mm |
| RFID | Transponder integration available |
Ranked on the figures these products are bought on. Every model on the scale is a link, so if this one falls short on a number, the ones that clear it are a click away. Figures as published. All bulk containers
9 models ranked by capacity.
9 models ranked by static load.
8 models ranked by stacking load.
It is the more capable of the two collapsibles despite the smaller footprint:
If the container is going on beams, this is the collapsible to ask about.

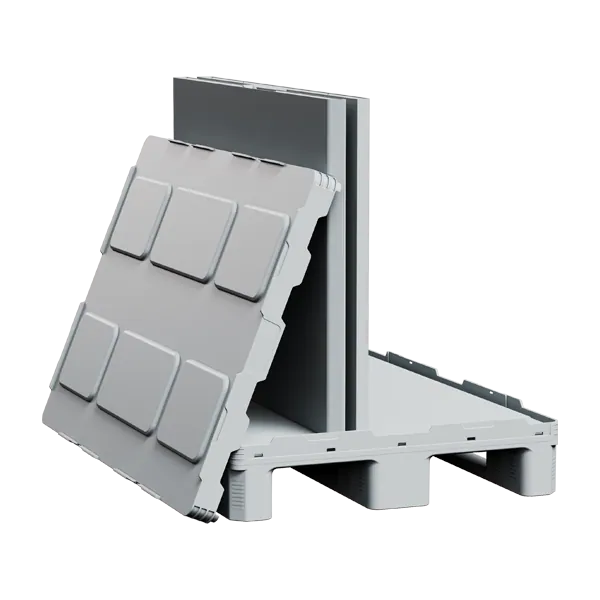

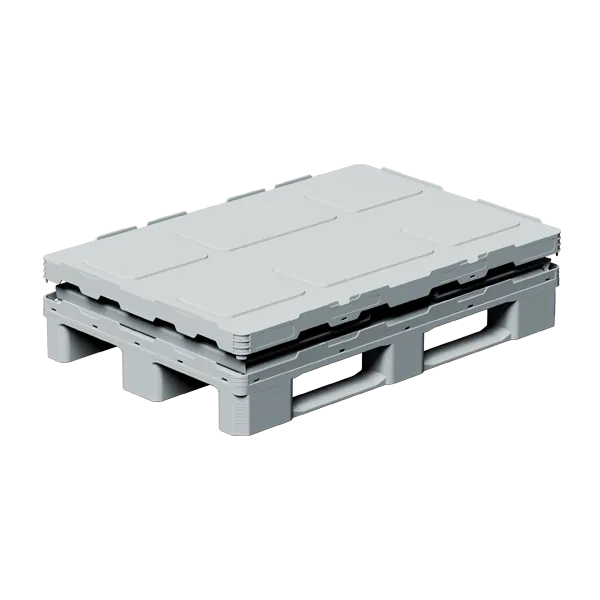

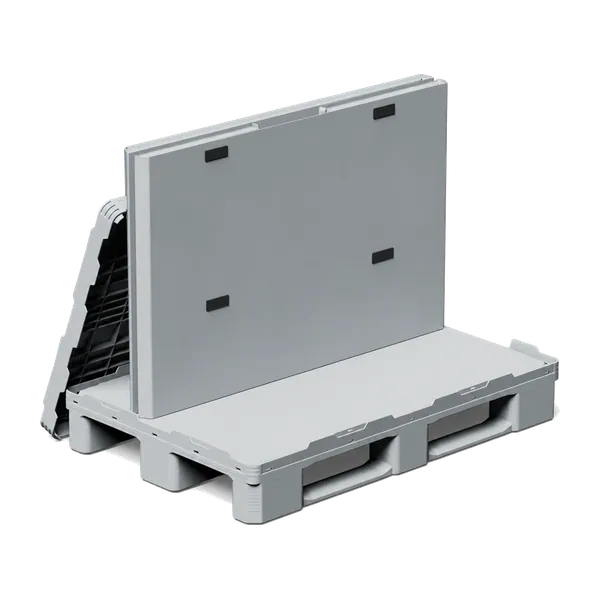

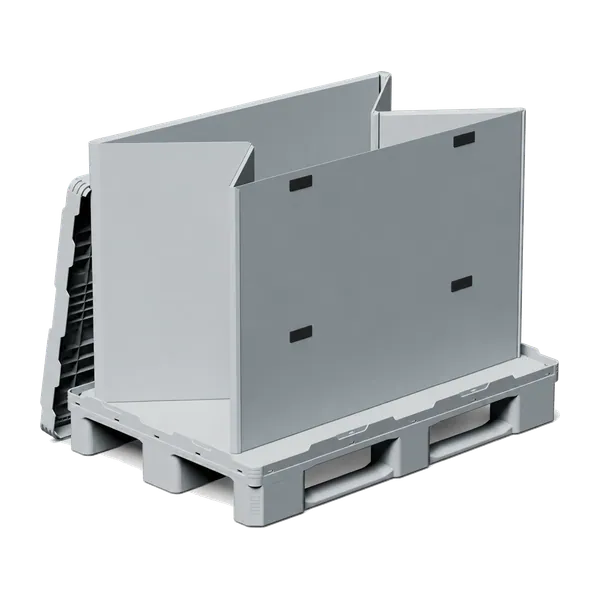

The sleeve folds down onto the pallet base in a few steps, taking 80% less space, so an empty comes back as a flat stack rather than as air.
Dimensions carry a ±5 mm production tolerance.

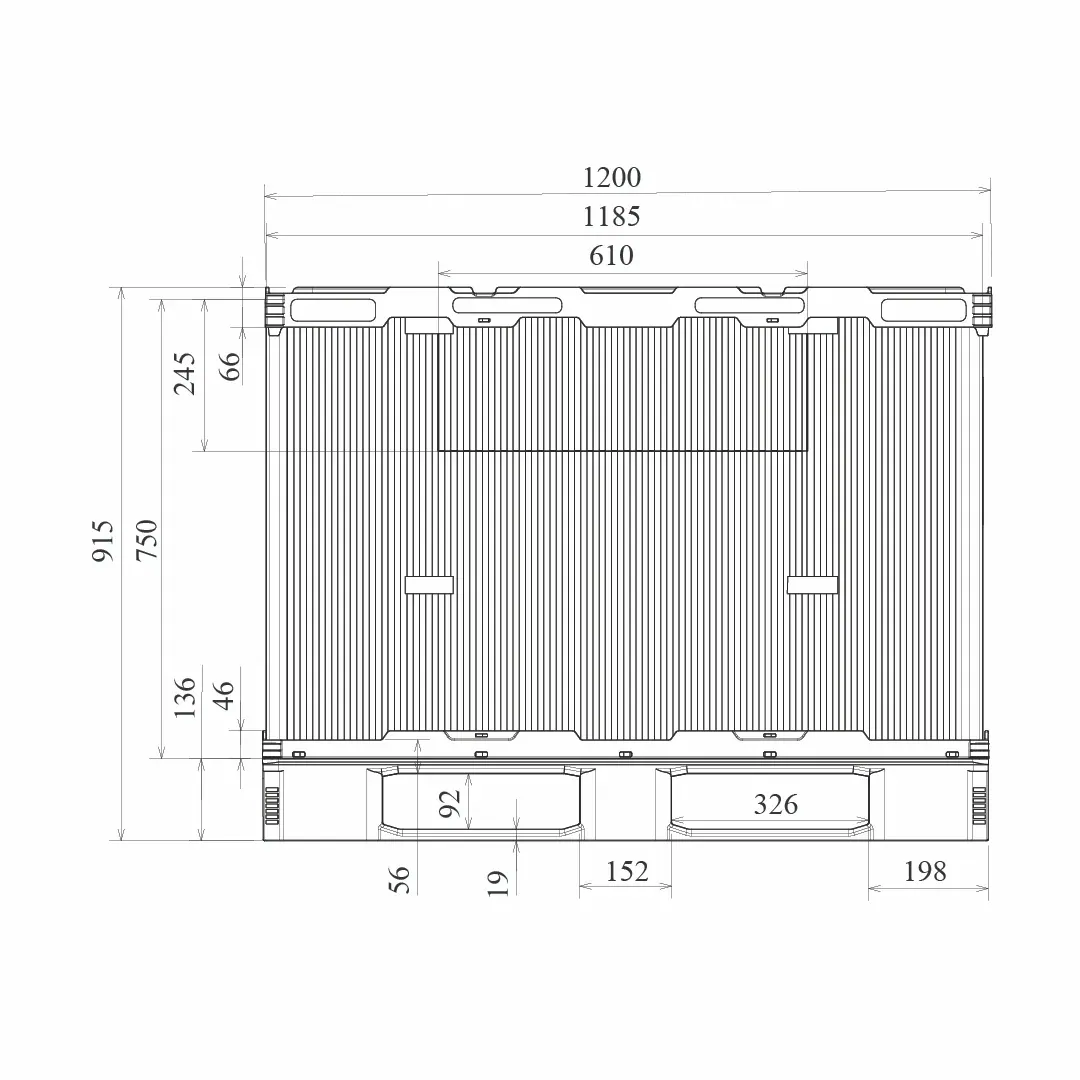

A note on the height. You may see this box listed at 920 or 915 mm. We publish 900 mm, the datasheet height, which the inside dimensions and capacity above also come from. If a bay is tight, ask us and we will measure one.
All assume an evenly distributed load. The static load is sometimes given as "less than 1 ton"; the datasheet says 1,250 kg, and we publish the specific figure.

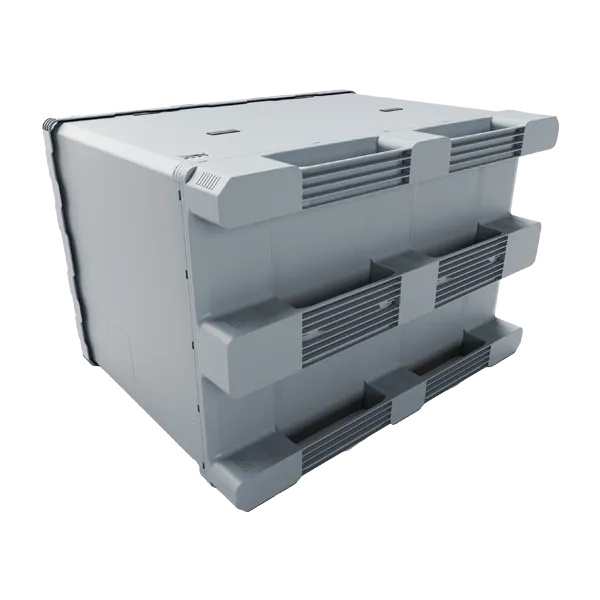

A three-runner pallet base, a folding sleeve and a lid. Material is polypropylene. Corners are rounded.
Three different maxima are in circulation for this box: +40 °C, +45 and +60. We publish −4 °F to +104 °F (−20 to +40 °C), the narrowest, so nothing here promises more than the most cautious figure. If you are running above +104 °F, ask us and we will confirm.
It is suited to the food and pharmaceutical industries, for a plain reason: the box has a hygienic pallet as its base. The material is food-grade.
Handled with a forklift, reach truck or hand pallet jack.
Washable and suitable for disinfection. Resistant to water, to airborne environmental pollutants and to corrosive chemicals.
Logo printed or embossed, both offered, in a 180 × 25 mm panel on the centre leg. Supplied in grey, white, navy or blue, with other colours to order.
297 per jumbo trailer and 216 in a 40 ft high cube, shipped folded: assembled, 216 of them would need more than twice the space a container has. The two counts are sometimes printed the other way round, which would have the trailer carrying fewer than the container; the order here is the right way round.
In this film
Answered from the CB-231’s published specification. Anything else, ask on the quotation and it is answered in writing.
2,756 lb (1,250 kg) static and 1,323 lb (600 kg) dynamic, with 1,323 lb (600 kg) in racking. Stacking load 2,756 lb (1,250 kg). Ratings assume an evenly distributed load.
It carries a published racking load of 1,323 lb (600 kg).
170 US gal (643 L). Inside dimensions 46.46 × 30.71 × 29.53 in (1180 × 780 × 750 mm).
47.24 × 31.50 × 35.43 in (1200 × 800 × 900 mm). As moulded: Height 900 mm on the datasheet; the drawing dimensions it at 915 mm. Dimensional tolerance ± 5 mm.
73.85 lb (33.5 ± 0.5 kg) net.
PP. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to water, environmental pollutants, corrosive chemicals. Food-grade material; certification available on request. Washable and suitable for disinfection.
297 pcs per jumbo trailer, folded. 216 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: printed or embossed. Insert areas: Centre leg 180 × 25 mm. RFID: transponder integration available.
Yes. The CB-231 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
