Stocked in North York, ON
AC-10147.64 × 39.76 × 1.57 in (1210 × 1010 × 40 mm)

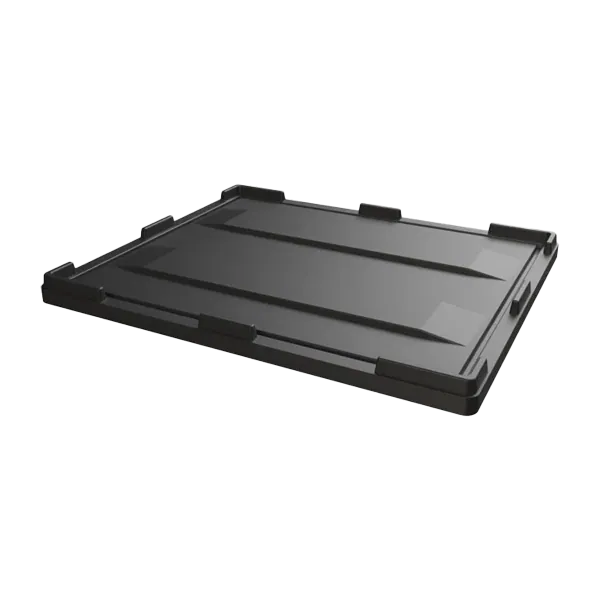

The AC-101 is the lid for the 48×40 bulk containers: a single moulded cover that sits over the full opening rather than a partial cap.
Reconstructed from the manufacturer’s own reference renders, built to the published metric dimensions and checked against them before it was rendered: close on form and exact on footprint, not a copy of their CAD. For rib profiles and tolerances, use the technical drawing.
Written within 24 hours, priced for your volume in CAD or USD, shipped from North York, ON.
No obligation. We reply with a written quotation, not a sales call.
| Size and load ratings | |
|---|---|
| Size | 47.64 × 39.76 × 1.57 in (1210 × 1010 × 40 mm) |
| Inside Dimensions | 47.24 × 39.37 × 1.57 in (1200 × 1000 × 40 mm) |
| Dimensional Tolerance | ± 5 mm |
| Construction | |
| Construction | Single moulding covering the full container opening; integrated locking corners and moulded grooves for strapping |
| Material and standards | |
| Material | HDPE |
| Temperature Range | −4 to +104 °F (−20 to +40 °C) |
| Resistance | Water, environmental pollutants, corrosive chemicals |
| Wash-Down | Washable and suitable for disinfection |
| Handling and freight | |
| Net Weight | 16.53 lb (7.5 ± 0.5 kg) |
| Handling | Forklift, reach truck, hand pallet jack |
| Truck Load | 1,560 pcs per jumbo trailer |
| Container Load (40 HC) | 1,300 pcs |
| Colour and branding | |
| Colour | Grey, white, navy or blue; other colours on request |
| Branding | Embossed |
| RFID | Transponder integration available |
It reduces damage in transit by closing the box, and it is what makes a stacked column behave: the lid takes the container above it rather than the load below taking it.
Two details are worth knowing before you compare it with anything else:
relying on the load.
riding over its edge.
The outside is 10 mm larger each way than the inside, which is the lip that locates it over the container rim. Dimensions carry a ±5 mm production tolerance.

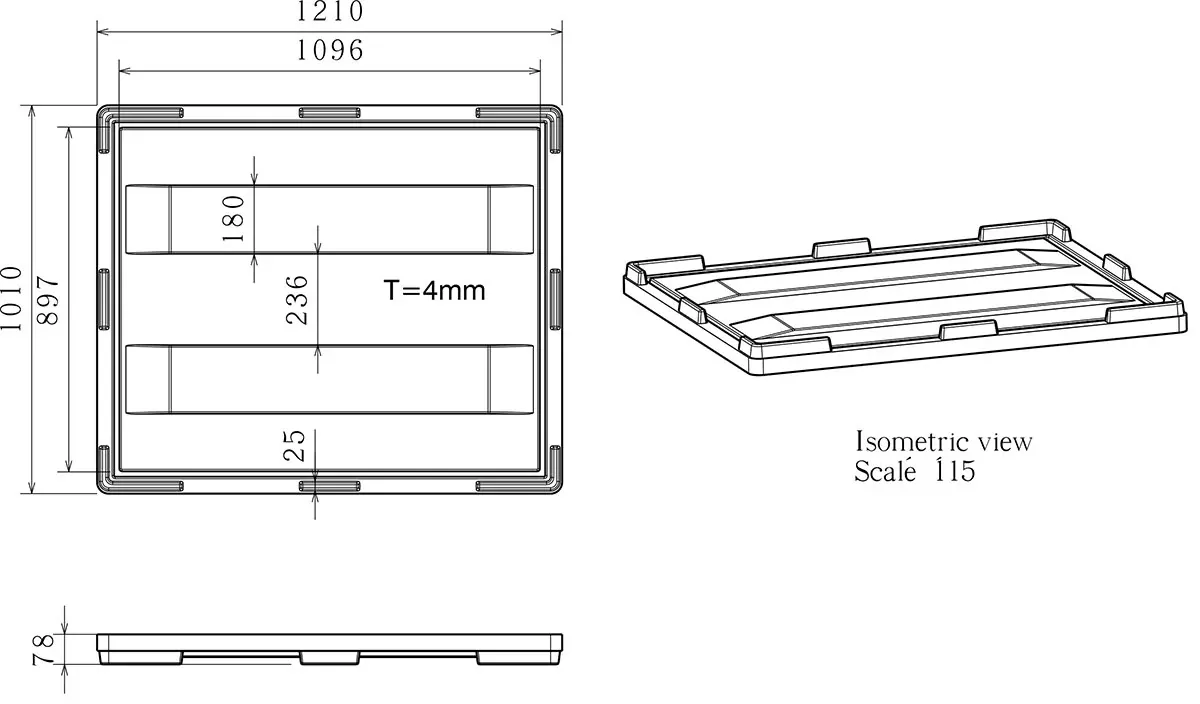

A note on the thickness. The specification and the datasheet both say 40 mm; the drawing dimensions the lid at 78 mm on its edge view. They are almost certainly measuring different things, the panel against the full moulding, and we publish the specification figure. Ask us if the stacked height matters to your plan.
A lid is rated by the container it closes. Use that container's figures, and ask us if you are stacking to the limit.
Washable and suitable for disinfection. Resistant to water, to airborne environmental pollutants and to corrosive chemicals. Rated −4 °F to +104 °F (−20 to +40 °C).
Logo embossed. Printing is sometimes listed for this lid, but the datasheet names embossing alone, so we publish the narrower of the two. RFID transponders can be integrated. Ask us for the insert size and we will confirm it. Supplied in grey, white, navy or blue, with other colours to order.
1,560 per jumbo trailer and 1,300 in a 40 ft high cube. Lids stack flat, which is why a trailer takes fifteen times as many of these as it does of the container they close.
Answered from the AC-101’s published specification. Anything else, ask on the quotation and it is answered in writing.
47.64 × 39.76 × 1.57 in (1210 × 1010 × 40 mm). Dimensional tolerance ± 5 mm.
16.53 lb (7.5 ± 0.5 kg) net.
HDPE. Rated for −4 to +104 °F (−20 to +40 °C). Resistant to water, environmental pollutants, corrosive chemicals. Washable and suitable for disinfection.
1,560 pcs per jumbo trailer. 1,300 pcs per 40 ft high-cube container.
Colours: Grey, white, navy or blue; other colours on request. Logo: embossed. RFID: transponder integration available.
Yes. The AC-101 datasheet is a PDF on this page with the full specification table and the load figures.
Prices are quoted, not listed, because they depend on volume, build and destination. A written quotation follows within 24 hours, in CAD or USD, shipped from North York, ON.
